Manaras Opera-H - Opera-H

38
4.2 Opera-H
Table 14 - Opera-H Replacement Components
No Qty Description
Manaras-Opera
Part #
No Qty Description
Manaras-Opera
Part #
1
2 5/8-18 HEX JAM NUT ZP NUT013
7
1
OPERA DISCONNECT FRICTION
BAND
SHOE011
2
1 CHAIN GUIDE OPERA GUIDE014
8
1 OPERA MOTOR PLATE PLATE078
3
1 CL.PAD 5/8x4x0.125" CLUTCHPAD005
9
1 PULLEY 7" x 5/8" 5L/B PULLEY020
4
1 DISCONNECT SWITCH SHOE SHOE010
10
1
PW ASSEMBLY (ROLLERS AND
CLIPS)
POCKETWHEEL007
5
1 DISCONNECT SWITCH SHOE A SHOE009
11
1
SYNTHETIC DISCONNECT CAM
OPERA
CAM017
6
1 OPERA CLUTCHPLATE CLUTCHPLATE006
1 CLUTCH & HOIST SHAFT KIT MOUNTSHAFT014
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

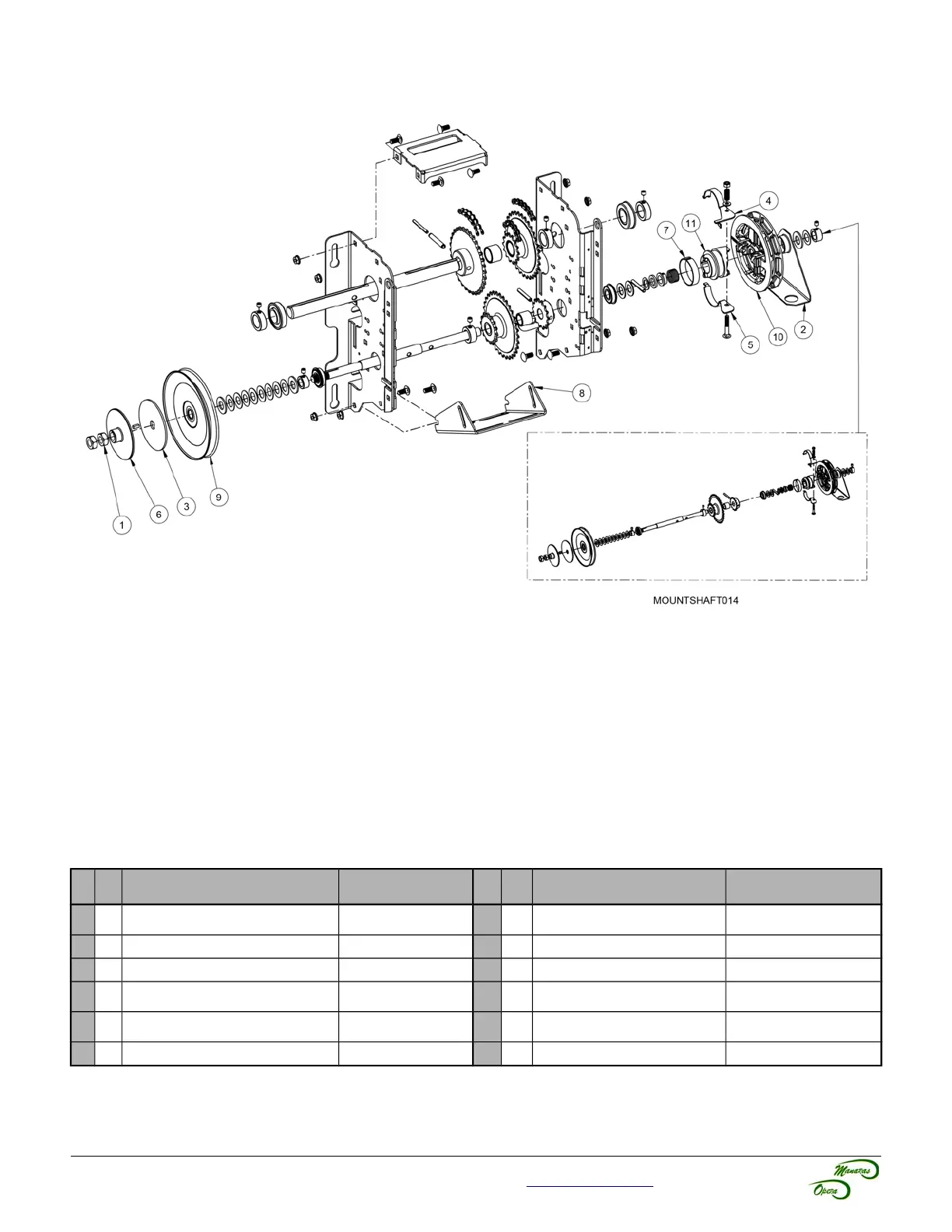

Figure 46 - Opera-H Mechanical Exploded View
