• The center contact is connected to terminals 11, 21.
• The relay contact 14, 24 = OK is energized in the good state.

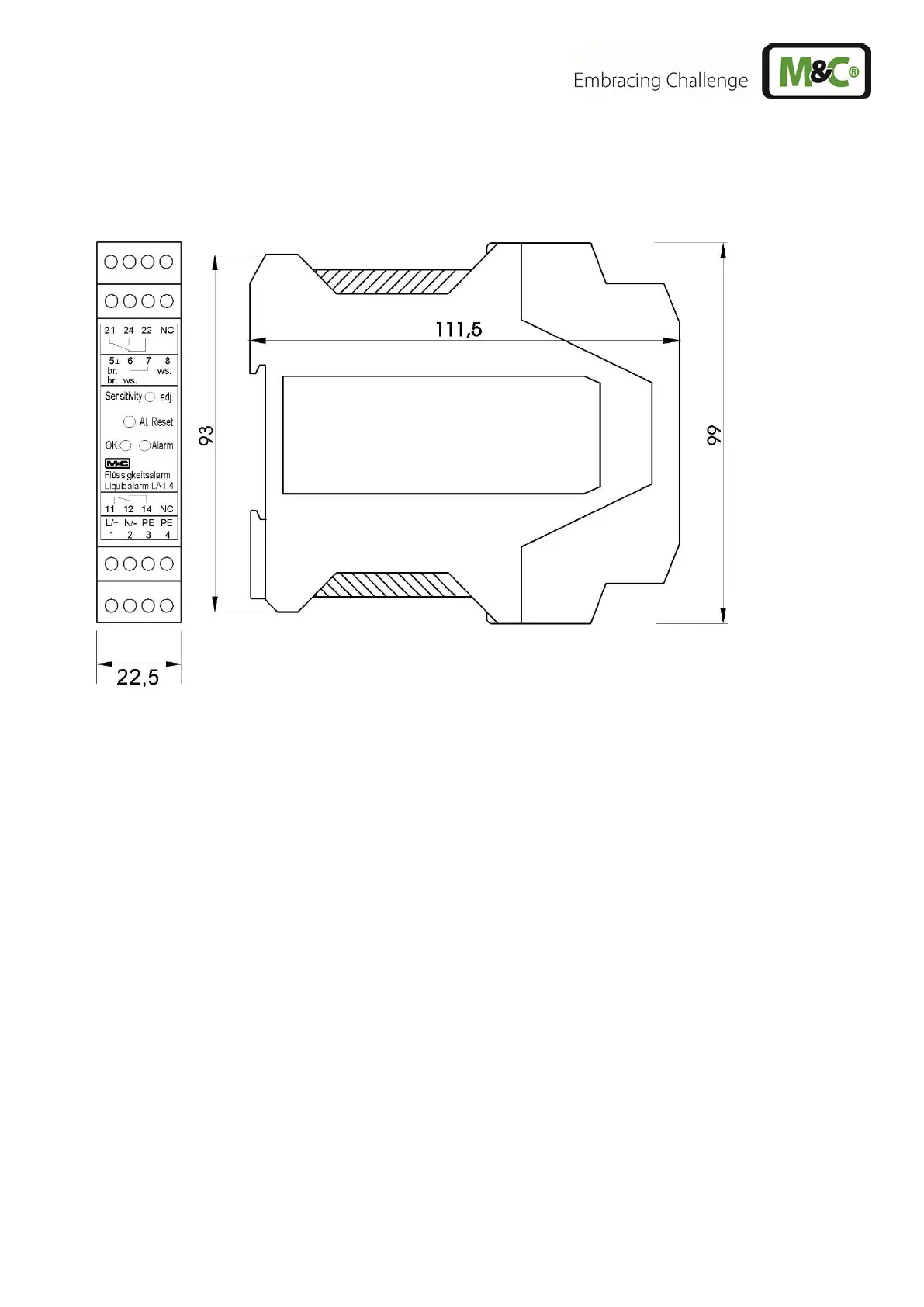

Figure 6 Electrical connection and dimensions LA1.4
