M&R Starlight A50 User Manual

M&R Companies 440 Medinah Rd. Roselle, IL 60172 USA 13
Tel: +630-858-6101 Fax: +630-858-6134 www.mrprint.com | store.mrprint.com
V.113017

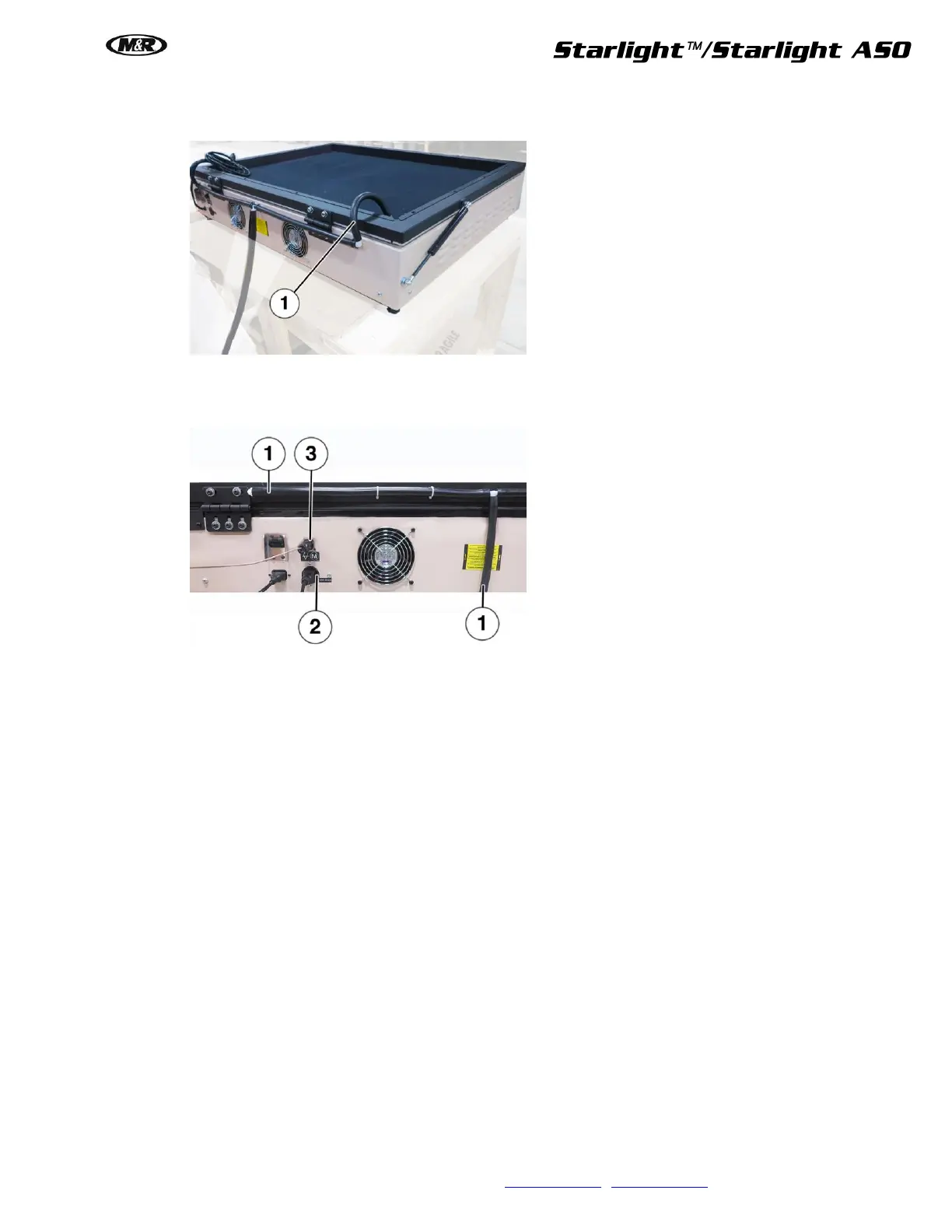

2. Attach both the vacuum hoses from the vacuum blanket to the barbed hose fittings (1) at the rear of the
unit.
3. Connect the vacuum tube to the barbed hose fitting (1) on the vacuum pump. Connect the electric power
cord from the vacuum pump to the receptacle (2) at the rear of the vacuum frame base. Connect the
cord from the pressure sensor to the receptacle (3) at the rear of the vacuum frame.
