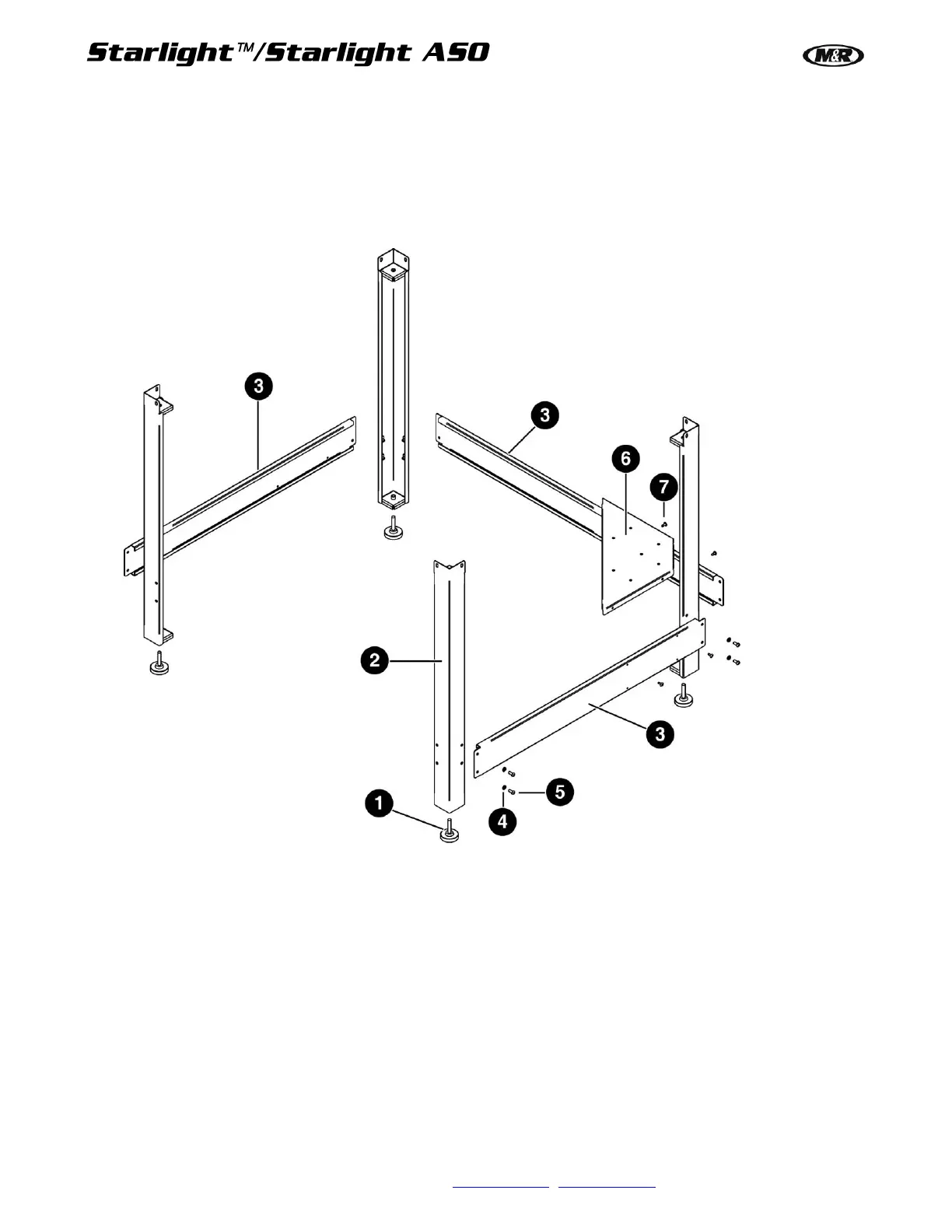

4.2 Assemble Optional Frame
1. Install Leveling Foot (1) in each leg (2).
2. Using a 5/32" hex wrench, assemble sides and back (3) to legs (2) using 1/4" lock washers (4) and 1/4 x
5/8" long button socket cap screws (5).
3. Install shelf (6) on the top of the side supports (3) using the four self-tapping screws (7).
