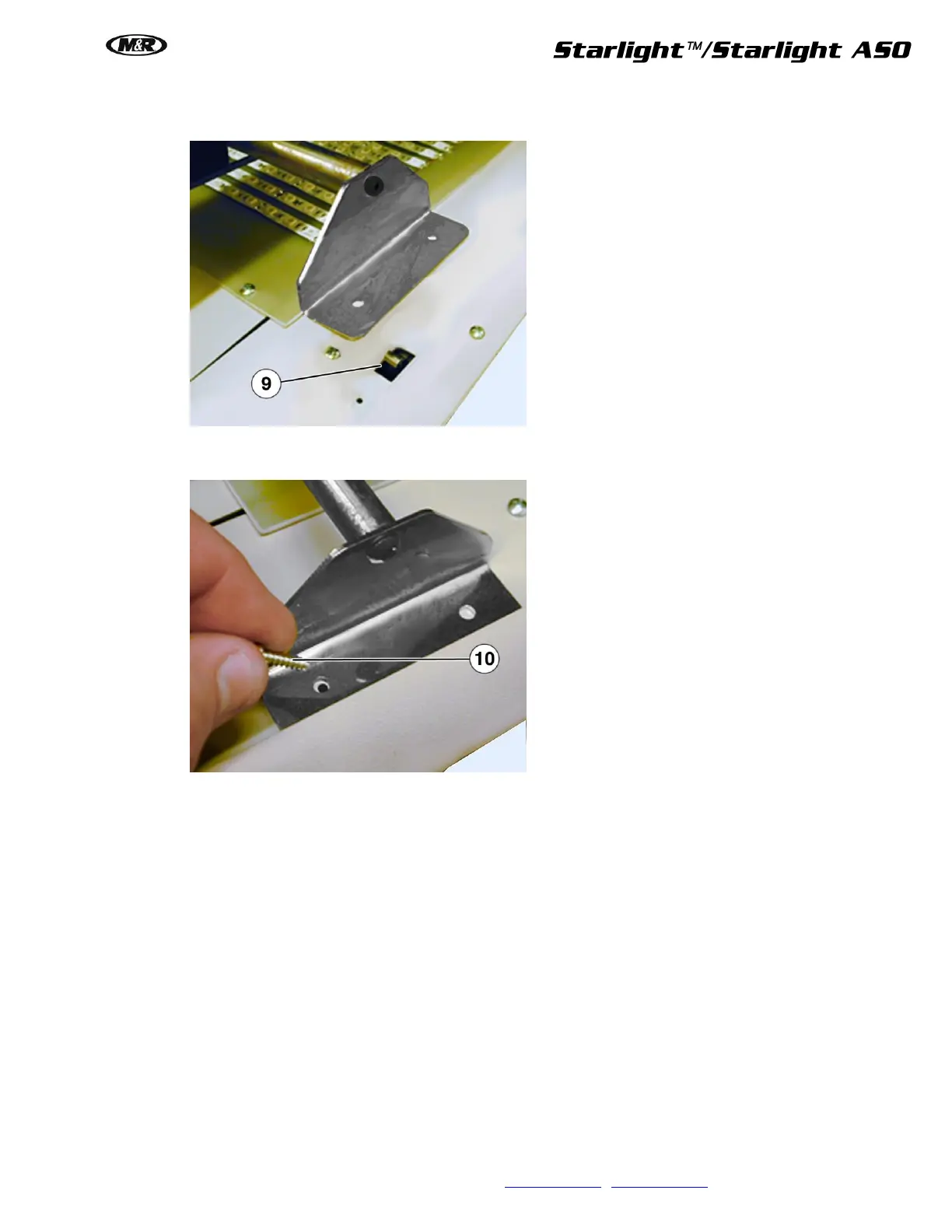

6. When setting the support frame into the chassis the front right corner depresses a sensor switch (9).
This changes the internal electronics to respond when the vacuum lid is opened.
7. There are holes pre-punched in each corner of the chassis. The support frame is secured using Self
Tapping Screws (10).
