D11 TIGHTENING THE BOLTS ON THE TURRET ORIENTATION CROWN GEAR
CHECK
- The tightness of the screws must be checked at the latest after 50 hours of operation. This
check must then be repeated every 500 hours of operation.
- The tightening torque for the screws is 27 daN.m ± 10 %.
- 1 daN = 1 Kg.
D12 BRAKING
CHECK

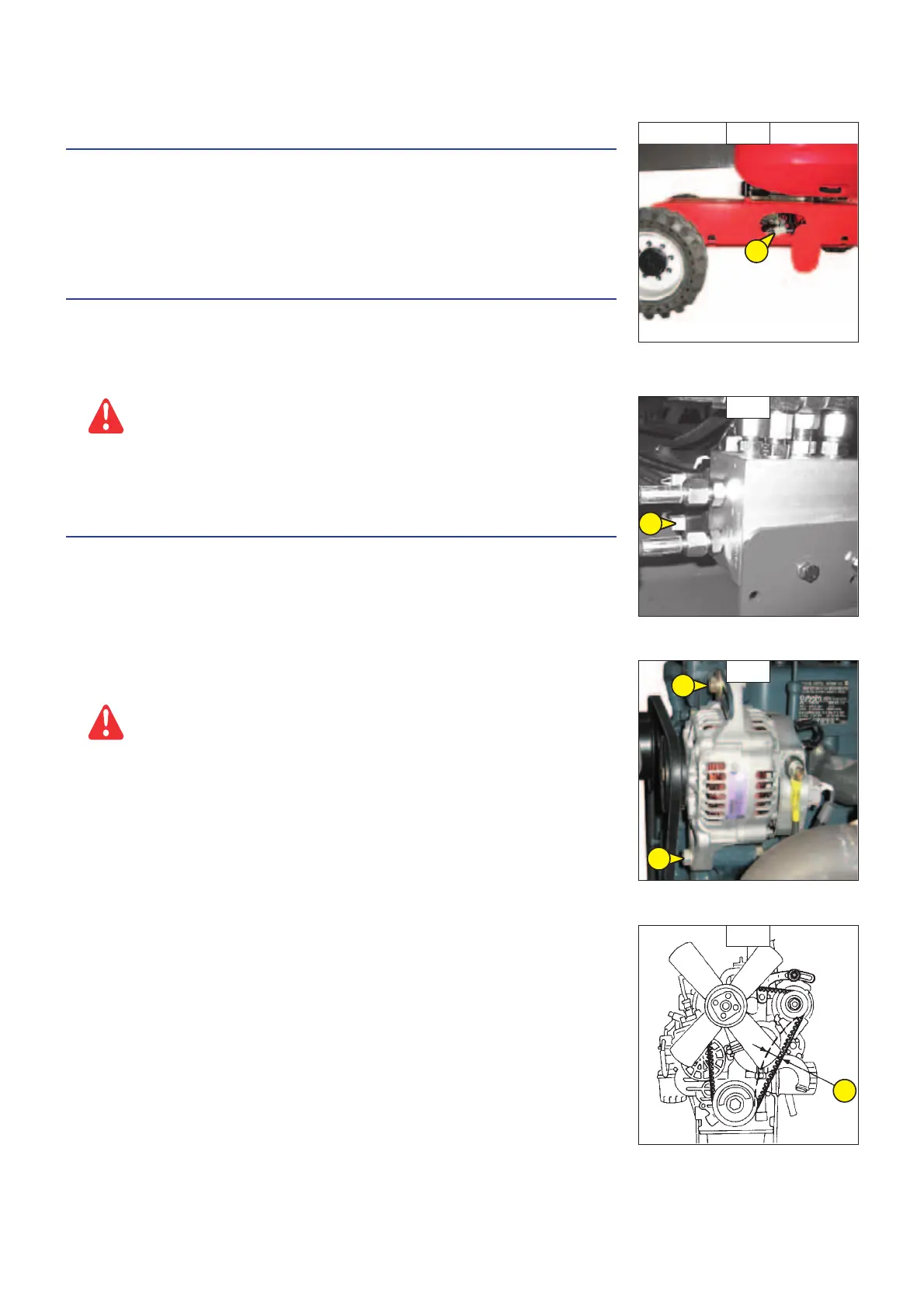

- Check the braking system by disconnecting the coil 1 (Fig. D12/1 and D12/2) from the hydraulic
block on the chassis (to access the block, remove the casing on the chassis’ right-hand side)
and make a translation movement.
The lifting platform must not move forward.
- After the test, reconnect the coil.
D13 ALTERNATOR/FAN/CRANKCASE BELT
REPLACE
- Open the left-hand cowl.
- Loosen the bolts 1 (fig. D13/1) two or three turns.
- Swivel the alternator assembly to free the belt and the replace it with a new one (see: 3 -
MAINTENANCE: FILTER ELEMENTS AND BELTS).
- Adjust the tension between the crankcase and alternator pulleys.
- Under thumb pressure (98 N), the tension should be 7 to 9 mm (Rep. A-Fig. D13/2)
- Retighten the bolts 1 (Fig. D13/1).
Recheck the belt tension after the first 20 hours of operation.
D12/2
D13/2
A
D13/1
1
1
D12/1
1
1
647414 EN (27/05/2015)
