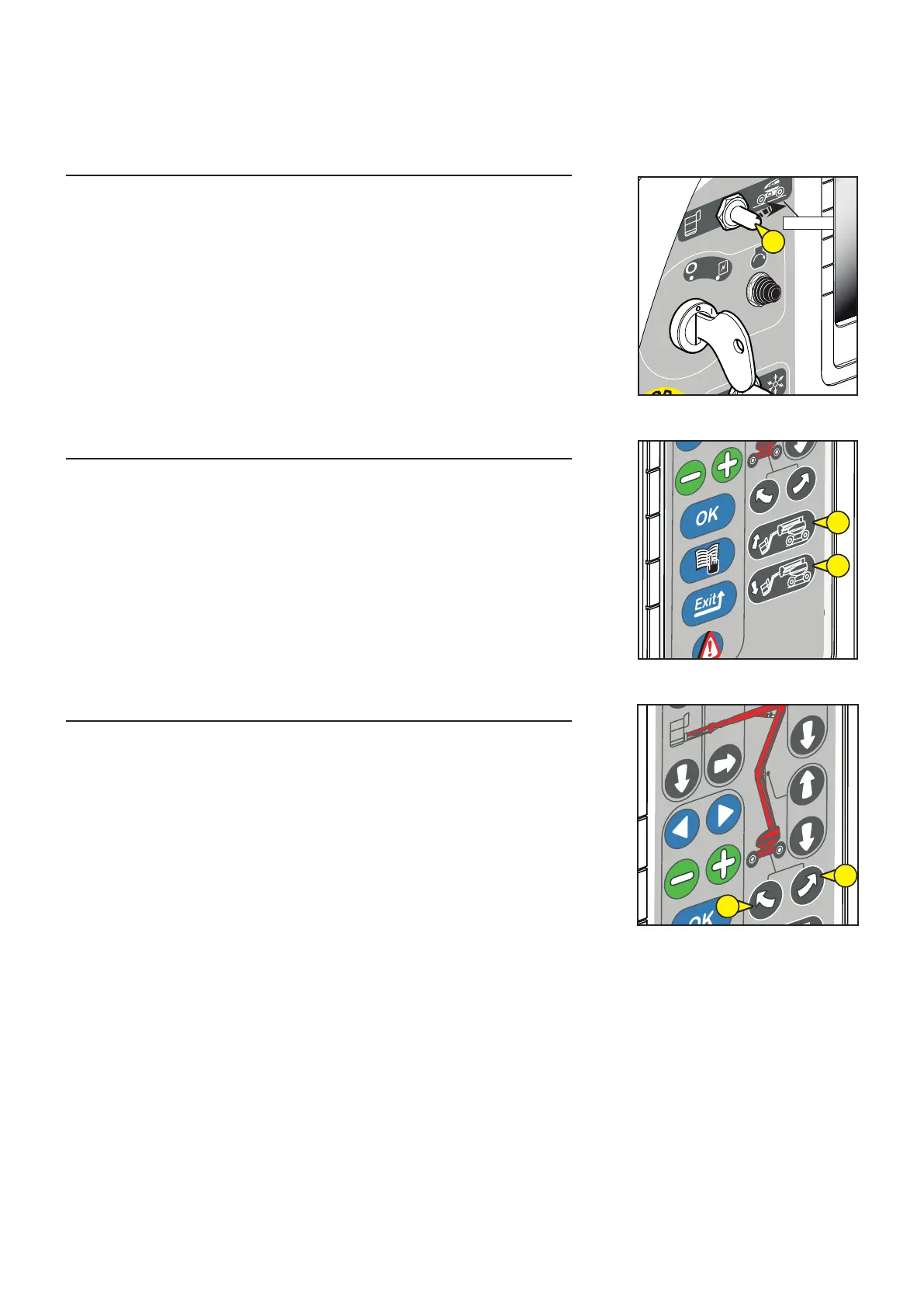

8 - “DEAD MAN’S” FUNCTION
- The button must be held down in the Dead Man’s position (position 2) to provide
power to the base control, at the same time as holding down the lifting and rotation
keys.
9 - BASKET TILT DOWN / TILT UP BUTTON
Using these keys at the same time as pressing button 8 to the Dead Man’s position,
control correction of the basket’s horizontality or the complete folding back of the
basket in Transport position.
9A : TILTING THE BASKET DOWNWARDS
- Hold down the Dead Man’s button 8 and press key 9A.
9B : TILTING THE BASKET UPWARDS
- Hold down the Dead Man’s button 8 and press key 9B.
10 - TURRET ROTATION KEYS
Using these keys at the same time as pressing button 8 to the Dead Man’s position,
enable you to rotate the turret.
10A : ROTATING THE TURRET LEFT
- Hold down the Dead Man’s button 8 and press key 10A.
10B : ROTATING THE TURRET RIGHT
- Hold down the Dead Man’s button 8 and press key 10B.
