Manitou 160 ATJ E3 - Lower Arms up down and Telescope Extension Retraction Control Lever; Upper Arm up down and Turret Rotation Control Lever

2-41
BASKET CONTROL STATION

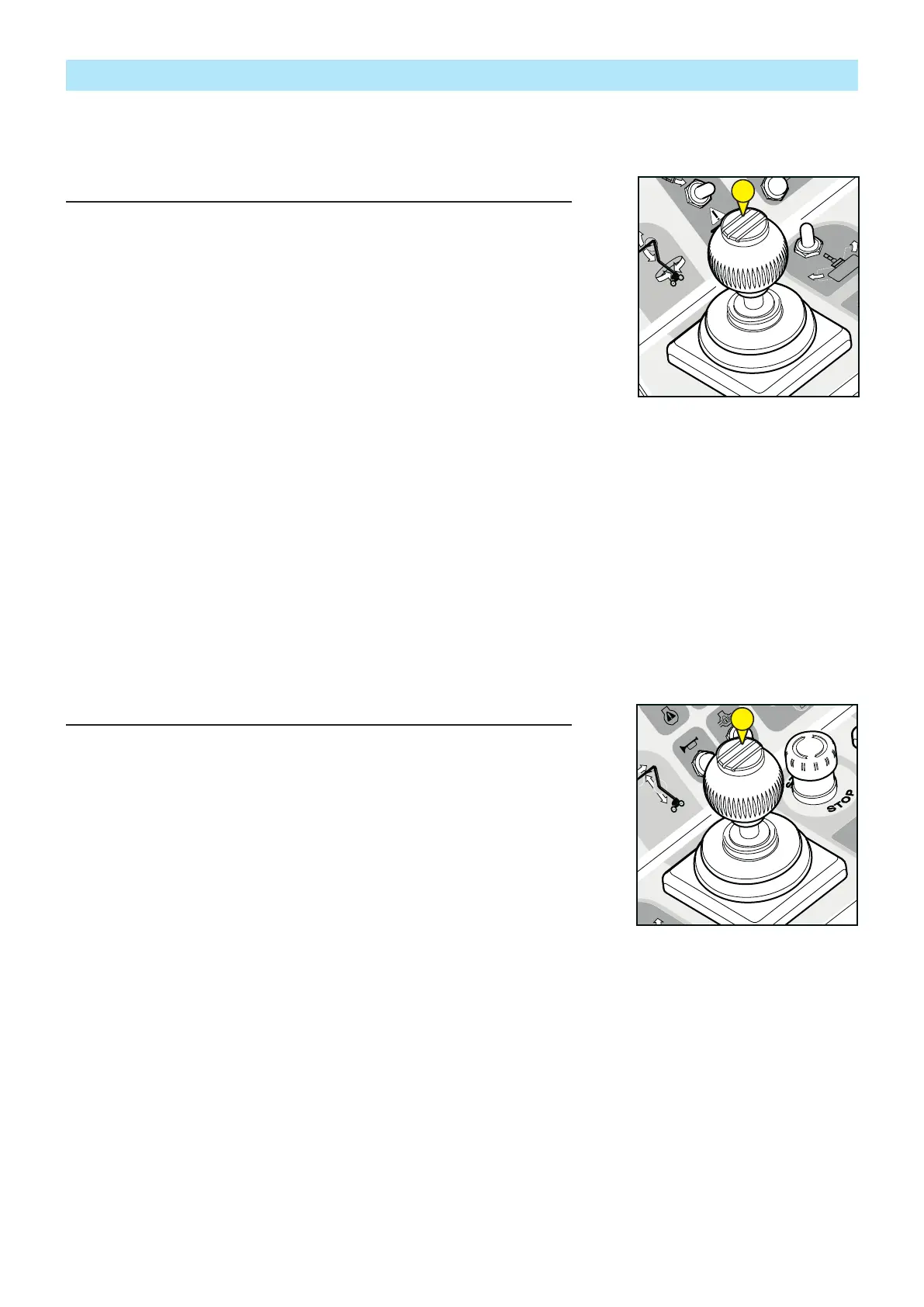

21 - UPPER ARM UP / DOWN AND TURRET ROTATION CONTROL LEVER
- Lever 21 enables you to raise the upper arm and rotate the turret.
NB: This is a progressive control lever, which provides you with great accuracy in
approach. It must be manipulated flexibly, without jerking.
RAISING THE UPPER ARM
- Push the lever upwards.
LOWERING THE UPPER ARM
- Pull the lever downwards.
ROTATING RIGHT
- Push the lever to the right.
ROTATING LEFT
- Push the lever to the left.
22 - LOWER ARMS UP / DOWN AND TELESCOPE EXTENSION / RETRACTION CONTROL LEVER
- Lever 22 enables you to raise the platform’s lower and intermediate arms and extend
and retract the telescope.
NB: This is a progressive control lever, which provides you with great accuracy in
approach. It must be manipulated flexibly, without jerking.
RAISING THE LOWER ARMS
- Push the lever upwards.
LOWERING THE LOWER ARMS
- Pull the lever downwards.
EXTENDING THE TELESCOPE
- Push the lever to the left.
RETRACTING THE TELESCOPE
- Push the lever to the right.
21
22
647414 EN (27/05/2015)
