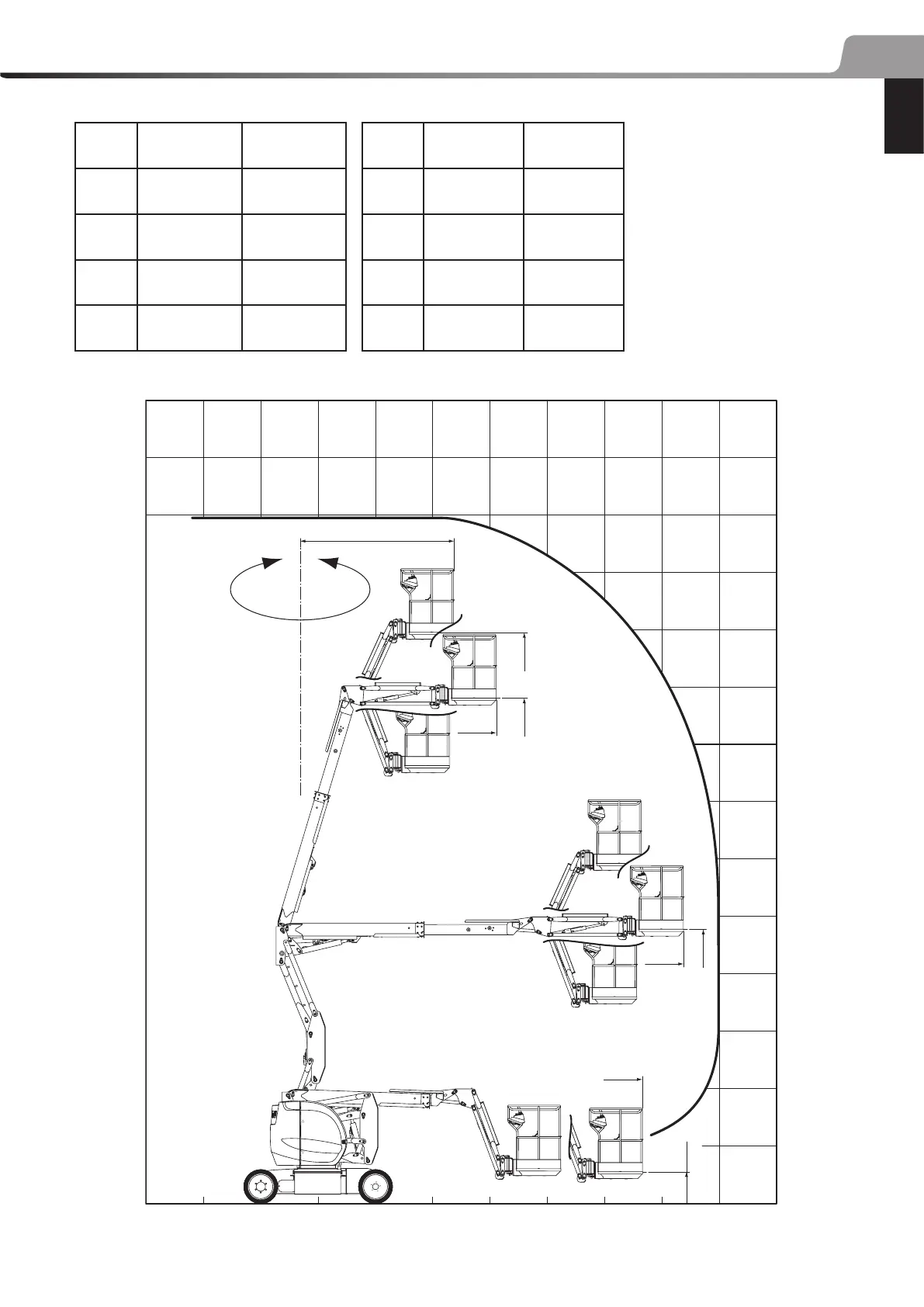

GENERAL CHARACTERISTICS AND SAFETY
547379EN
00 (08/03/2017)
00
mm ft-in mm ft-in
G1 2350 7-8.5 H1 9950 32-7.7
G2 3105 10-2.2 H2 8795 28-10.3
G3 6370 20-10.8 H3 4775 15-8.0
G4 5640 18-6.0 H4 545 1-9.5
G1
G2
H2 H1
G3
H3
G4
H4
