Manitou AETJ 49 - Page 232

91
ELECTRICITY
80
547379EN
80 (08/03/2017)
Installation procedure:
52501939.(150 AETJC, 150 AETJC 3D,150 AETJL, AETJ 43, AETJ 43 3D)
52501918. (170 AETJL, AETJ 49)
1
2
12 34
5678
12 34
5678

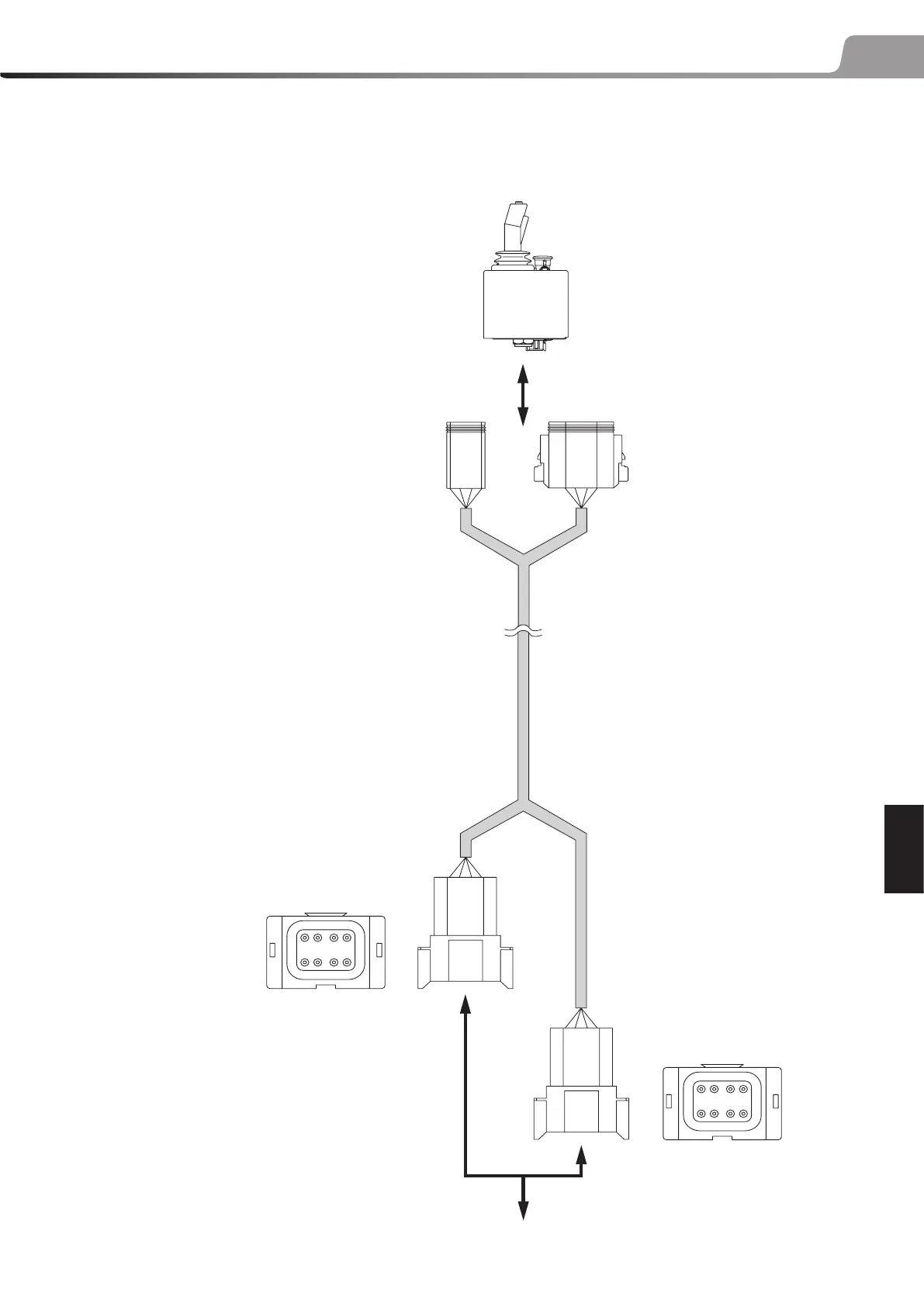

UPPER BUS CAN
EXTENSION HARNESS
52501939 (150 AETJC - 150 AETC 3D - 150 AETJL - AETJ 43 - AETJ 43 3D)
52501918. (170 AETJL - AETJ 49)
Ref. 2
To complete
basket console
Ref. 1
Pos.
1
2
3
4
5
6
7
8
9
10
11
12
Wire
112
113
135
137
333
103
106
123
336
337
319
332
Wire
338
400
401
402
Pos.
1
2
3
4
Pos. Wire
1 112
2 113
3 135
4 137
5 332
6 333
7 402
8 338
To lower BUS CAN
extension harness
Ref. 3
Pos. Wire
1 103
2 106
3 123
4 336
5 337
6 319
7 400
8 401
