Manitou AETJ 49 - Page 253

ELECTRICITY
112
80
547379EN
80 (08/03/2017)

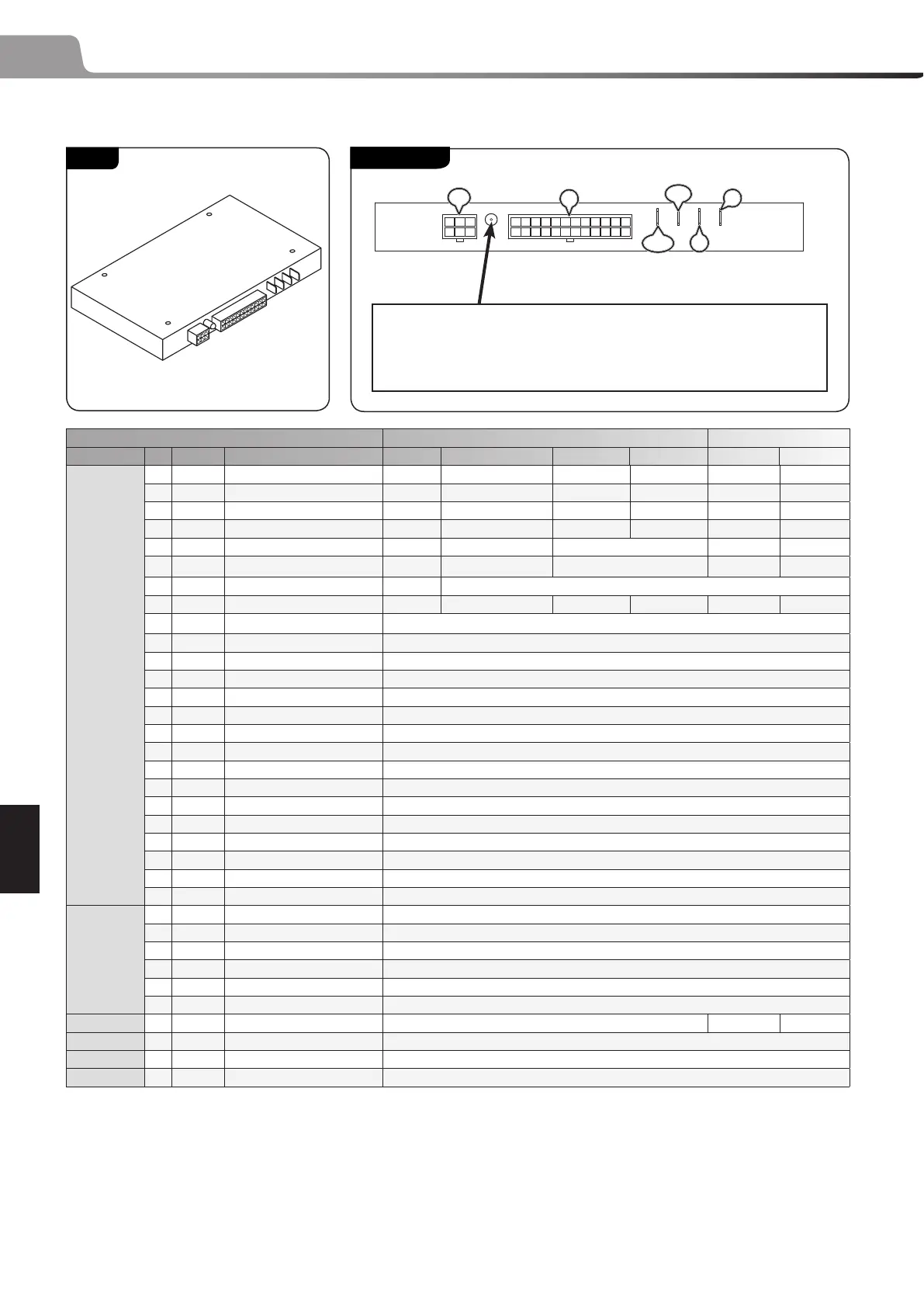

Safety control card
Base module control unit Measure using the calibrator Multimeter
Connector PIN Wire N° Signal Menu Description Not activated Activated Not activated Activated
B
1 117 Arm 1/2 down - SQ1a 1.3.11 Boom rest Open Closed 0V (1)
2 244 Arm 1/2 down - SQ1b 1.3.17 Boom rest 2 Open Closed 0V (1)
3
118
Telescope retracted - SQ4a
1.3.12
Tele sw
Open
Closed
0V (1)
4 245 Telescope retracted - SQ4b 1.3.15 Tele sw 2 Open Closed 0V (1)
5 332 Overload - SQ5a 2.4.9 Cage over see overload _ (2)
6 333 Overload - SQ5b 1.3.16 Cage over 2 see overload _ (2)
7 Free NOT MEASURABLE
8 408 Return to overload validation 1.3.14 SFTY Rel Open Closed 0V (3)
9 Free NOT MEASURABLE
10
Free
NOT MEASURABLE
11 Free NOT MEASURABLE
12 Free NOT MEASURABLE
13
Free
NOT MEASURABLE
14 Free NOT MEASURABLE
15 Free NOT MEASURABLE
16
Free
NOT MEASURABLE
17 Free NOT MEASURABLE
18 Free NOT MEASURABLE
19
Free
NOT MEASURABLE
20 Free NOT MEASURABLE
21 Free NOT MEASURABLE
22
Free
NOT MEASURABLE
23 Free NOT MEASURABLE
24 Free NOT MEASURABLE
CAN
1
NOT MEASURABLE
2 NOT MEASURABLE
3 NOT MEASURABLE
4
NOT MEASURABLE
5 112 CAN-L NOT MEASURABLE
6 113 CAN-H NOT MEASURABLE
OUT 1
406
Validation overload Ka11
0V
OUT 2 405 Free NOT MEASURABLE
B- 103 0V NOT MEASURABLE
B+
106
+48V
NOT MEASURABLE
1: 0 V in transport position only.
2 : ..............................(680.3.5 SAFETY COMPONENTS  CONTROL AND SETTINGS, 5 126).
3: Input must be in the “closed” state in order to obtain all movements.
NOTE: When powered on, the LED ashes once, then switches on or remains o depending on the
results of the test phase.
NOTE: There are no parameters for displaying the outputs, measurements must be taken with a multimeter.
1 2 3
4 5 6
1 2 3 4 5 6 7 8 9 10 11
14 15 16 17 18 19 20 21 22 23 13
12
24
80 - 92
LED RUN :
ON, control unit powered.
FLASHING, fault on the overload circuit.
OFF, control unit switched o, defective, or BUS-CAN problem.
CAN
OUT2
B
B+
B
OUT1
80 - 93
