CIRCUS EXPERT SERVICE MANUAL
COMPRESSION DAMPER INSTALL
oil height chart 2017-2018
Mastodon pro
mastodon comp
markhor (80/100mm)
circus sport (ffd)
circus comp/expert
machete (kwik toggle, 90-120mm)
machete (abs+)
mattoc comp
mattoc pro
75mm
dorado (see dorado service guide)
87mm
92mm
83mm
R7 PRO
83mm
87mm
87mm
machete (kwik toggle, 130-140mm)
91mm
87mm
75mm
87mm
180-190mm

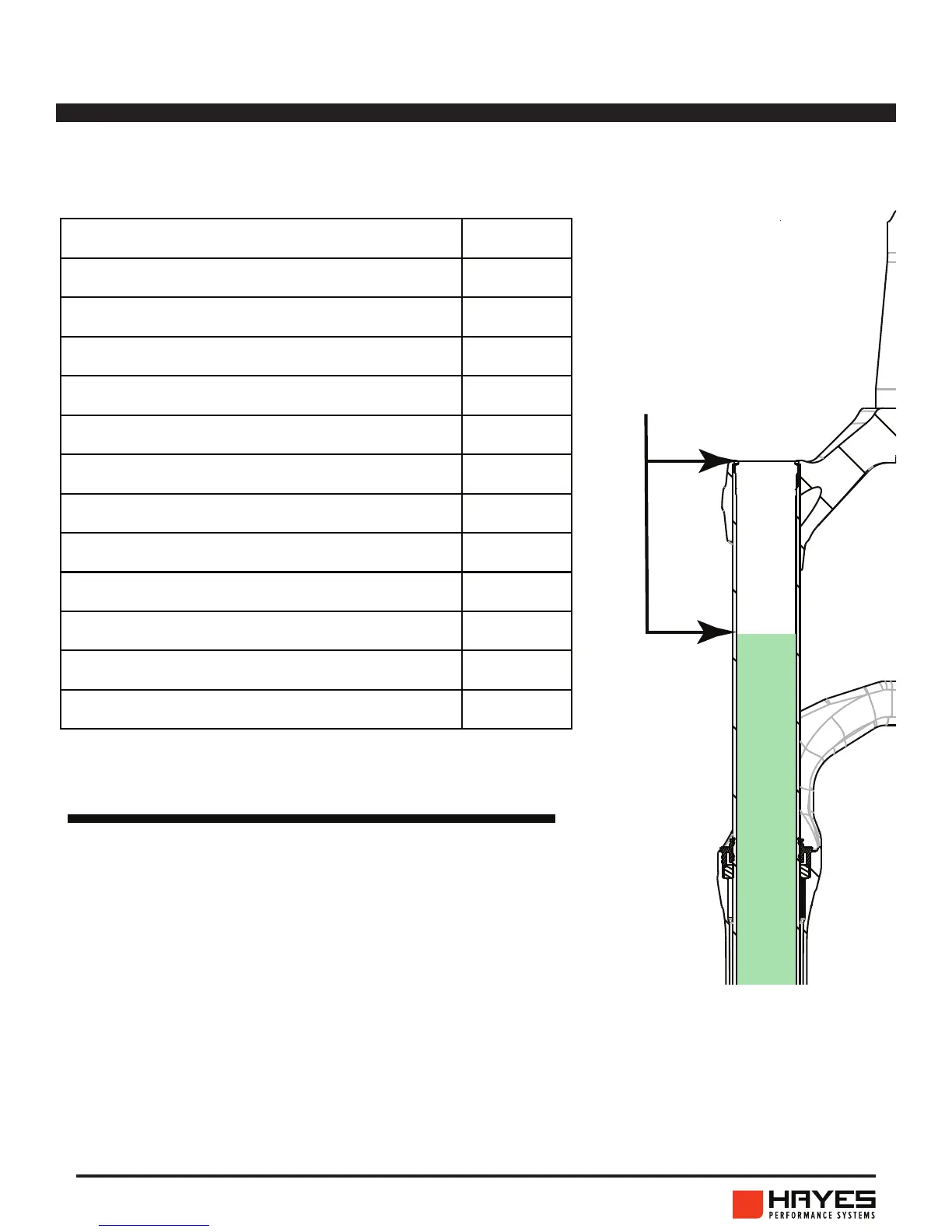

oil
height
(refers to the air
space between the top
of the oil and top of
the fork leg)
tech support: techsupport@hayesbicycle.com
eu tech support: techsupporteu@hayesbicycle.com
www.manitoumtb.com
fork model oil height
markhor (120mm)
97mm
All forks listed us 5w synthetic oil for the damer, Manitou part number 85-0023.
All forks listed us 5w40 synthetic oil for the lowers, Manitou part number 85-0024.
1. oil height is set with compression damper
removed.
2. oil height is set with fork fully extended
and casting installed.
note
