Manitou MC 18-2 D K ST3A S1 - Clean; Fuel Pre-Filter; Radiator Core

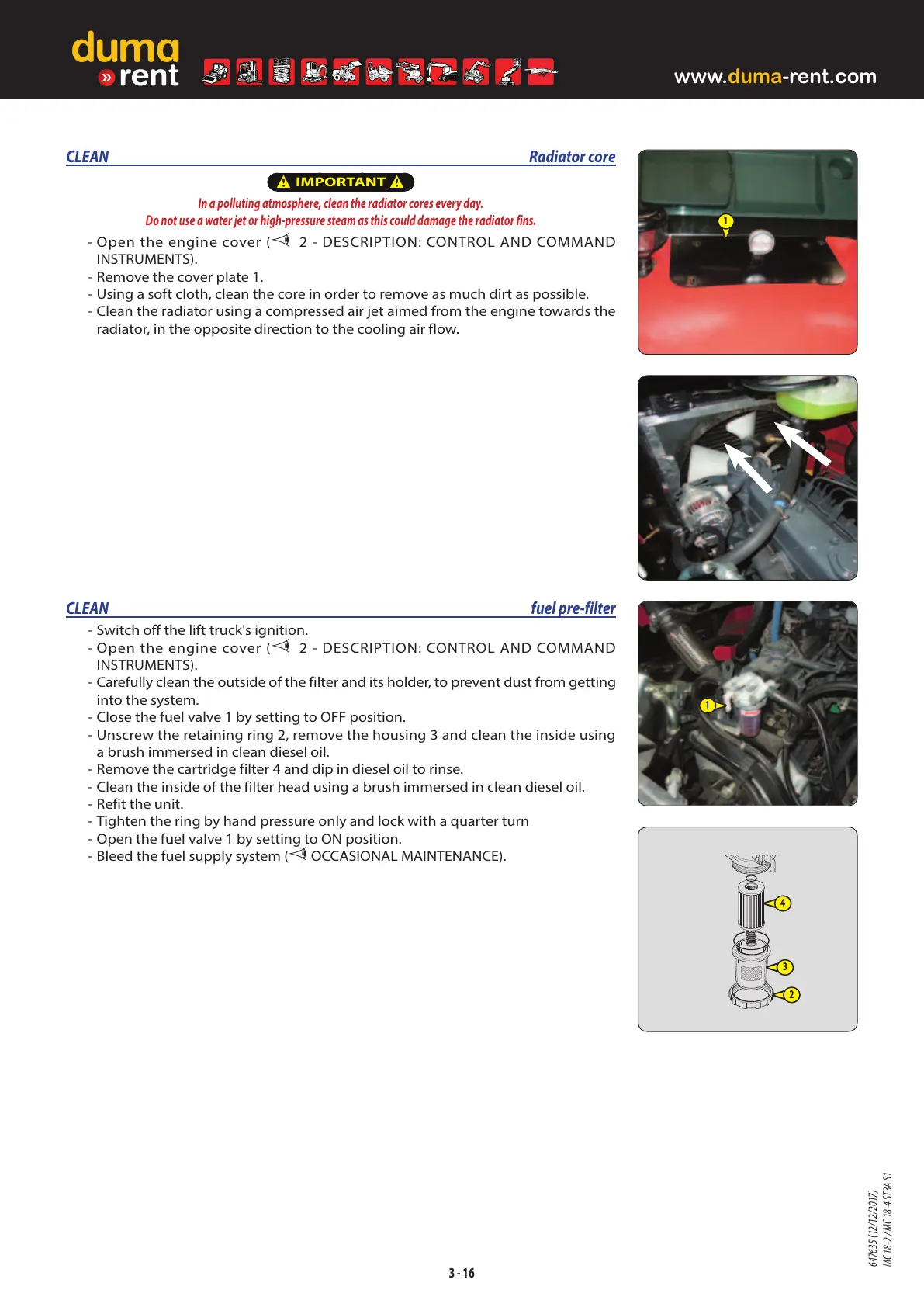

CLEAN fuel pre-filter
- Switch off the lift truck's ignition.
- Open the engine cover ( 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS).
- Carefully clean the outside of the filter and its holder, to prevent dust from getting
into the system.
- Close the fuel valve 1 by setting to OFF position.
- Unscrew the retaining ring 2, remove the housing 3 and clean the inside using
abrush immersed in clean diesel oil.
- Remove the cartridge filter 4 and dip in diesel oil to rinse.
- Clean the inside of the filter head using a brush immersed in clean diesel oil.
- Refit the unit.
- Tighten the ring by hand pressure only and lock with a quarter turn
- Open the fuel valve 1 by setting to ON position.
- Bleed the fuel supply system (
 OCCASIONAL MAINTENANCE).
CLEAN Radiator core

IMPORTANT

In a polluting atmosphere, clean the radiator cores every day.
Do not use a water jet or high-pressure steam as this could damage the radiator fins.
- Open the engine cover ( 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS).
- Remove the cover plate 1.
- Using a soft cloth, clean the core in order to remove as much dirt as possible.
- Clean the radiator using a compressed air jet aimed from the engine towards the
radiator, in the opposite direction to the cooling air flow.
3 - 16
4
3
2
1
1
647635 (12/12/2017)
M
C 18-2 / MC 18-4 ST3A S1
