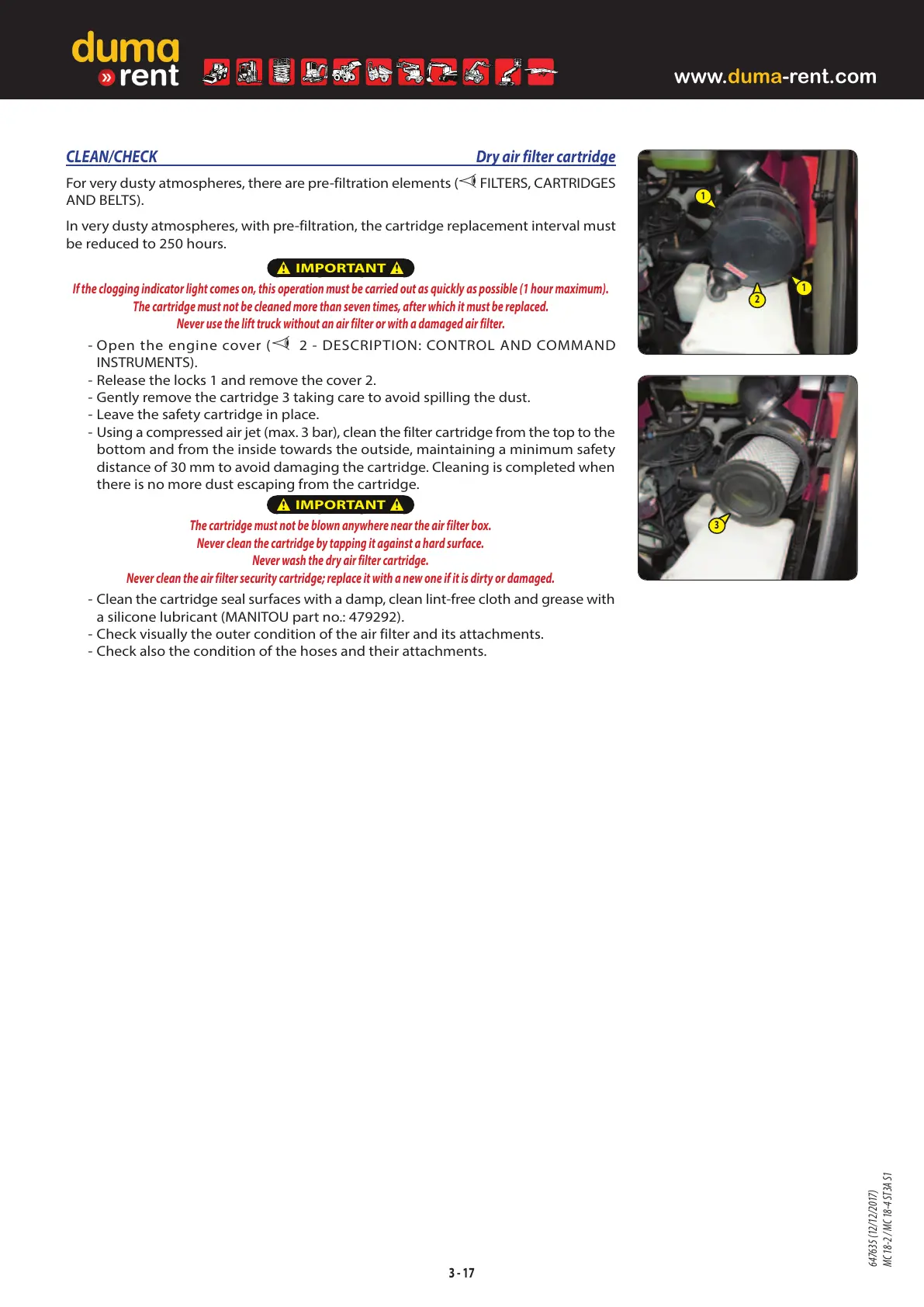

CLEAN/CHECK Dry air filter cartridge
For very dusty atmospheres, there are pre-filtration elements ( FILTERS, CARTRIDGES
AND BELTS).
In very dusty atmospheres, with pre-filtration, the cartridge replacement interval must
be reduced to 250 hours.
IMPORTANT
If the clogging indicator light comes on, this operation must be carried out as quickly as possible (1 hour maximum).
The cartridge must not be cleaned more than seven times, after which it must be replaced.
Never use the lift truck without an air filter or with a damaged air filter.
- Open the engine cover ( 2 - DESCRIPTION: CONTROL AND COMMAND
INSTRUMENTS).
- Release the locks 1 and remove the cover 2.
- Gently remove the cartridge 3 taking care to avoid spilling the dust.
- Leave the safety cartridge in place.
- Using a compressed air jet (max. 3 bar), clean the filter cartridge from the top to the
bottom and from the inside towards the outside, maintaining a minimum safety
distance of 30 mm to avoid damaging the cartridge. Cleaning is completed when
there is no more dust escaping from the cartridge.
IMPORTANT
The cartridge must not be blown anywhere near the air filter box.
Never clean the cartridge by tapping it against a hard surface.
Never wash the dry air filter cartridge.
Never clean the air filter security cartridge; replace it with a new one if it is dirty or damaged.
- Clean the cartridge seal surfaces with a damp, clean lint-free cloth and grease with
a silicone lubricant (MANITOU part no.: 479292).
- Check visually the outer condition of the air filter and its attachments.
- Check also the condition of the hoses and their attachments.
3 - 17
3
1
1
2
647635 (12/12/2017)
