3 - 26
F - EVERY 2400 WORKING HOURS SERVICE
F1 - DR A I N A N D C H A N G E T H E F R O N T W H E E L
REDUCER OIL
This operation should be carried out once a year if the lift truck has not
reached 2400 hours service within the year.
Place the truck on level ground with the engine stopped and the reducer oil
still warm.
- Drain and change each front wheel reducer.
- Place drain plug 1 (Fig. F1) in position A.
- Place a container under the drain plug and unscrew the plug.
- Let the oil drain fully.
Get rid of the drain oil in an ecological manner.
- Place the drain port in position B, i.e. in a level port.
- Fill up with oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by level port 1 (Fig. F1).
- The level is correct when the oil level is flush with the edge of the hole.
- Refit and tighten the drain plug 1 (Fig. F1) (Tightening torque 60 à 70 N.m).

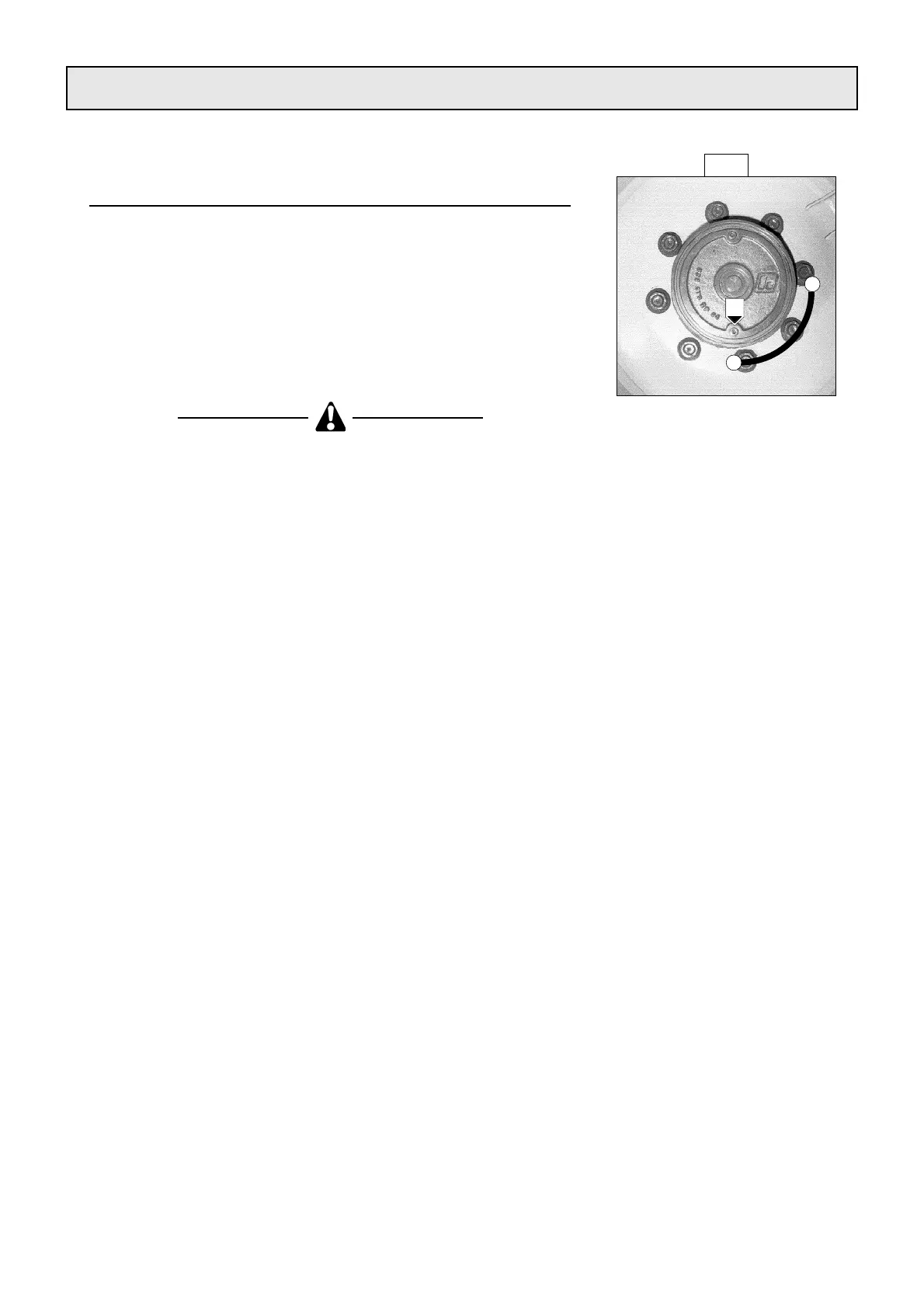

F1
1
B
A
