E5 - DRAIN AND CLEAN THE FUEL TANK
While carrying out these operations, do not smoke or work near a flame.
Place the truck on level ground with the engine stopped.
- Check visually and by touching the parts susceptible of having leaks in the
fuel circuit and in the tank.
- In the event of a leak, contact your dealer.
Never try to carry out a weld or any other operation by yourself, this could
provoke an explosion or a fire.
- Place a container under drain plug 1 (Fig. E5/1) and unscrew the plug.
- Let the fuel flow and clean with 10 litres of clean fuel by filler port 2 (Fig.
E5/2).
- Refit and tighten drain plug 1 (Fig. E5/1) (Tightening torque 30 to 40 N.m).
- Fill the fuel tank with clean fuel filtered through a strainer or a clean, lint-free
cloth and refit the filler plug 3 (Fig. E5/2).
E6 - CH A N G E T H E S A F E T Y D RY A I R F I LT E R
CARTRIDGE
- Lift up the overhead guard or the cabin (See chapter : INSTRUMENTS AND
CONTROLS in paragraph : 2 - DESCRIPTION).
- Disassemble the dry air filter cartridge (See chapter : D3 - CHANGE THE
DRY AIR FILTER CARTRIDGE in paragraph : 3 - MAINTENANCE).
UP TO MACHINE N° 139 125
- Remove air filter safety cartridge 1 (Fig. E6/1) and replace the safety
cartridge concerned with a new cartridge.
FROM MACHINE N° 139 126
- Remove air filter safety cartridge 1 (Fig. E6/2) and replace the safety
cartridge concerned with a new cartridge.
- Reassemble the entire unit (See chapter : D3 - CHANGE THE DRY AIR
FILTER CARTRIDGE in paragraph : 3 - MAINTENANCE).

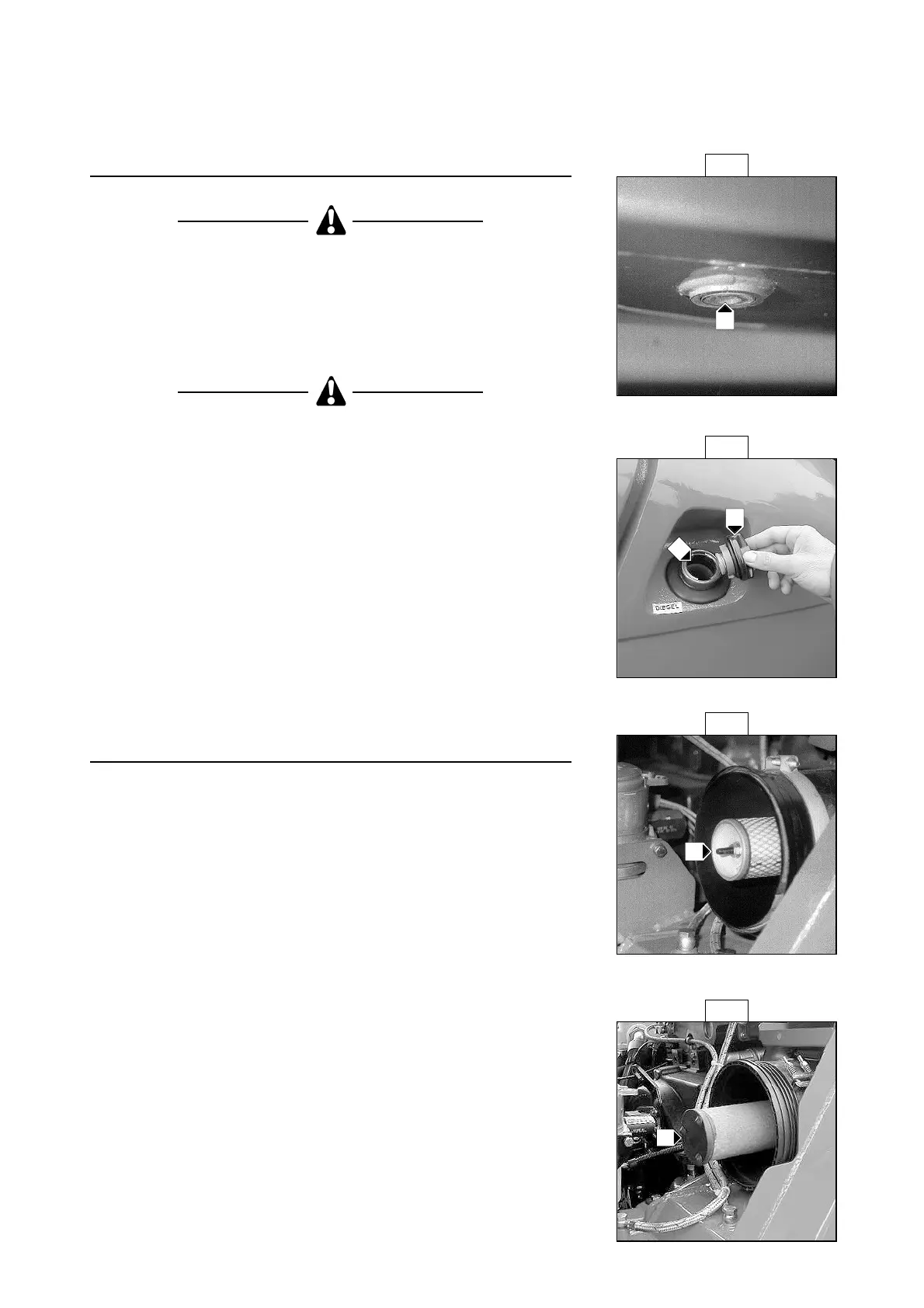

E5/1
1
E5/2
3
1
E6/1
E6/2
2
1
