2 - 44
7 - PUNCH STOP BUTTON
This button enables all lift truck movements to be switched off by stopping the
I.C. engine.
- Press the button 1 so as to stop the I.C. engine.
- Turn the button to the right so as to reset it.
Immobilize the lift truck before using the punch stop.

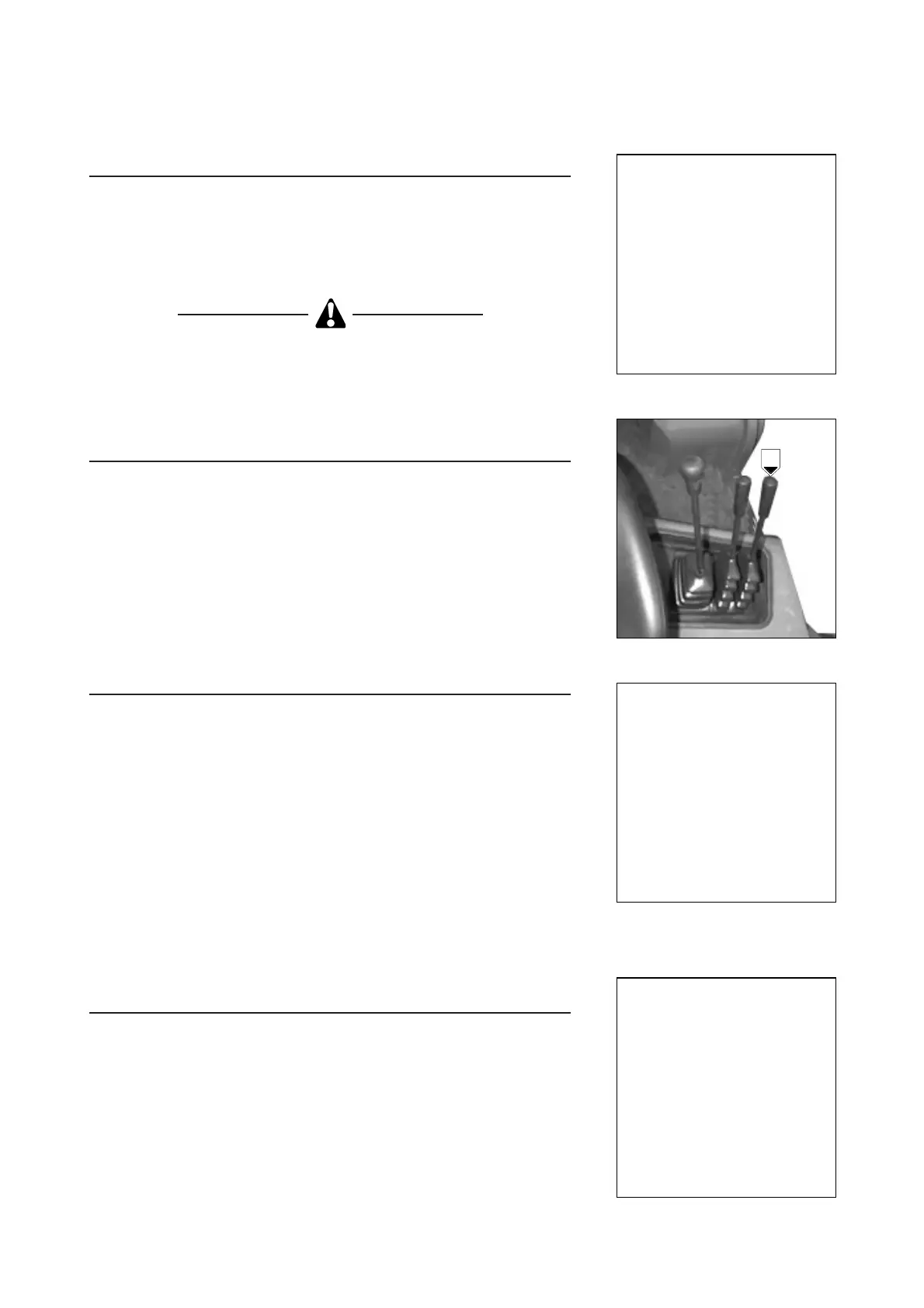

8 - ADAPTATION 4
TH
SINGLE-ACTING OR DOUBLE-
ACTING DISTRIBUTOR ELEMENT
LEVER A : Intended for controlling a single or double acting additional
equipment
9 - ADAPTATION 3 ON LINE DISTRIBUTOR ELEMENTS
LEVER A : Controls the mast tilting.
- The lever backwards for backward mast tilting.
- The lever forwards for forward mast tilting.
LEVER B : Controls the load lifting.
- The lever backwards for load lifting.
- The lever forwards for load lowering.
NOTE : The engine r.p.m. automatically increases when lifting the load.
LEVER C : Designed for additional equipment control.
10 - AD A P TAT I O N 4 O N L I N E D I S T R I B U TO R
ELEMENTS
LEVER A : Controls the mast tilting.
- The lever backwards for backward mast tilting.
- The lever forwards for forward mast tilting.
LEVER B : Controls the load lifting.
- The lever backwards for load lifting.
- The lever forwards for load lowering.
NOTE : The engine r.p.m. automatically increases when lifting the load.
LEVER C : Designed for additional equipment control.
LEVER D : Designed for additional equipment control.
A
