D4 - FUEL PRE-FILTER CARTRIDGE
CHANGE
Make sure the electrical contact on the lift truck is cut, otherwise fuel will be released if the lift pump
is on.
- Pull on the handle located inside the cab to open the engine hood.
- Carefully clean the outside of the filter and its holder, to prevent dust from getting into
the system.
- Place a container under the pre-filter and drain it using drain plug 1 (fig. D4).
- Remove bleeder screw 2 (fig. D4) in order to ensure that the oil is drained properly.
- Unscrew locking screw 3 (fig. D4).
- Remove container 4 (fig. D4) and discard cartridge 5 (fig. D4) as well as its seals.
- Clean the inside of the filter head and the housing, using a brush immersed in clean
diesel oil.
- Refit the assembly with a new cartridge and new seals (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- If necessary, bleed the fuel circuit (see: 3 - MAINTENANCE: G1 - FUEL SYSTEM).
D5 - FUEL FILTER CARTRIDGE
CHANGE
Make sure the electrical contact on the lift truck is cut, otherwise fuel will be released if the lift pump
is on.
- Pull on the handle located inside the cab to open the engine hood.
- Carefully clean the outside of the filter and its holder, to prevent dust from getting into
the system.
- Place a container under the filter and drain it through drain plug 1 (fig. D5/1).
- Loosen the body of filter 2 (fig. D5/1).
- Remove the filter cartridge by pressing cartridge 3 (fig. D5/2) down against the pressure
of the spring and turn it to the left to extract it.
- Insert a new cartridge (see: 3 - MAINTENANCE: FILTERS AND BELTS), by pressing cartridge
3 (fig. D5/2) down against the pressure of the spring and turn it to the right to lock it into
the body of the filter.
- Place the new seal 4 (fig. D5/2) onto the body of the filter and lightly lubricate the contact
surface of the seal using clean motor oil.
- Remount the body of the filter onto its holder, hand-tighten it only and lock it with a
quarter-turn.
- Close drain plug 1 (fig. D5/1).
- Before starting the I.C. engine, leave the ignition on for three minutes on the lift truck, to
give the lift pump time to release air from the filter.
- Start up the I.C. engine and make sure there is no leakage.
- If necessary, bleed the fuel circuit (see: 3 - MAINTENANCE: G1 - FUEL SYSTEM).

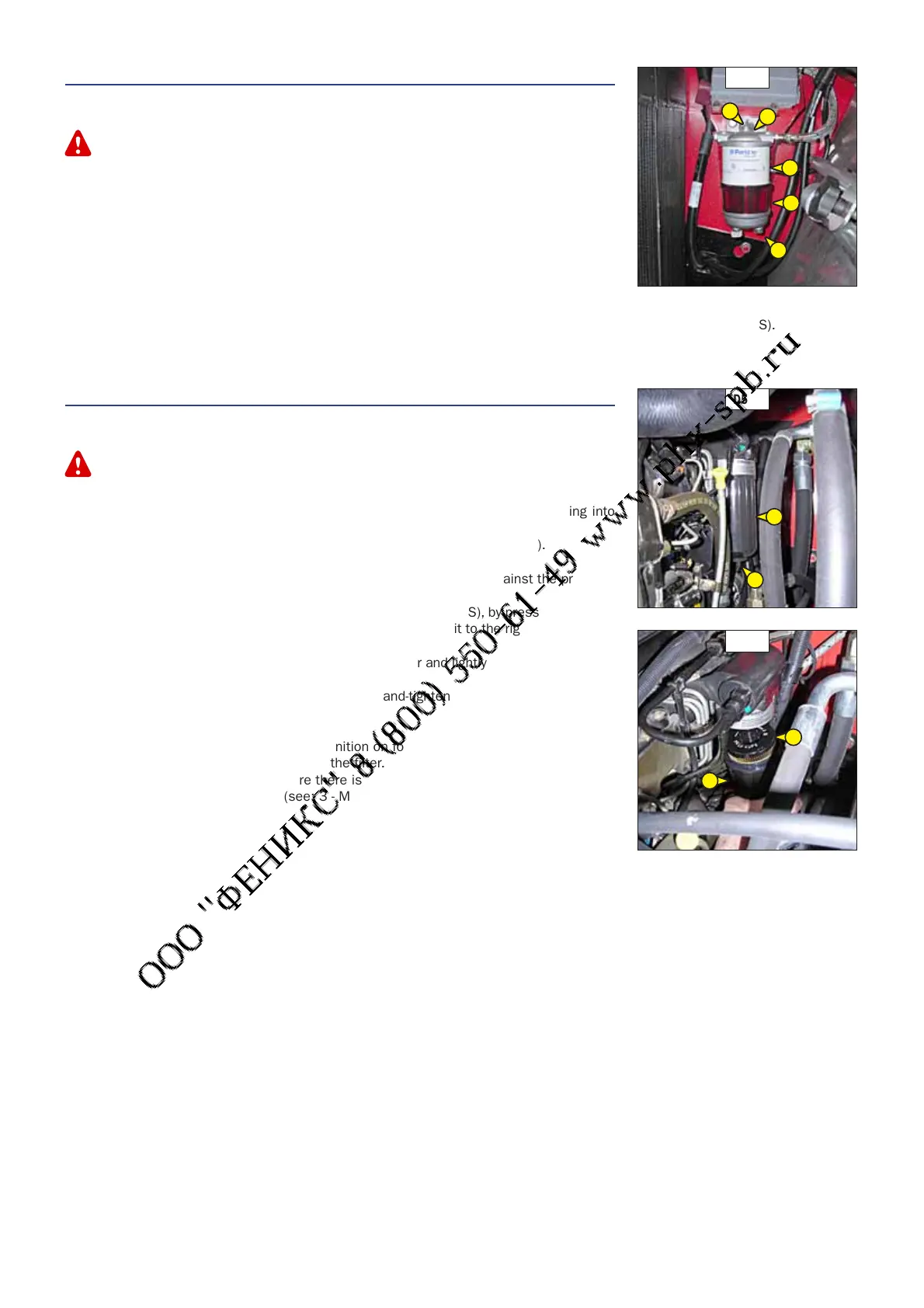

D4
1
2
3
4
5
D5/1
1
2
D5/2
3
4
