3-35

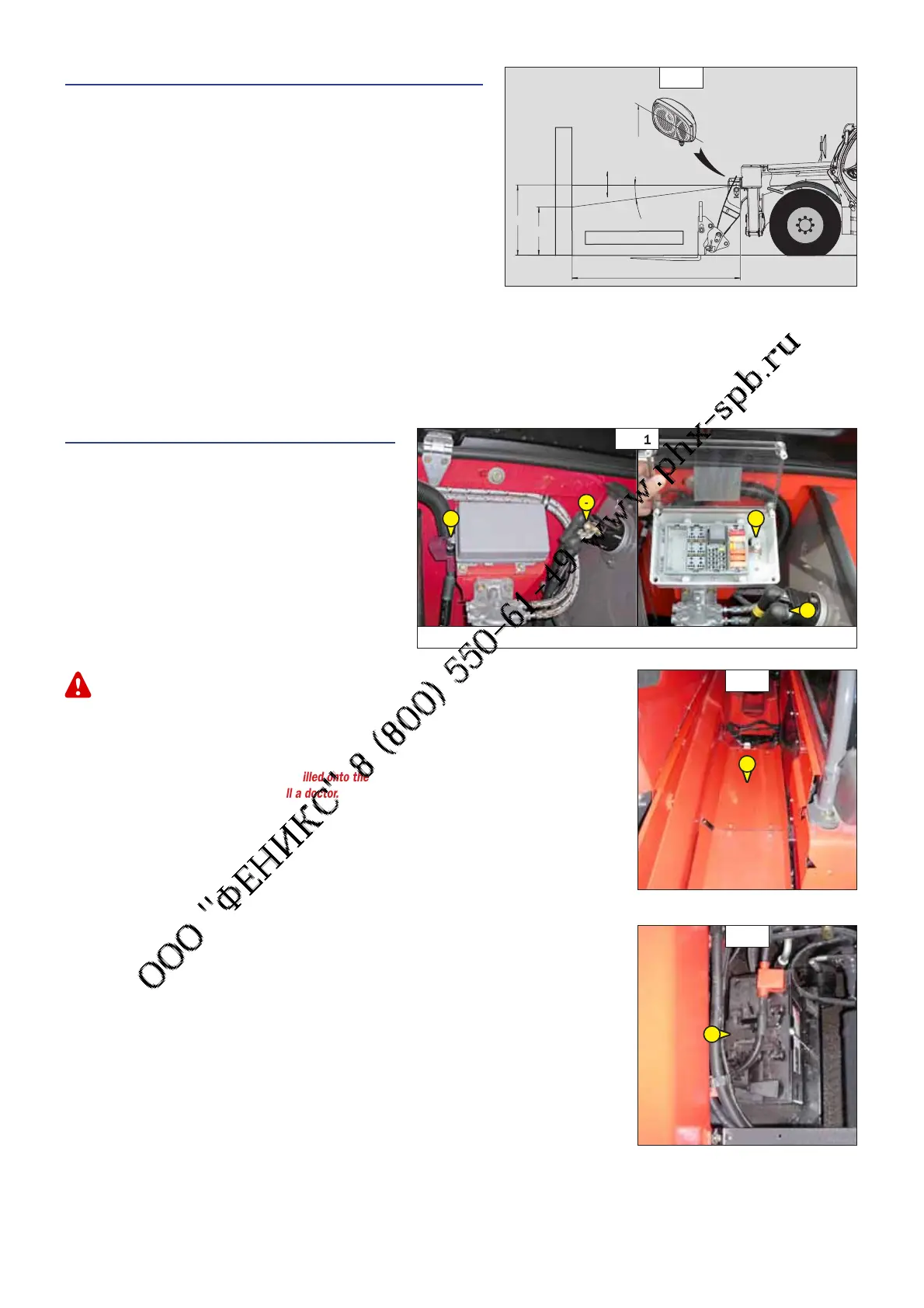

G3 - FRONT HEADLAMPS
ADJUST
RECOMMENDED SETTING
(as per standard ECE-76/756 76/761 ECE20)
Set to - 2 % of the dipped beam in relation to the horizontal line of
the headlamp.
ADJUSTING PROCEDURE
- Place the lift truck unloaded and in the transport position and
perpendicular to a white wall on flat, level ground (fig. G3).
- Check the tire pressures (see: 2 - DESCRIPTION: FRONT AND REAR
TIRES).
- Put the gearshift lever into neutral.
Calculating the height of the dipped beam (h2)
• h1 = Height of the dipped beam in relation to the ground.
• h2 = Height of the adjusted beam.
• l = Distance between the dipped beam and the white wall.
G4 - BREAKDOWN OF BATTERY
CHANGE
- Pull on the handle located inside the cab to open the
engine hood.
- Bring a floating battery of the same type as the one
used for the lift truck and battery cables.
- Connect the floating battery while respecting the
polarity (fig. G4/1).
- Start the lift truck and remove the cables as son as
the I.C engine is running.
- Raise the jib.
- Lift out protective casing 1 (fig. G4/2).
- Replace battery 2 (fig. G4/3).
Handling and servicing a battery can be dangerous, take
the following precautions:
- Wear protective goggles.
- Keep the battery horizontal.
- Never smoke or work near a naked flame.
- Work in a well-ventilated area.
- In the event of electrolyte being spilled onto the skin or splashed in the eyes, rinse thoroughly
with cold water for 15 minutes and call a doctor.
+%
-%
l
h1
h2
-2%
h2 = h1 - (l x 2 / 100)
h1
G3
G4/2
1
G4/3
2
+
-
-
+
G4/1
ACCORDING TO INSTALLATION
