Manitou MT 1840 R PRIVILEGE User Manual

3-36

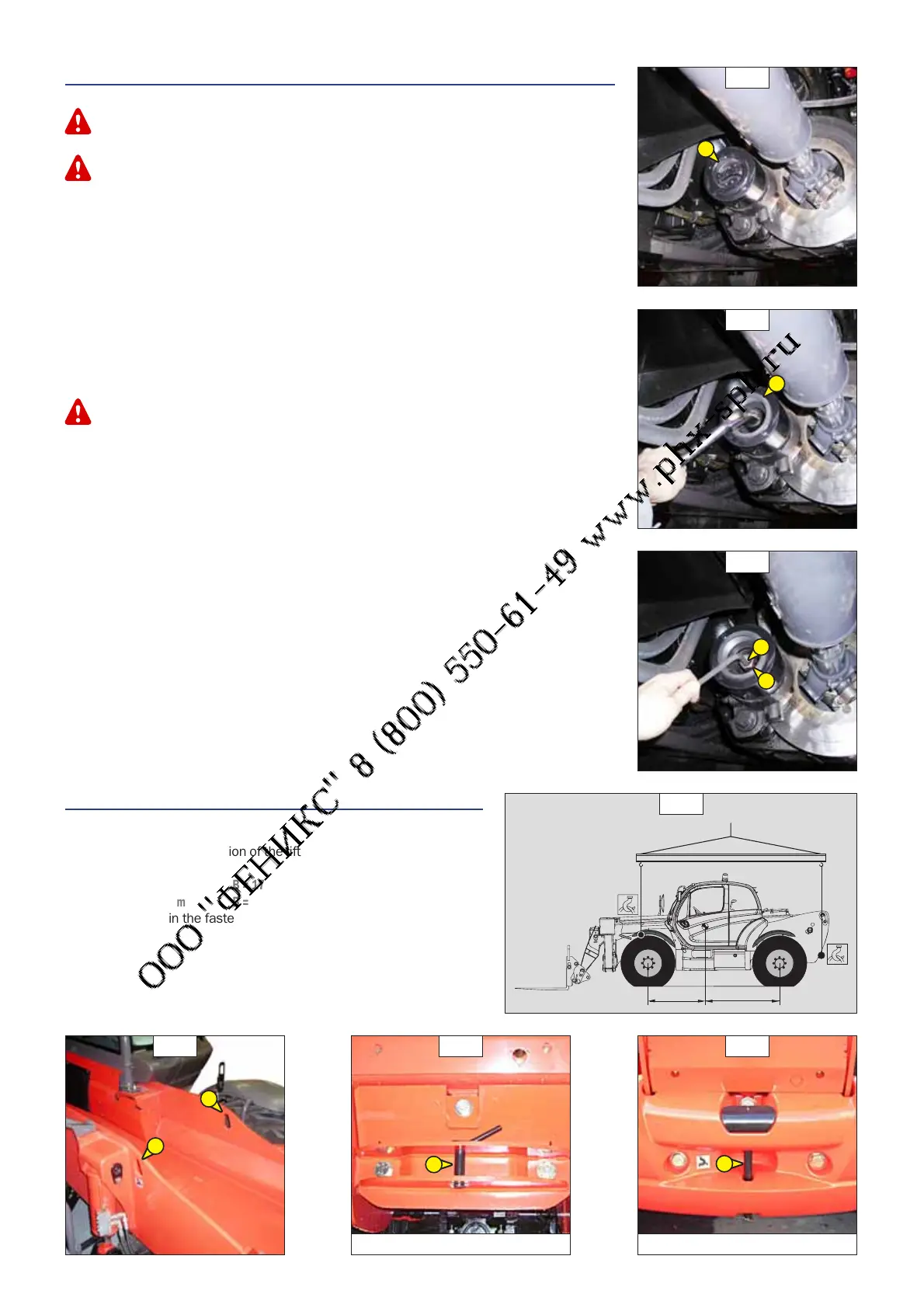

G5 - LIFT TRUCK
TOW
Do not tow the lift truck at more than 25 km/h.
This maneuver is dangerous. Put the lift truck carefully into neutral before towing, because the parking
brake system is out of service.
- Put the reversing lever in neutral and the gear shift into dead center.
- Stall the lift truck.
- Unscrew grease cap 1 (fig. G5/1).
- Using a socket wrench, loosen the nut located inside piston 2 (fig. G5/2)
- Using an Allen key, unscrew the headless screw 3 (fig. G5/3) located inside the nut 4 (fig.
G5/3) in order to release the brake disk. Allow a minimum clearance of 5 mm between
the disk and the brake pads.
- Put the towing device into place.
- Remove the clamps.
- Put the warning lights on.
NOTE: Since there will be no steering or braking assistance, operate these controls slowly.
Avoid sudden jerky movements.
For adjusting the parking brake, please contact your dealer.
G6 - LIFT TRUCK
SLING
- Take into account the position of the lift truck centre of gravity for lifting
(fig. G6/1).
A = 1345 mm B = 1725 mm MT 1436 R PRIVILEGE
A = 1650 mm B = 1420 mm MT 1840 R PRIVILEGE
- Place the hooks in the fastening points provided (fig. G6/2 and G6/3).
BA
G6/1
G6/2 G6/3
MT 1840 R PRIVILEGE
G6/3
MT 1436 R PRIVILEGE
G5/1
1
G5/3
4
3
G5/2
2
