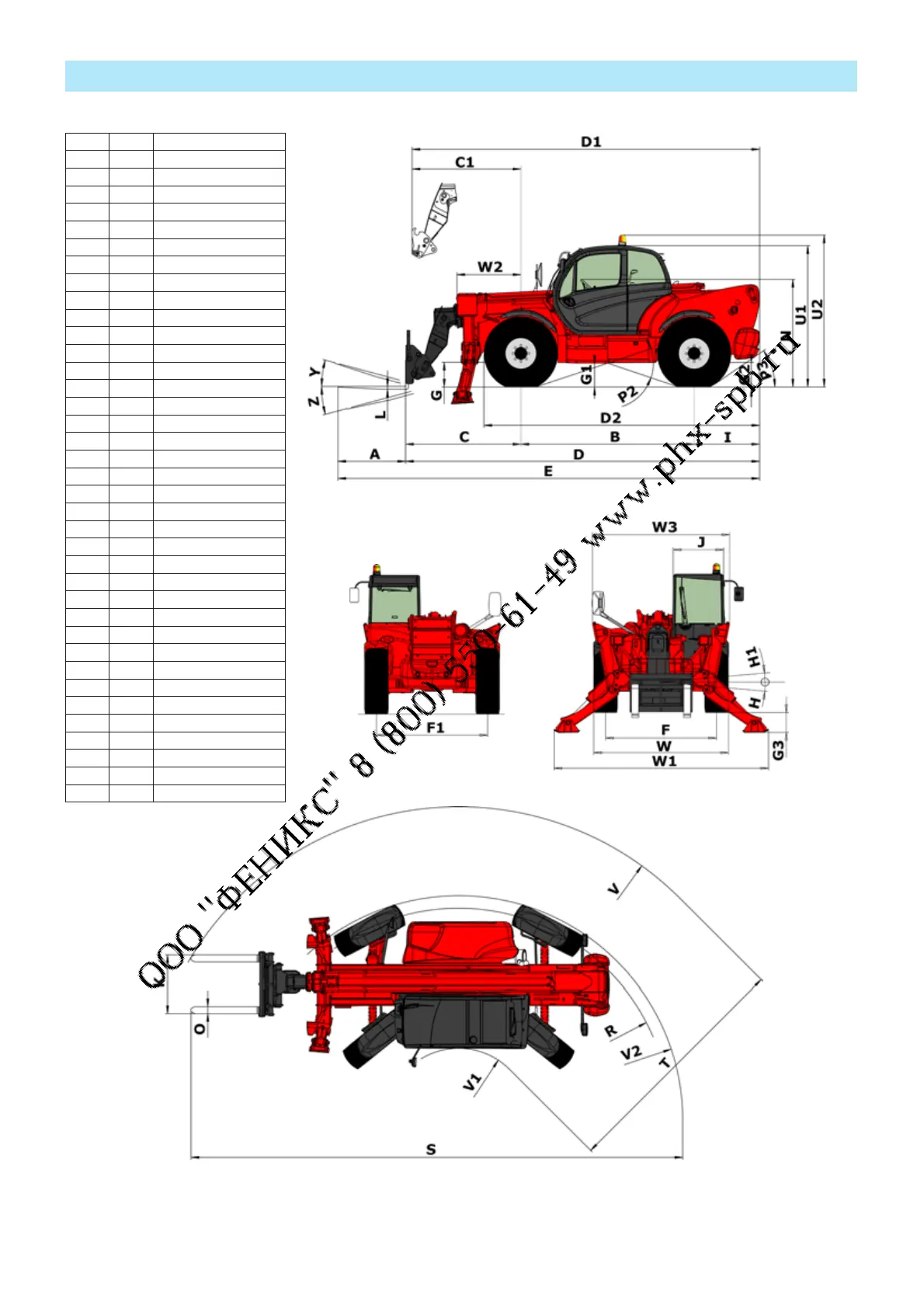

Manitou MT 1840 R PRIVILEGE - DIMENSIONS AND LOAD CHART

2-16
A mm 1200
B mm 3070
C mm 2044
C1 mm 1929
D mm 6274
D1 mm 6159
D2 mm 4829
E mm 7474
F mm 1960
F1 mm 1960
G mm 437
G1 mm 420
G2 mm 433
G3 mm 302
H °9
H1 °9
I mm 1160
J mm 892
K mm 1040
L mm 50
N mm 1908
O mm 125
P2 °37
P3 °34
R mm 3779
S mm 8780
T mm 4307
U1 mm 2505
U2 mm 2693
V mm 5592
V1 mm 1285
V2 mm 3986
W mm 2374
W1 mm 3793
W2 mm 1134
W3 mm 2422
Y °12
Z ° 114
DIMENSIONS AND LOAD CHART
MT 1840 R PRIVILEGE
