3-14

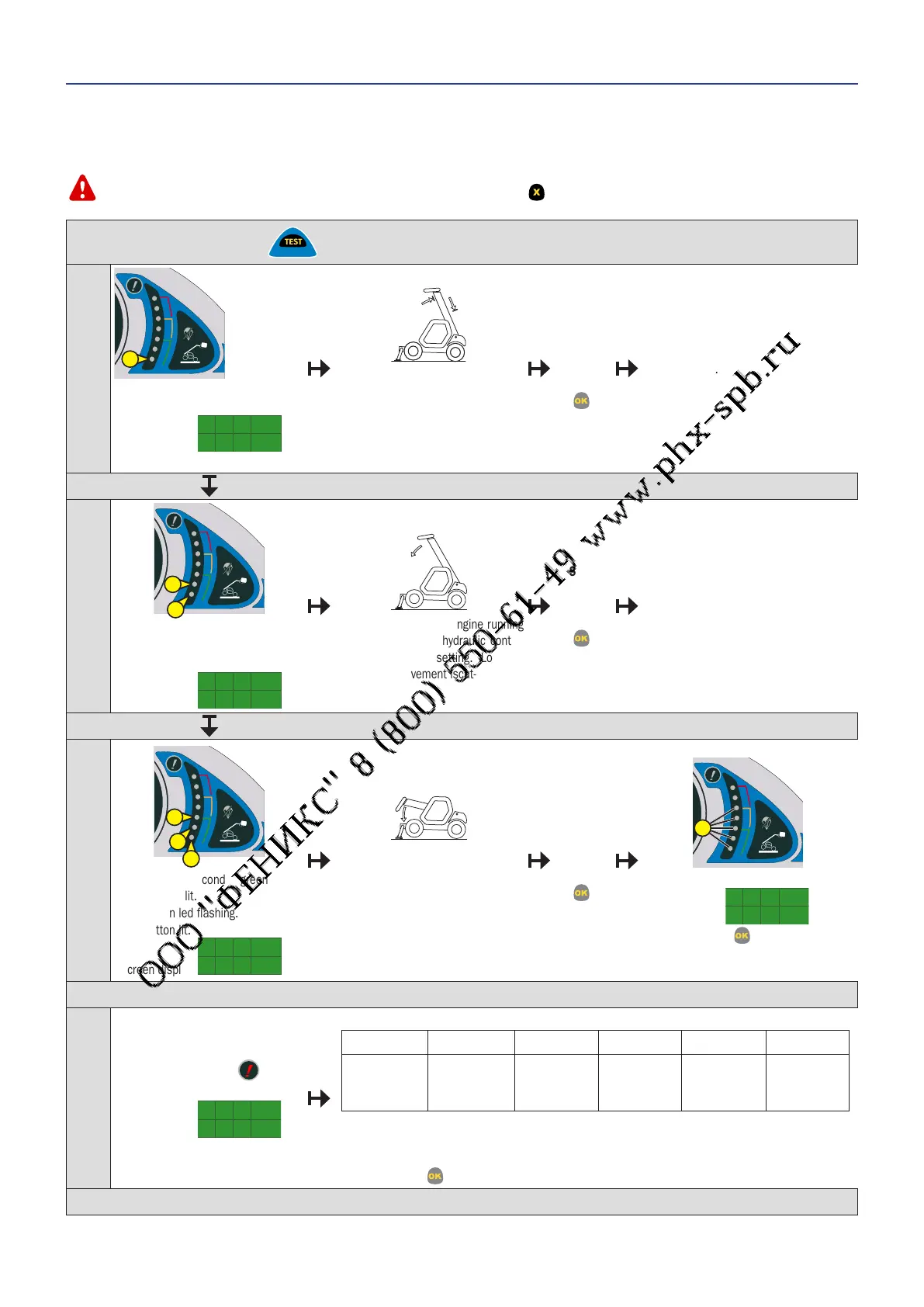

Long press on the test button.
STAGE
1
1
- First green led flashing.
- Test button lit.
- Screen display.
- An audible beep.
- Position the lift truck without
accessories, right and left stabilizers
in place with front wheels clear from
the ground and the jib fully retracted
and raised.
Short
press on
the test
button
.
- Go to stage 2.
STAGE
2
2
1
- First green led continuously lit.
- Second green led flashing.
- Test button lit.
- Screen display.
- Lower the jib with the engine running
at full revs and the hydraulic control
at the maximum setting. Lowering
slows until movement iscut-off.
Short
press on
the test
button
.
- Go to stage 3.
STAGE
3
3
1
2
- First and second green leds
continuously lit.
- Third green led flashing.
- Test button lit.
- Screen display.
- Continue to lower the jib with the
engine running at full revs and the
hydraulic control at the maximum
setting. Lowering slows until
movement is next cut-off.
Short
press on
the test
button
.
TEST OK
- First 5 leds lit.
- Screen display.
- Press the button to exit test mode.
TEST NOT OK
- See stage 4.
STAGE
4
- The fault warning light
remains
flashing on until the error is repaired.
- Screen display.
- The combination is the result of tests carried out in the following order:
1st digit 2nd digit 3rd digit 4th digit 5th digit 6th digit
Telescope
retracted
sensor fault.
Right or left
stabilizer
sensor fault.
Jib angle
sensor fault.
Strain gauge
fault.
Safety valve
fault.
Governing
fault.
1 = Test OK
0 = Faultdetected
- Consult your dealer and provide the combination.
- Press the button
to exit test mode.
A7 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
CHECK
FROM MACHINE N°: 590613 AND FOR MACHINES N°: 589029 ; 589122 ; 589165
- These tests are essential for checking the correct operation and adjustment of the different components of the device.
- Place the lift truck on flat, level ground with the wheels straight.
In case of doubt during the test procedure, exit by pressing the cancel button briefly
.
