R7 EXPERT / PRO SERVICE GUIDE
DAMPER SERVICE
9

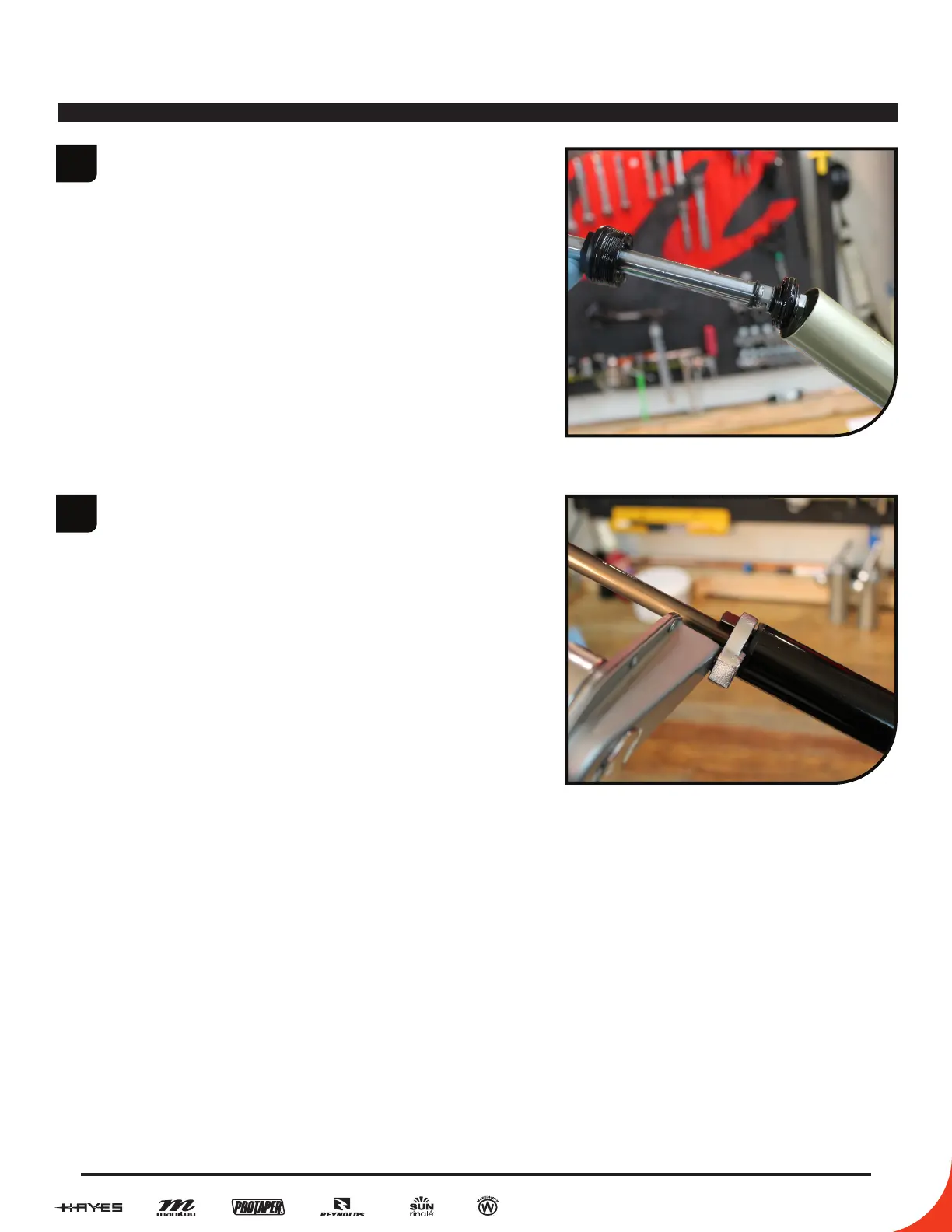

Remove rebound damper assembly
from the fork. Once the damper
assembly is removed, clean
the inside of the stanchion with
isopropyl alcohol and a lint free
towel. Inspect the inside and
outside of the stanchion for
scratches and other damage.
Inspect rebound damper for
damage and replace if necessary.
Install rebound damper assembly
into stanchion. Rotating clockwise,
start the end cap threads by hand
to prevent cross-threading.
*PRO MODEL* Use a 26mm crow’s
foot, Manitou slotted cassette tool,
and torque wrench to tighten to
60-80 in lbs [6.8-9.0 N m].
*EXPERT MODEL* Use a 22mm
crow’s foot and torque wrench to
tighten to 80-100 in lbs [9.0-11.3
N m].
