R7 EXPERT / PRO SERVICE GUIDE
DAMPER SERVICE
1a
1b

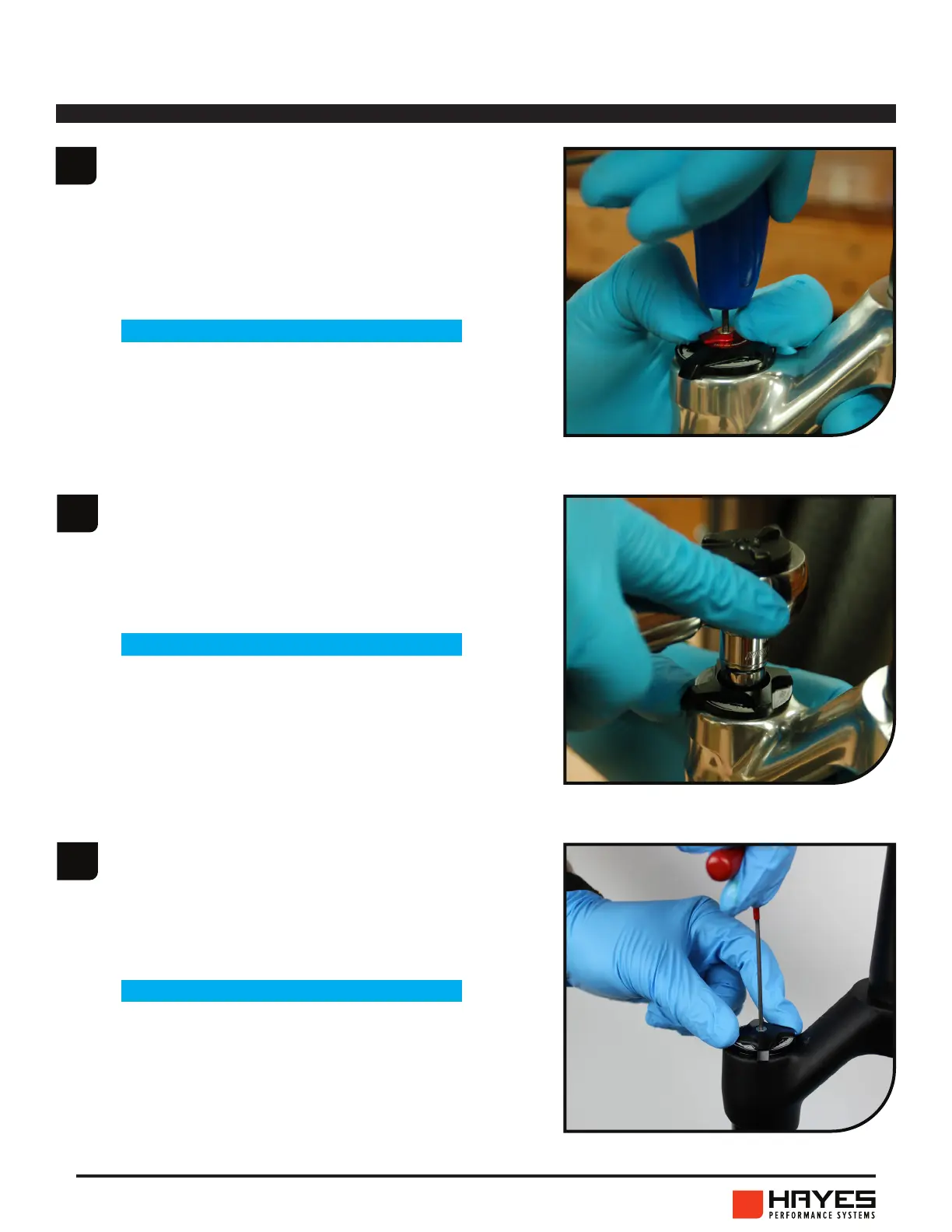

*PRO MODEL* Using a 2mm
hex wrench, rotate counter-
clockwise and remove open-mode-
adjust knob screw when threads
completely disengage from the
damper. Remove the open-mode-
adjust knob.
2
NOTICE
NOTICE
NOTICE
*PRO MODEL* Using an 11mm
socket, rotate counter-clockwise
and remove the knob lock nut when
the threads completely disengage
from the damper.
*Expert Model* Using a 2mm hex
wrench, rotate counter-clockwise
and remove knob screw when
threads completely disengage from
the damper.
For Expert, skip to step 2.
For Expert, skip to step 2.
For Pro, skip to step 3.
To Next Page
