Manitowoc CNF0201 - Refrigeration Tubing Schematic

118 Part Number 000015432 Rev02 5/21

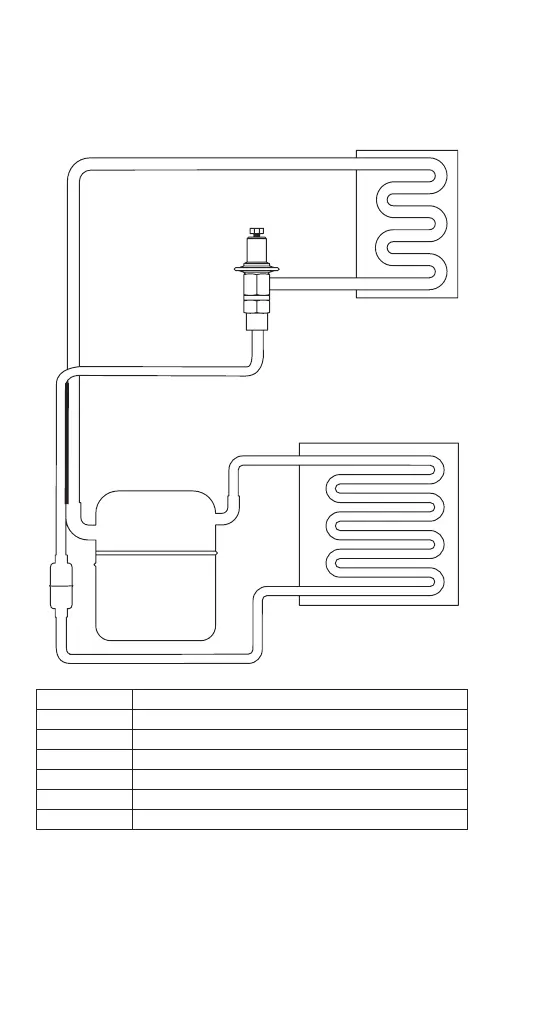

Refrigeration Tubing Schematic
CNF0201 - CNF0202
Number Component
1 Compressor
2 Condenser - Air or Water Cooled
3 Liquid Line Filter Drier
4 Heat Exchanger
5 TXV - Thermostatic Expansion Valve
6 Evaporator
1
2
3
4
5
6
