17. Remove agitator bar.
• CNF0201 - Remove the thumbscrew and lift off.
• CNF0202 - Unscrew the upright agitator bar.
NOTE: Bar must be reassembled by inserting front edge
into the paddle wheel, then lowering the back edge
(rounded 90 angle) to prevent water leakage into the
compressor compartment.

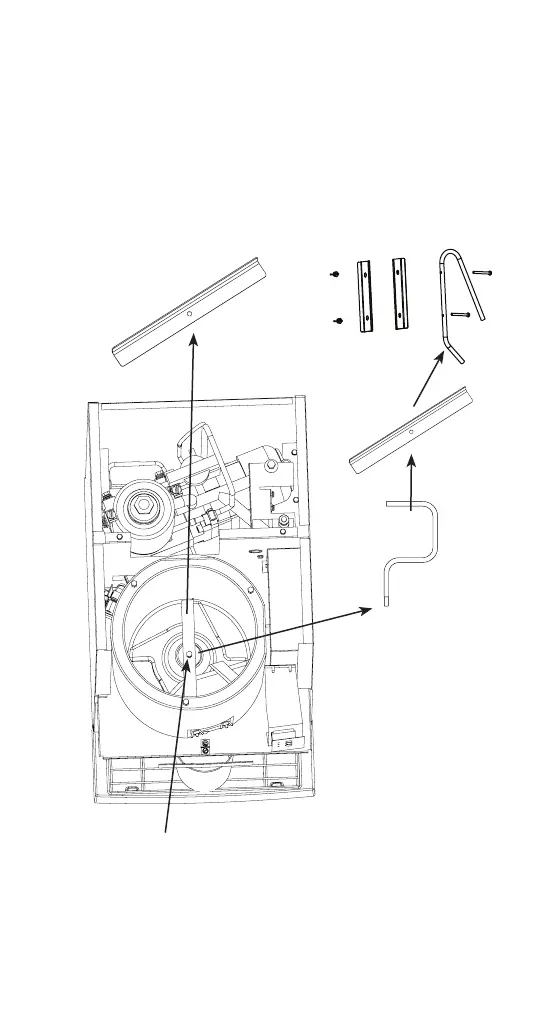

CNF0201 REMOVE THUMBSCREW
AND AGITATOR BAR
CNF0202 REMOVE
AGITATOR,
AGITATOR BAR AND
ICE BREAKER
