GRT655/655L OPERATOR MANUAL OPERATING PROCEDURES
Setting the Swing Angle Limitation
If the Swing Limitation is selected from the menu of WRL
limitations, the Swing Limitation Screen will be shown
(Figure 4-46).
Using the Left Arrow and Right Arrow function on the
Navigation Control Pad or the Jog Dial changes the object
highlighted on the screen. As the arrow keys are pressed,
the highlight will move between the objects, with the color
orange typically meaning that the object is selected and can
be affected by subsequent actions. In Figure 4-46, one can
see that the symbol is selected since it has the
orange color highlighting. Table 4-9 shows the objects
available on the Swing Limitation Screen.

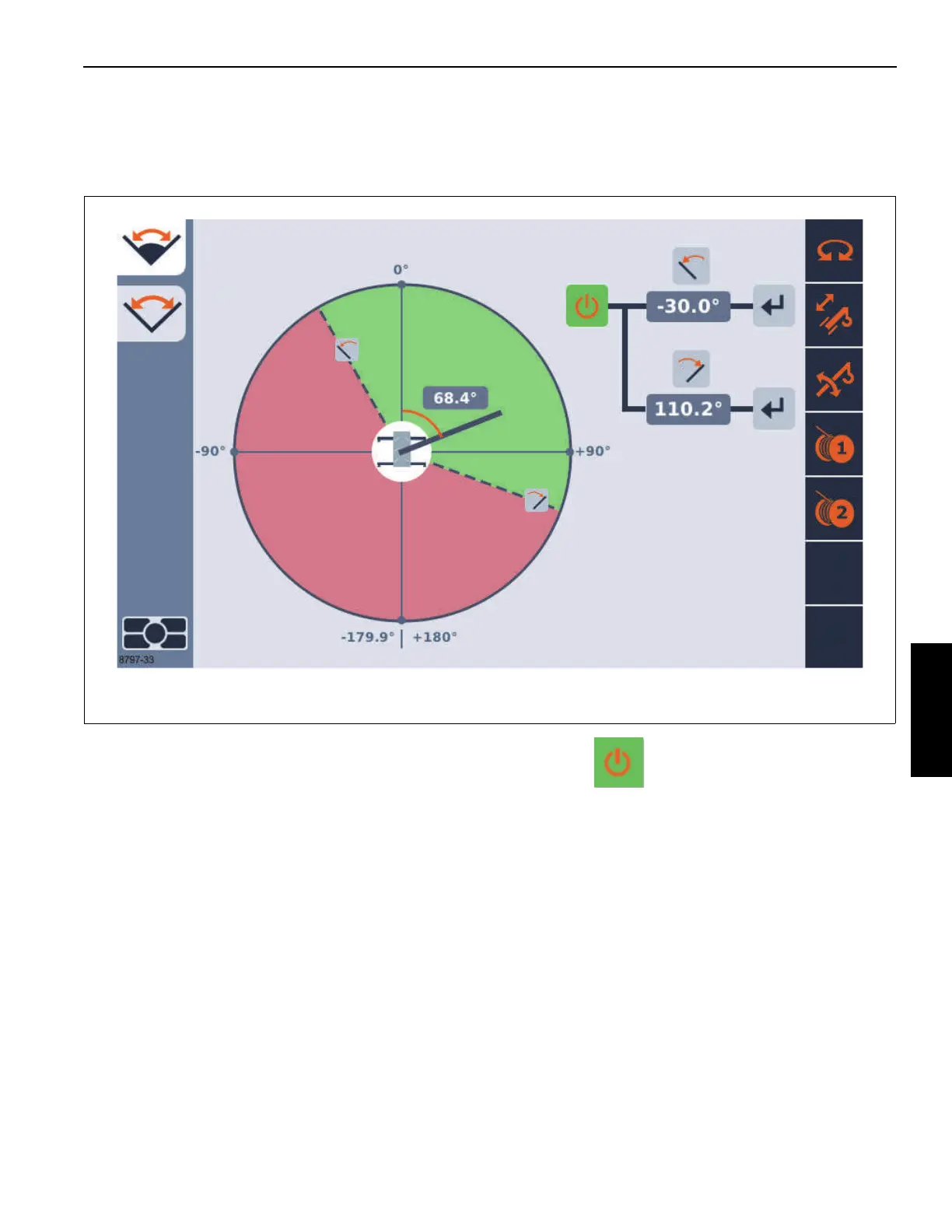

FIGURE 4-46
8797-33
Swing Limitation Screen
