GRT655/655L OPERATOR MANUAL SET-UP AND INSTALLATION
5

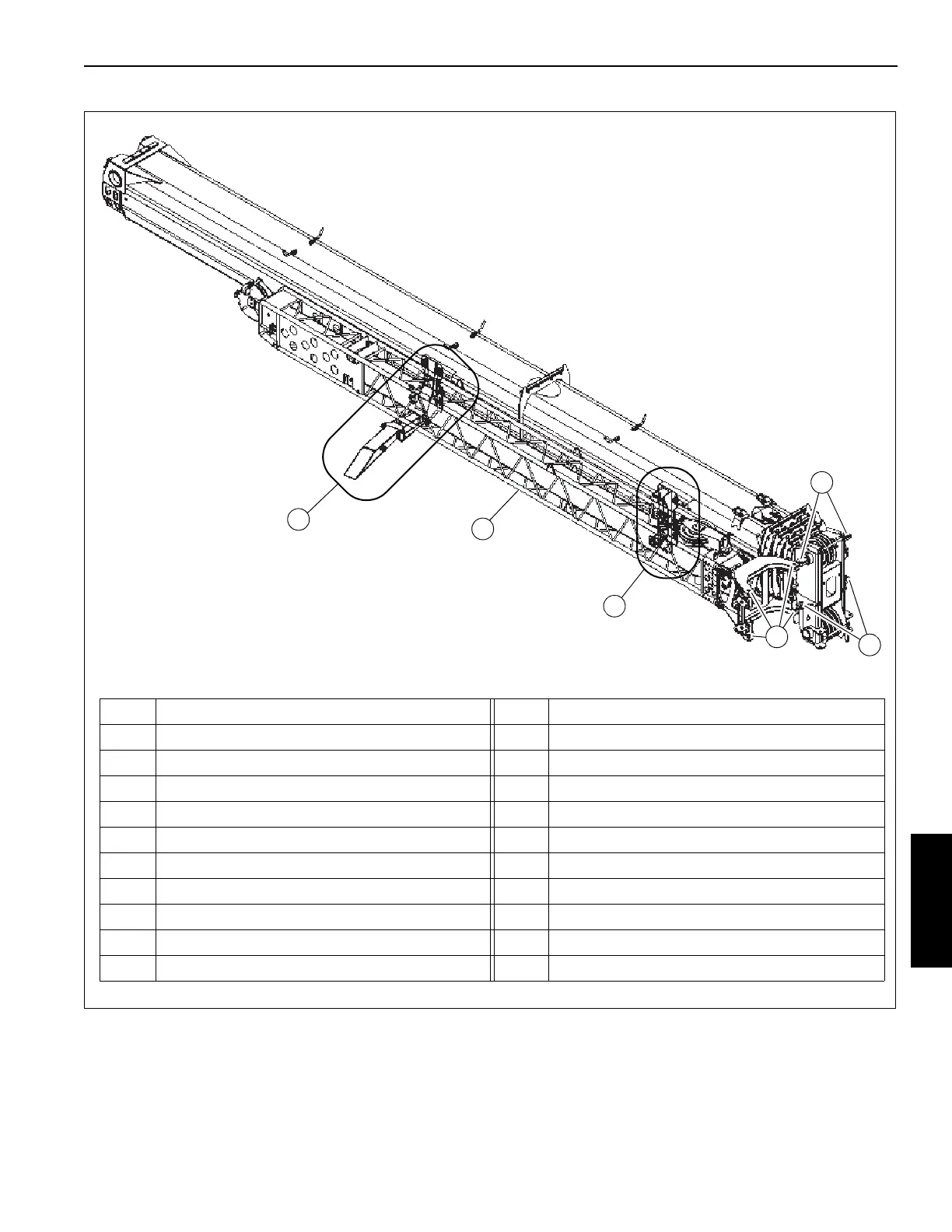

FIGURE 5-16
1
2
3
Item Description Item Description
1 Boom Extension 11 Ramp Spring-Locking Pin
2 Rear Stowage Bracket and Ramp Assembly 12 Cross Pin
3 Front Stowage Bracket Assembly 13 Cross Pin Hole - Locked Position
4 Boom Extension Anchor Fittings 14 Cross Pin Hole - Stowed Position
5 Boom Nose Attachment Lugs 15 Front Stowage Bracket Jack Screw
6 Attachment Pin Hole - Stowed Position 16 Front Stowage Bracket Attachment Pin
7 Attachment Pin Hole - Locked Position 17 Left Side Boom Extension Jack Screw
8 Ramp 18 Left Side Boom Extension Attachment Pins
9 Ramp Stowage Bracket 19 Right Side Boom Extension Jack Screw
10 Ramp Stowage Pin 20 Right Side Boom Extension Attachment Pins
