GRT880 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
Boom Up/Down Limitation
If the Boom Up/Down Limitation is selected from the menu of
WRL limitations, then the Boom Up/Down Limitation Screen
will be shown (Figure 3-22).
Using the Left Arrow and Right Arrow function on the display
or the jog dial changes the object highlighted on the screen.
As the arrow keys are pressed, the highlight will move
between the objects, with the color orange typically meaning
that the object is selected and can be affected by
subsequent actions. In Figure 3-22, one can see that the
symbol for the maximum boom angle is selected
since it has the orange color highlighting. Table 3-4: shows
the objects available on the Boom Up/Down Limitation
Screen. Note that the boom angle cannot be typed in (as is
possible with the Height Limitation).

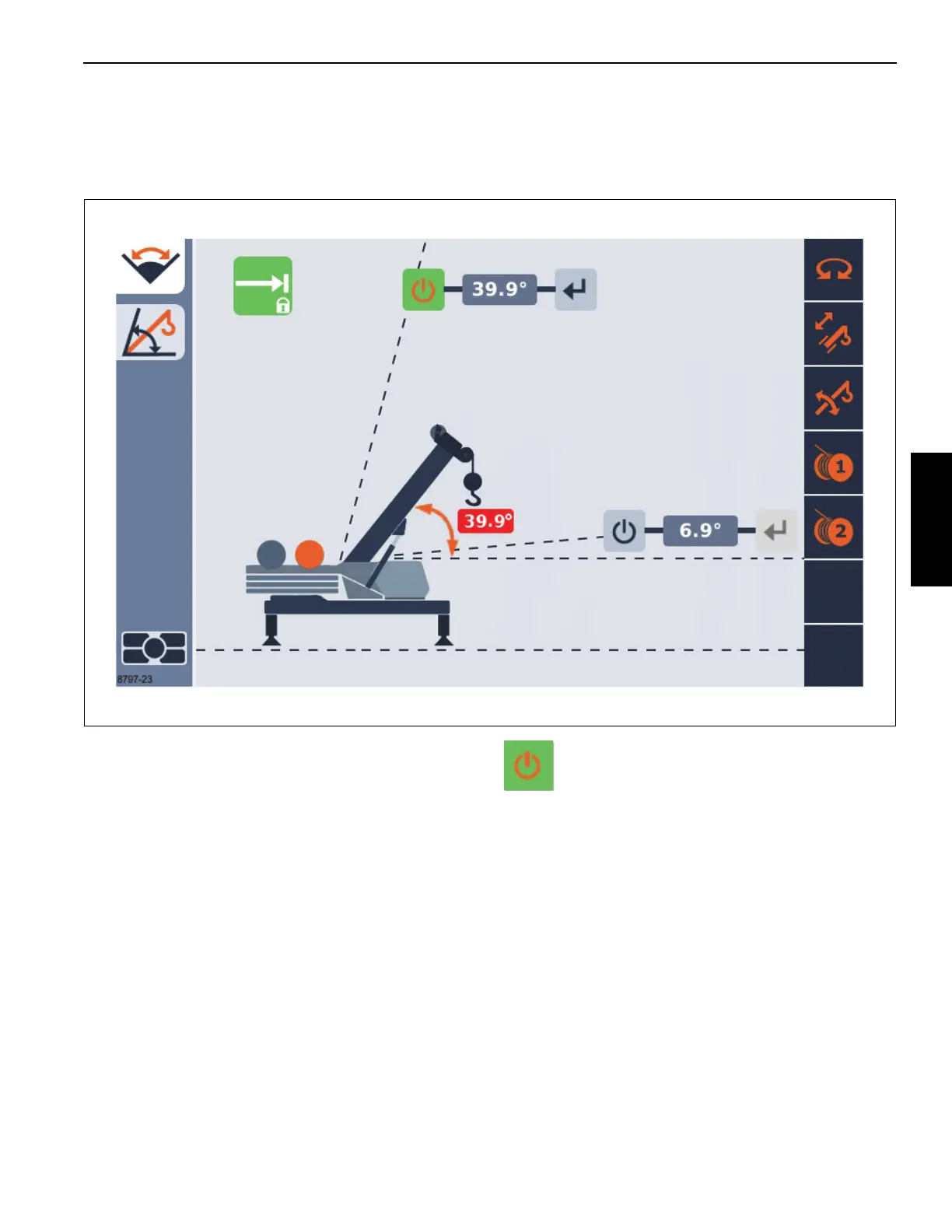

FIGURE 3-22
8797-23
Boom Up/Down Limitation Screen
