GRT880 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES

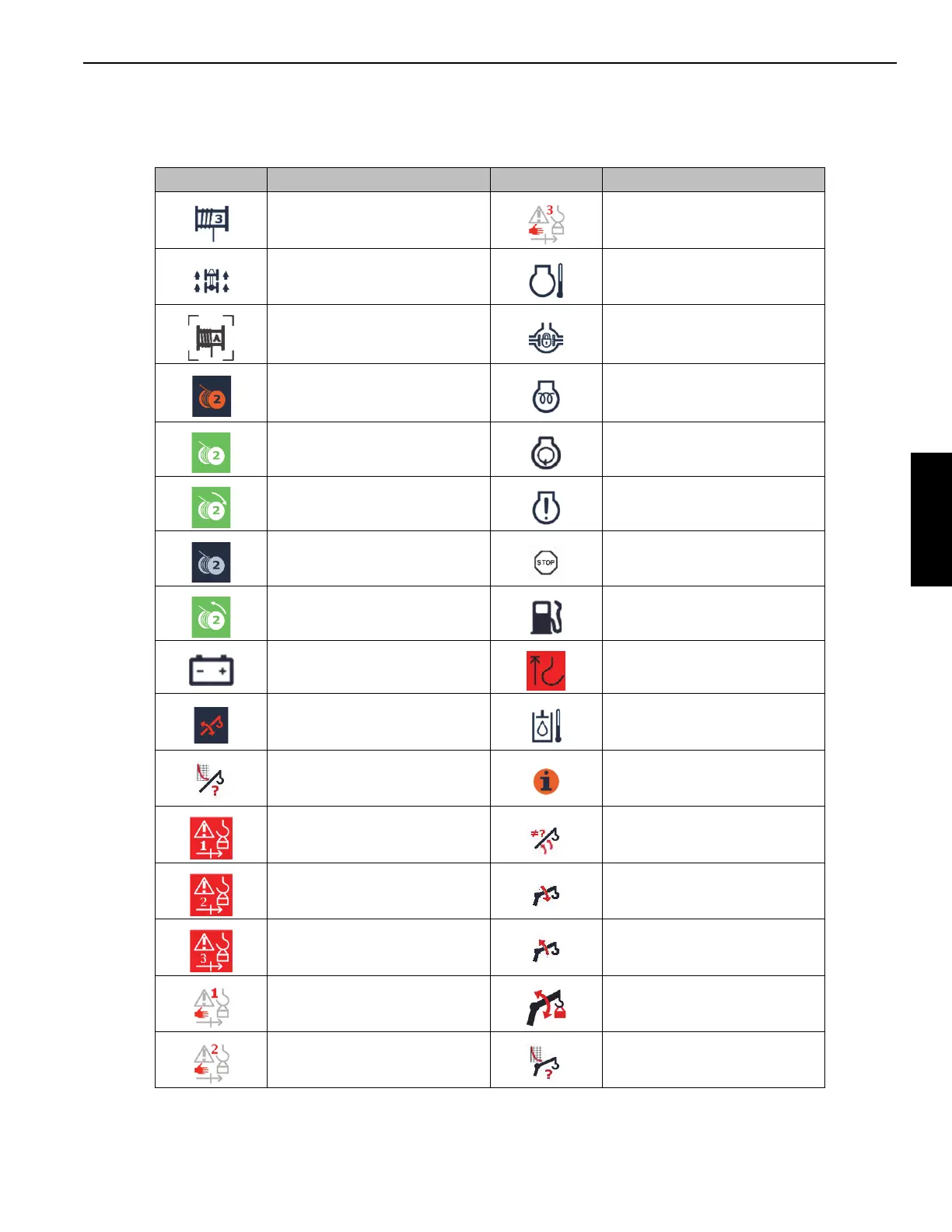

Crane Control System (CCS) Symbols and
Icons
Symbol Description Symbol Description
3rd Wrap Warning Bypass 3 Pressed
4-Wheel Drive Coolant Temp
Auxiliary Hoist Status Differential Lock
Auxiliary Hoist Disabled Engine Preheat
Auxiliary Hoist Enabled Engine Speed (RPM)
Auxiliary Hoist Raise Engine Warning (Error)
Auxiliary Hoist Not In Use Emergency Stop
Auxiliary Hoist Lower Fuel Level
Battery Voltage Hoist Limit Switch Shutdown
Boom Lift Status Hydraulic Oil Temp
Boom No Load Chart Information Group
Bypass 1 Active Jib Angle Difference
Bypass 2 Active Jib Angle Too High
Bypass 3 Active Jib Angle Too Low
Bypass 1 Pressed Jib Load Too High
Bypass 2 Pressed Jib No Load Chart
