GRT880 OPERATOR MANUAL INTRODUCTION
1
Published 3-25-2020, Control # 643-04

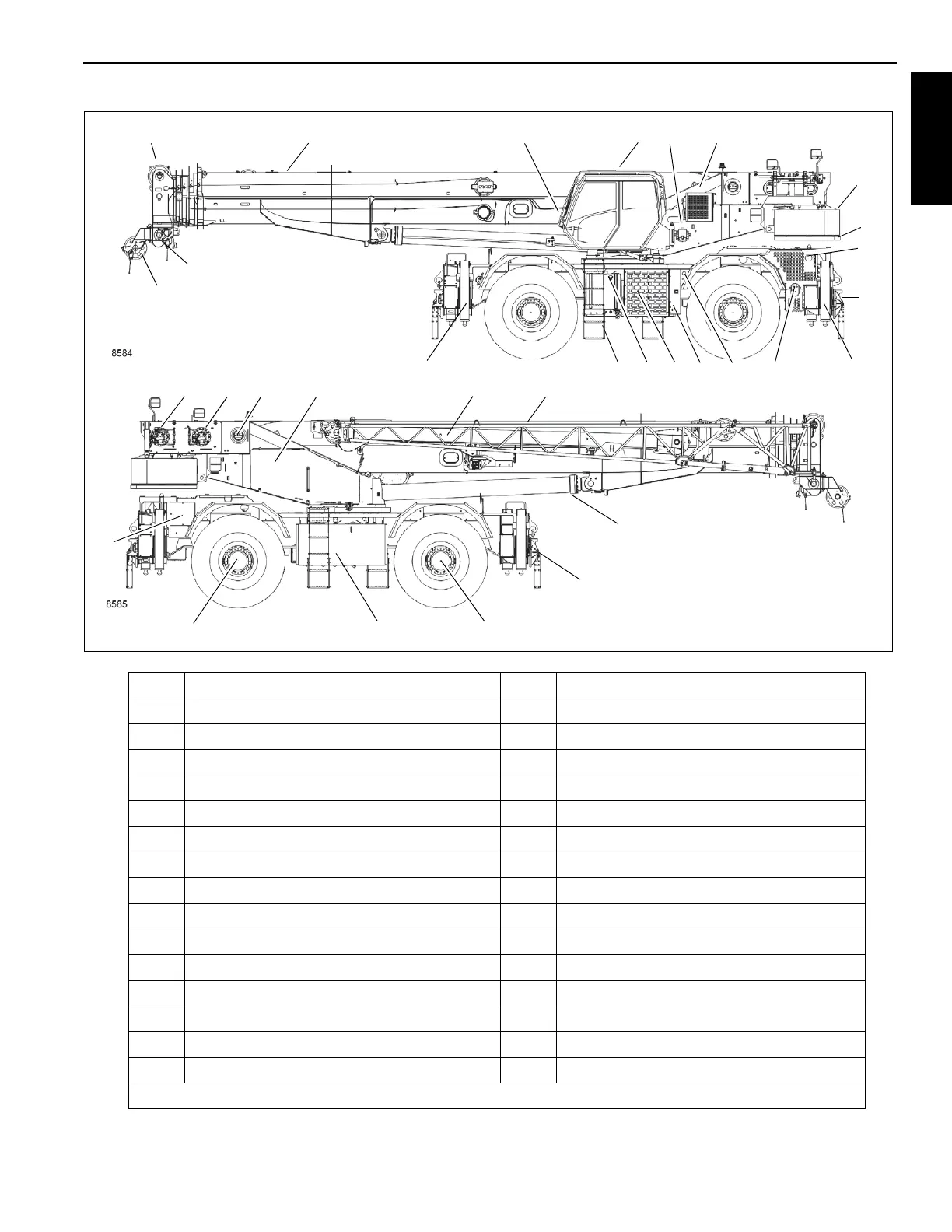

FIGURE 1-2
2
1
3
4
5
6
18
17
7
9
8
10
1213
15
16
14
20 21
22
24 25
26
10
27
28
11
11
29
30
19
23
Item Description Item Description
1
Boom Nose Sheaves
16 Fuel Tank*
2 Boom 17 Crane Steps
3 Work Lights 18 Hydraulic Valves and Swing Motor Cover
4 Tilt Cab 19 Auxiliary Boom Nose
5 Windshield Washer Fluid Container 20 Auxiliary Hoist
6 Air Conditioning Condenser 21 Main Hoist
7 Counterweight 22 Boom Pivot Pin
8 Optional Pinned Slab 23 Hydraulic Valves and Swing Motor Cover
9 Muffler 24 Boom Extension
10 Outrigger Pads 25 Swingaway Extension
11 Outrigger Jack Cylinder 26 Lift Cylinder
12 Diesel Exhaust Fluid (DEF) Tank (Tier 4 only) 27 Front Axle
13 Battery Disconnect Switch 28 Hydraulic Fluid Tank
14 Battery and CANbus Compartment 29 Rear Axle
15 Hydraulic Oil Cooler 30 Air Intake Cleaner
*Tier 4 engines use Ultra Low Sulfur Fuel (Max 15 ppm) and Diesel Exhaust Fluid (DEF).
