Grove Published 3-25-2020, Control # 643-04 4-9
GRT880 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Hookblock
Sheaves
Boom Nose
Dead End
Upper Boom
Nose Sheaves
Bottom Boom
Nose Sheaves

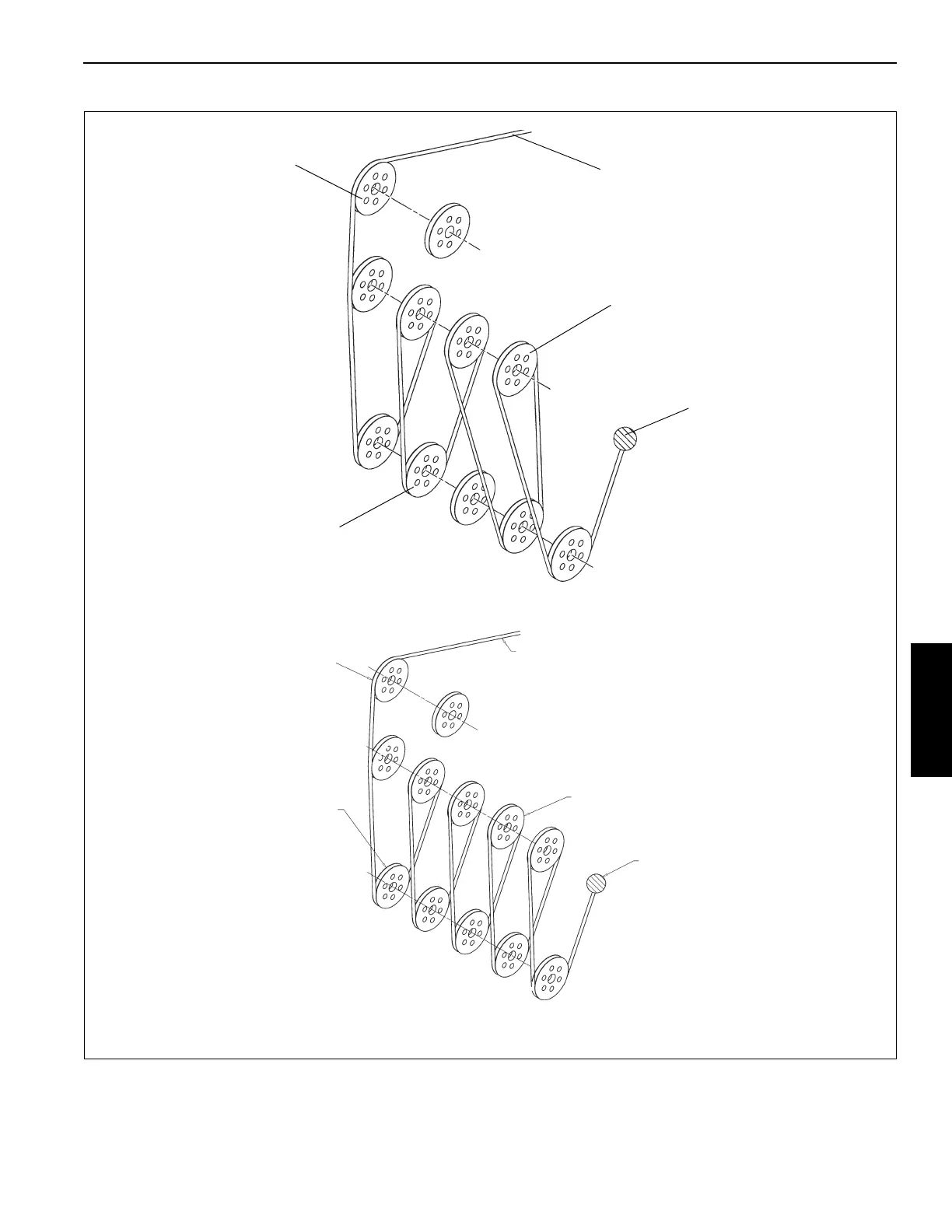

FIGURE 4-11 continued
To M a in H o is t
EIGHT PARTS LINE
TEN PARTS LINE
Upper Boom
Nose Sheaves
Hookblock
Sheaves
Boom Nose
Dead End
Bottom Boom
Nose Sheaves
To Main Hoist
