Griddle Adjustments — SIT Thermostat (continued)
Thermostatic Griddle Pilot Adjustment

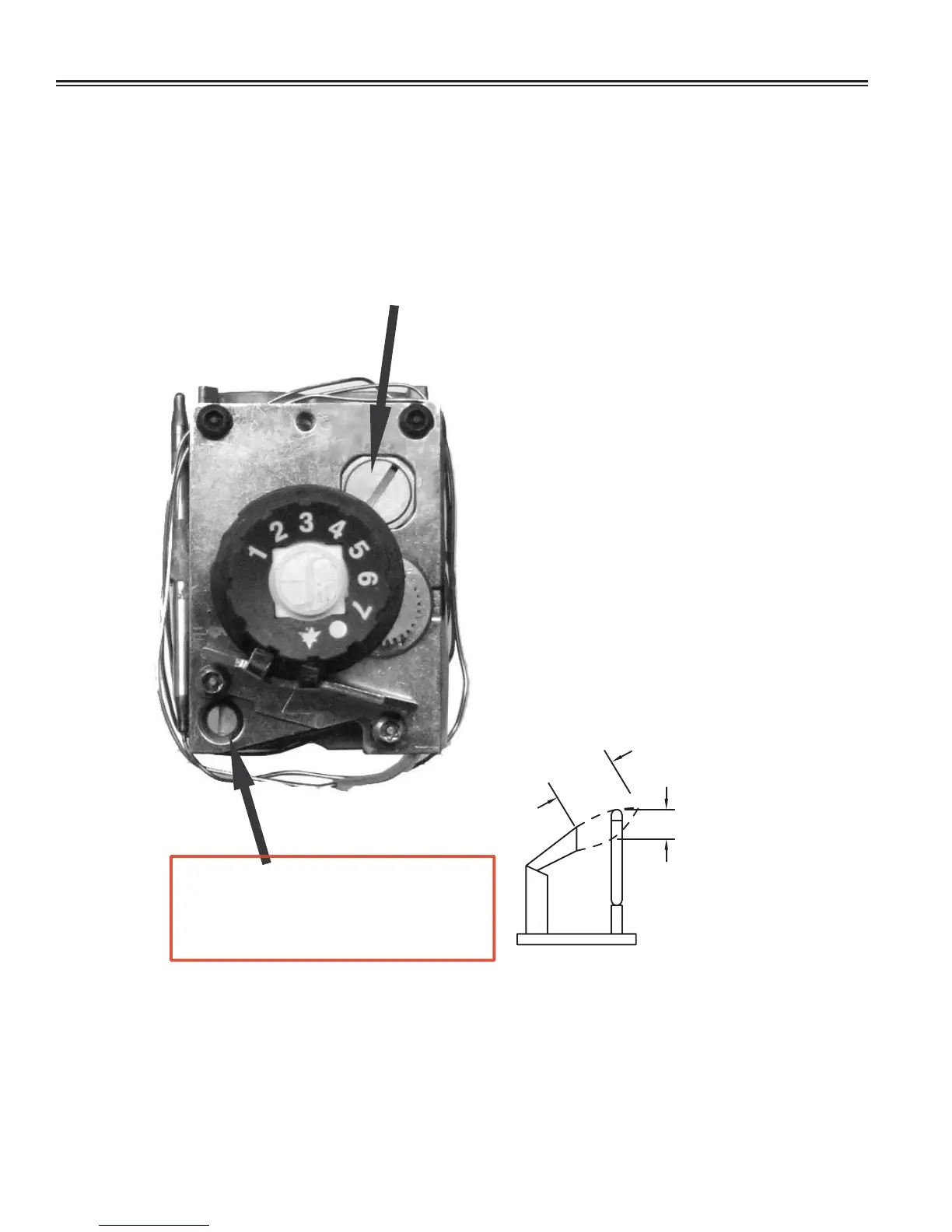

1. Adjustment with a screw located on the SIT control (refer to photo).
2. Turn the screw clockwise to reduce the gas flow.
3. Precisely adjust the pilot flame to a slight yellow tip to provide maximum performance. Flame must engulf
only the tip of thermocouple.
No adjustment here
Pilot adjustment screw. The
pilot ame should be approximately
3/4” long
3/4" long
Engulf Tip of thermocouple
