A_GC_SM_HDGASCOUNTERSERV_GT-UT-SERIES (Rev 1) Page 27
Griddle Adjustments — GS Thermostat (continued)
Replace a GS Thermostat
Note: It is not required to raise the griddle assembly for thermostat replacement.
1. Remove knobs from all valves and thermostats.
2. Un-install screws retaining the valve panel to unit and remove valve panel from unit.
3. Disconnect tubing connecting thermostat to on-off valve and to burner orifice fitting.
4. While grasping capillary line as close as possible to front edge of griddle plate, slide back the insulation
sleeve.

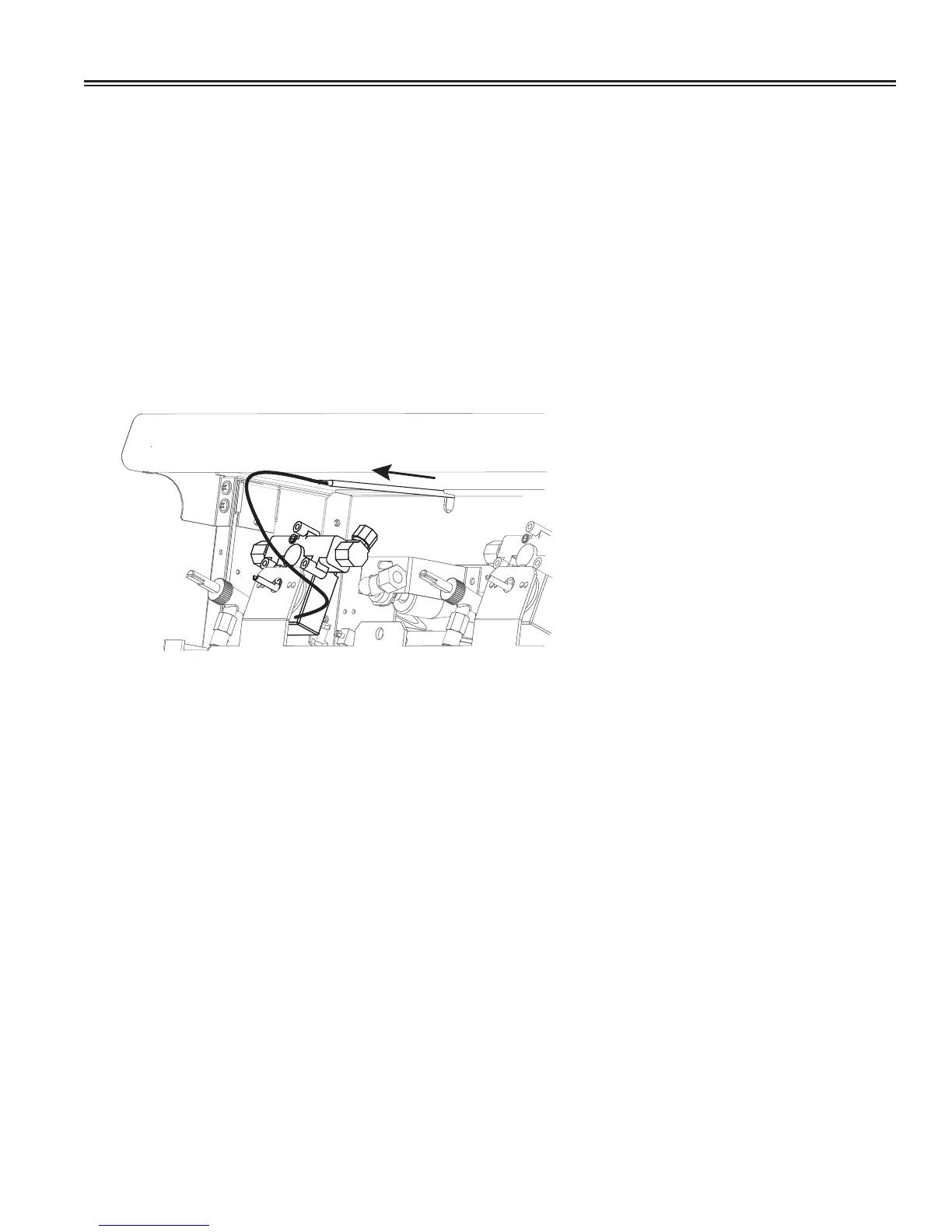

5. Carefully pull outward on capillary and slide thermostat bulb out of clamp assembly on bottom of plate.
6. Remove the insulation sleeve from capillary.
7. Unfasten screws mounting thermostat to manifold and remove thermostat from unit.
8. Mount replacement thermostat to manifold with screws removed in Step 7.
9. Slide insulation sleeve removed in Step 6 onto capillary of new thermostat.
10. Place thermostat bulb through cut-out in front support/shield and into the V-opening of clamp assembly
and push into clamp assembly until it comes to a stop.
11. Slide insulation sleeve along capillary line up to start of clamp assembly.
12. Re-install valve panel and knobs.
