Section 3 Operation
Part Number 020002392 04/09 3-1
Section 3
Operation
General System Overview
Sequence of Operation
ICE RECOMMENDED FOR DISPENSING
Dispensers are designed to dispense hard, cube ice up to one-inch square. The ice shapes and sizes listed above are
recommended for dispensing. Warm “Super Cooled” Ice Before Dispensing: “Super Cooled” ice is not recommended
for dispensing. “Super cooled” ice is ice that has been stored in freezers below 32°F. Should it be necessary to
temporarily use “super cooled” ice, allow the ice to warm at room temperature for 25 to 30 minutes before placing the
ice in the dispenser.

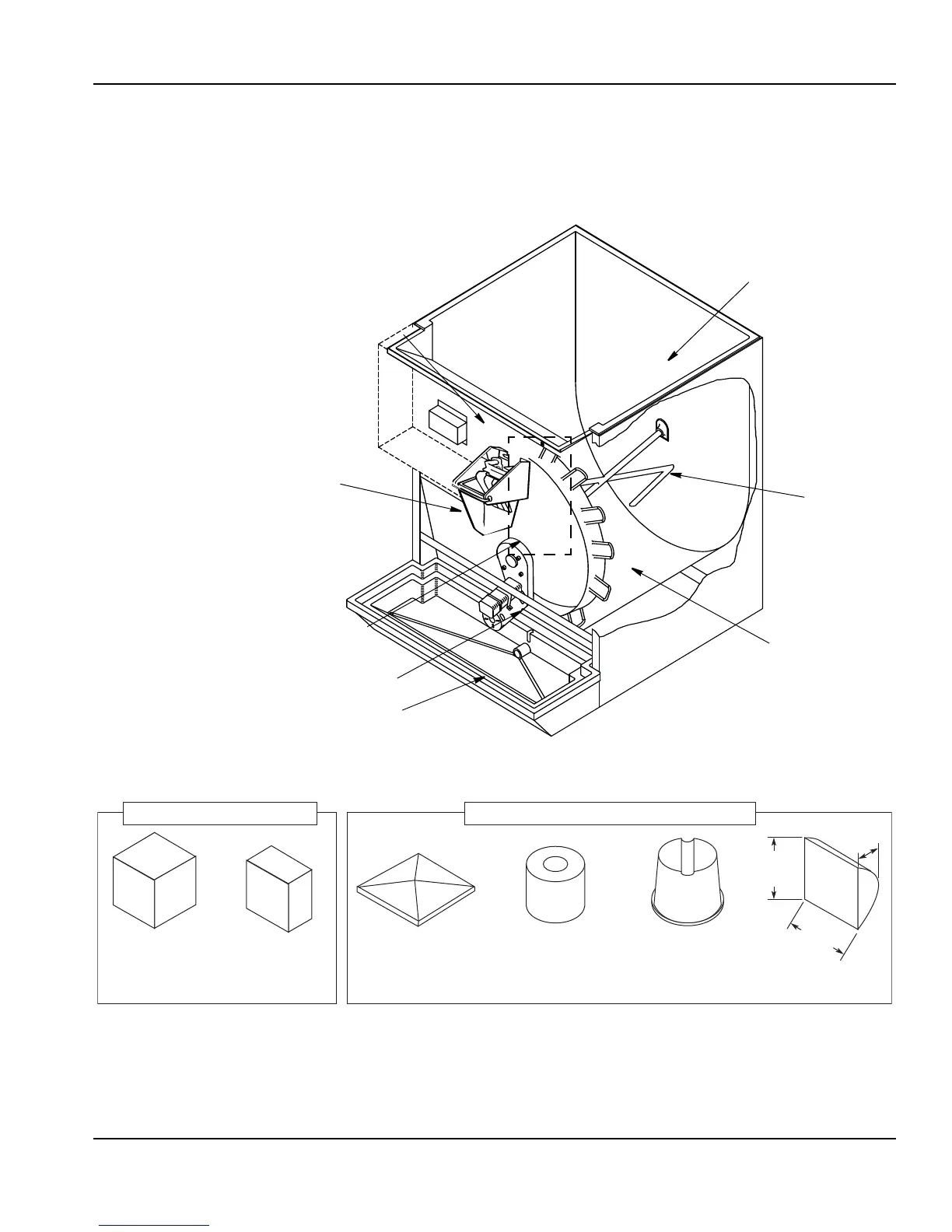

Ice Chute
Ice Bin
Electrical Box
Gear Motor
Drain Pan
Paddle Wheel
Agitator
Rocking Chute
RECOMMENDED ICE OTHER ICE SIZES AND SHAPES
Dice
7/8" x 7/8" x 7/8"
(2.2 x 2.2 x 2.2 cm)
Half Dice
3/8" x 1-1/8" x 7/8"
(1.0 x 2.9 x 2.2 cm)
Contour
3/8" x 1-1/4" x 1-1/4"
(1.0 x 3.2 x 3.2 cm)
Mini
7/8" Dia. x 3/4" Long
(2.2 cm Dia. x 1.9 cm Long)
Gourmet-Small
1" Dia. x 3/4"
(2.5 cm Dia. x 1.9 cm)
Crescent Cube
0.75"
(1.9 cm)
0.38"
(1.0 cm)
1.13"
(2.9 cm)
