Manitowoc M90 Installation, Use & Care Manual

Part Number 020002392 04/09 2-1
Section 2
Installation Instructions
General
These instructions are provided to assist the qualified
installer. Contact your Manitowoc Beverage Equipment
Service Agent or call Manitowoc Beverage Equipment
for information regarding start-up services.
Location
The location selected for the beverage dispenser must
meet the following criteria. If any of these criteria are not
met, select another location.
• The air temperature must be at least 50°F (10°C), but
must not exceed 95°F (35°C).
• The location must not be near heat-generating
equipment or in direct sunlight and must be protected
from weather.
• The countertop must be level. Verify that the
countertop can support the weight of the dispenser,
or the dispenser/ice machine combination plus the
weight of the stored ice.
• Water lines, drains and power outlet must be within 6'
(1.8 m) of location.

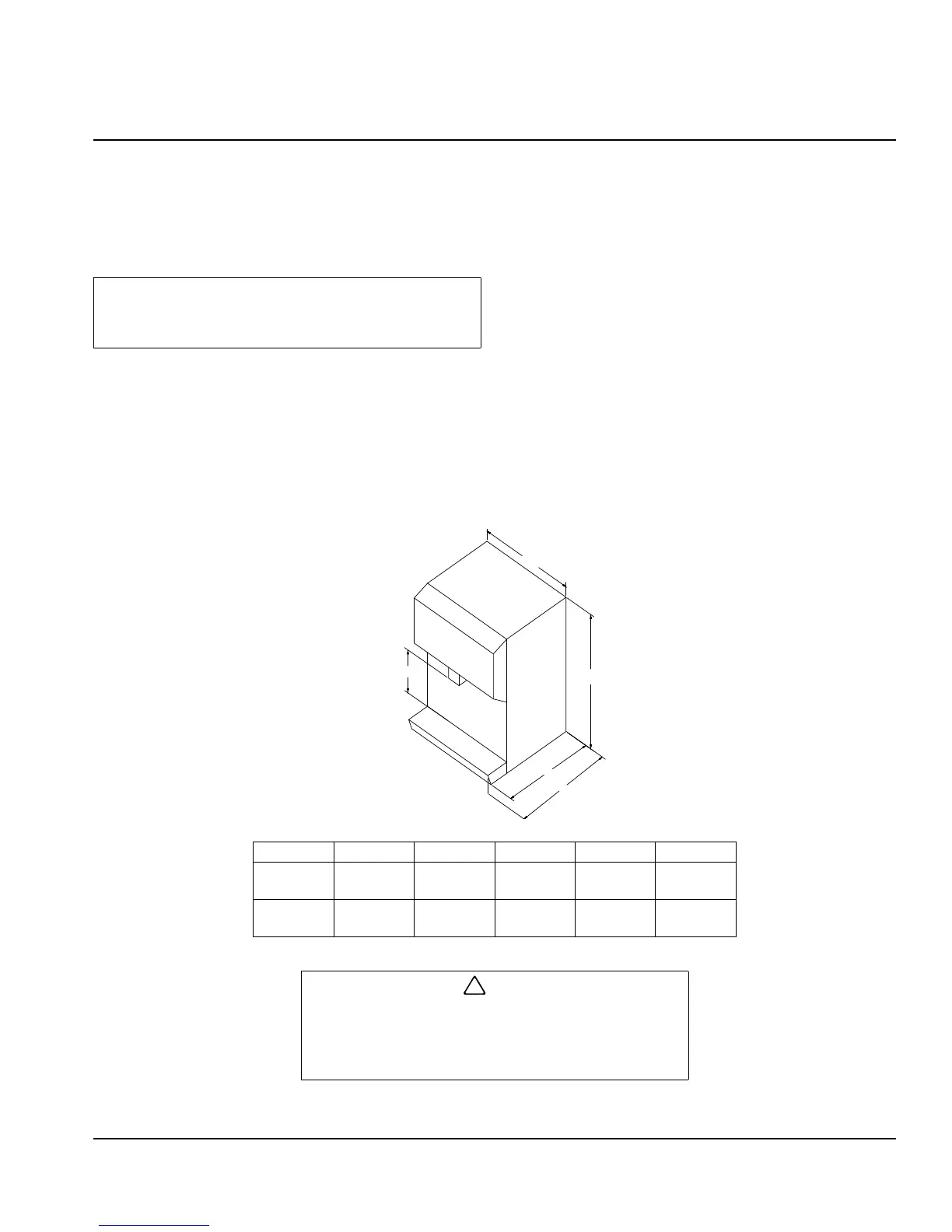

Dimensions
Important
Failure to follow these installation guidelines may
affect warranty coverage.
M SeriesABCFG
45 24.25"
(38.10 cm)
15"
(38.01 cm)
9.75"
(24.8 cm)
26.00"
(66.00 cm)
28"
(71.10 cm)
90 32.00"
(81.30 cm)
15"
(38.10 cm)
9.75"
(24.8 cm)
26.00"
(66.00cm)
28"
(71.10cm)
!
Caution
Cutting the countertop may decrease its strength.
Counter must be braced to support the dispenser
countertop weight plus ice storage capacity and
weight of icemaker, if applicable.
C
A
B
F
G
