SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-12
Published 12-10-19, Control # 258-05

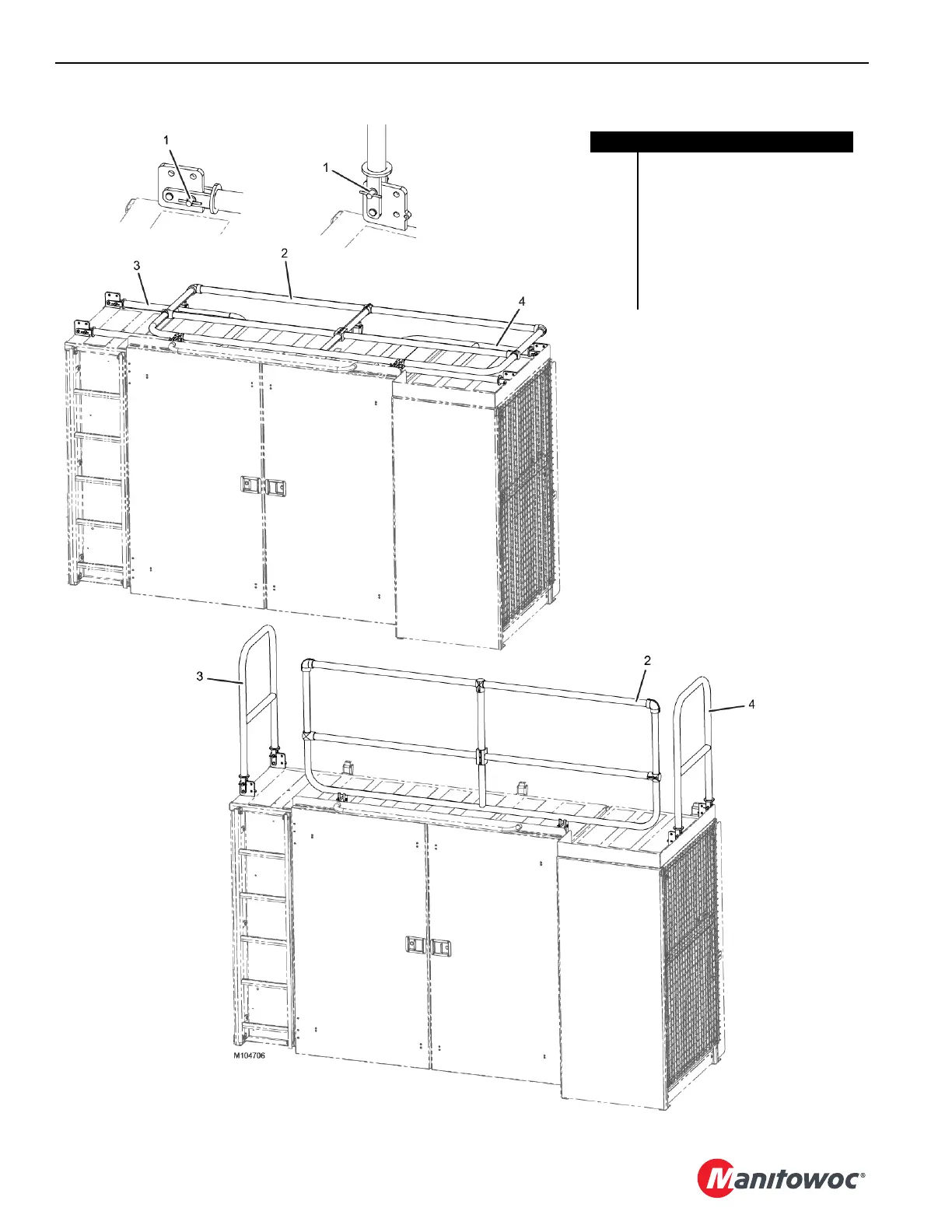

Figure 4-7
Item Description
1 Quick-Release Pin or Safety Pin
(qty 6 right side, qty 6 left side)
2 Handrail, Left
3 Handrail, Left-Front
4 Handrail, Left-Rear
5 Handrail, Right-Single
6 Handrail, Right
7 Handrail, Right-Rear
View C
Left Side STORED
View D
Left Side WORKING
View A
STORED
View B
WORKING
