OPERATING CONTROLS AND PROCEDURES MLC90A-1/MLC100-1 OPERATOR MANUAL
3-12
Published 12-10-19, Control # 258-05
Left Console

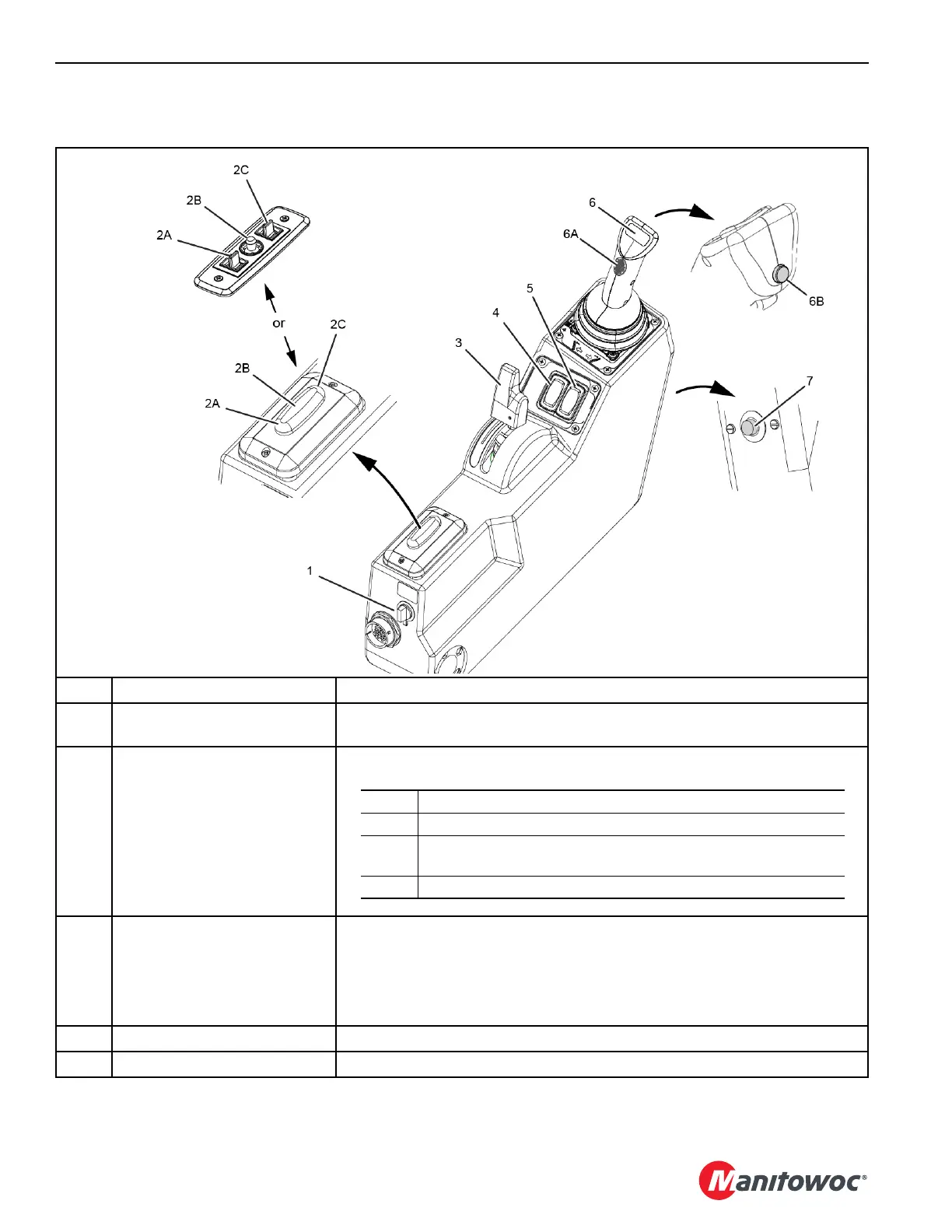

Table 3-4. Left Console
Item Name Description
1 12VDC Power Source
Maximum current draw is 10A. For fuse location, see Section 3 of the Service
Manual.
2 Seat Riser Control
3 Hand Throttle
• Move the handle FORWARD to DECREASE the engine speed.
• Move the handle BACK to INCREASE the engine speed.
Engine speed must be fast enough to provide sufficient power for the work
being done. The engine can stall under the load if the engine speed is too
slow.
4 Plug Not Used
5 Plug Not Used
Item Description
A Engage this switch to raise or lower the rear riser.
B
Engage this switch to raise and lower the seat and to move the
seat forward or backward.
C Engage this switch to raise or lower the front riser.
