SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-32
Published 12-10-19, Control # 258-05

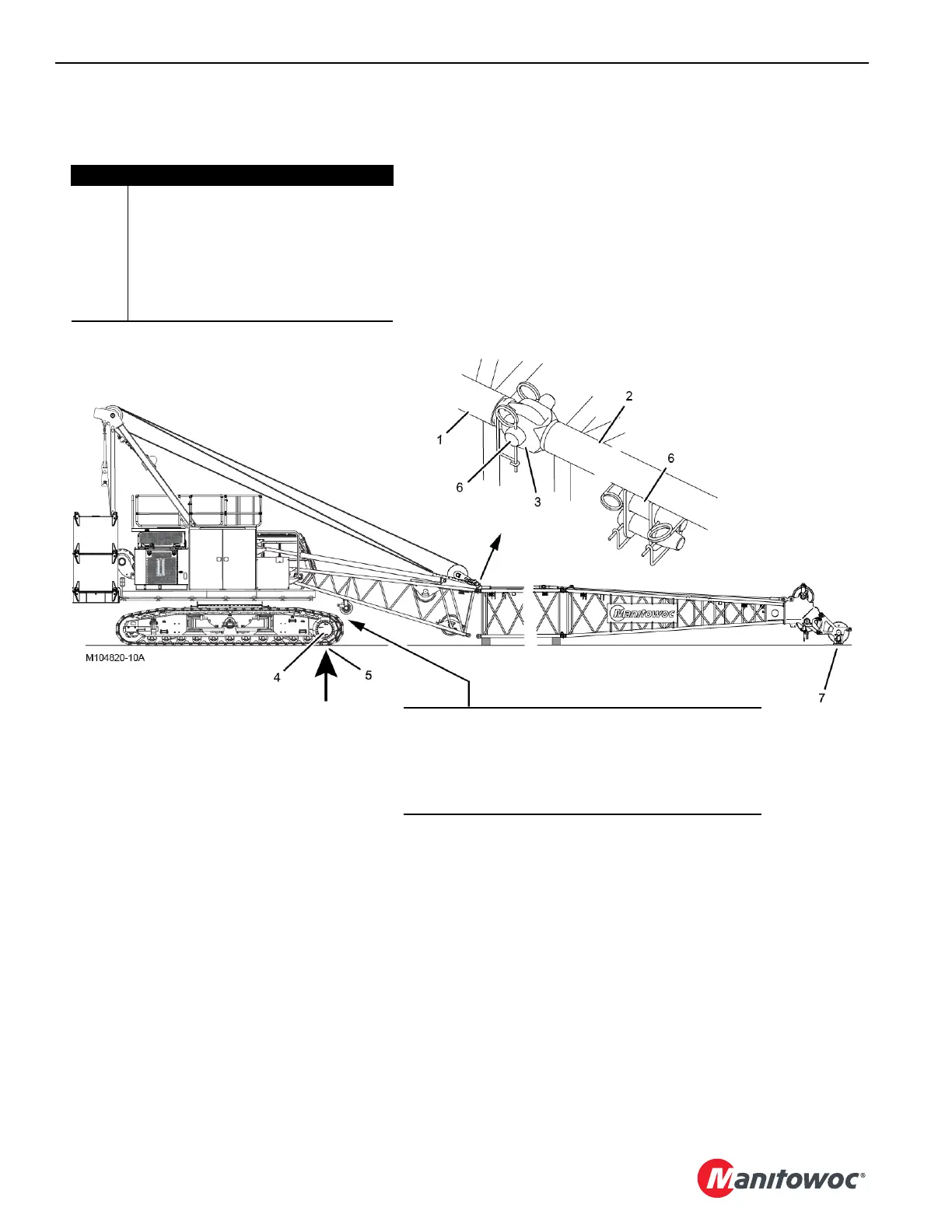

Figure 4-19
Item Description
1Boom Butt
2Boom Insert
3 Top Connectors
4 Tumbler or Roller
5 Blocking
6 Top Connector Pins with Safety Pins
7 Upper Boom Point Stands
View A
View B
CAUTION
Avoid Sheave Damage!
Use extreme care while swinging so the rope guide under
the boom butt does not hit the crawlers (or carbody
counterweight if installed).
STORED (2 places)
