SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-34
Published 12-10-19, Control # 258-05

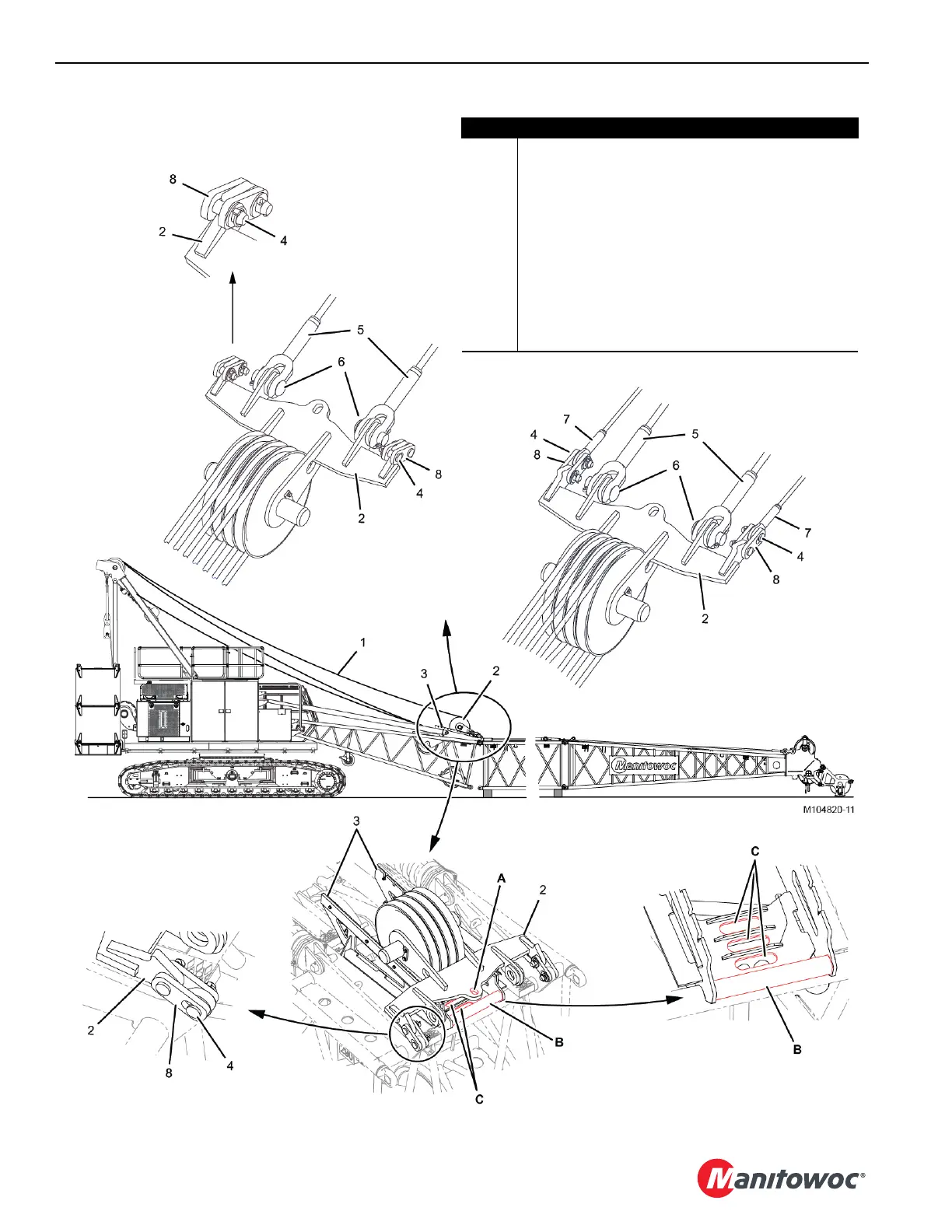

Figure 4-20
Item Description
1 Boom Hoist Wire Rope
2 Equalizer
3 Equalizer Rails
4 Tie-Back Pin with Flat Washer and Locking Pin (Qty 2)
5 Insert Pendant (Qty 2)
6 Pendant Pin (Qty 2)
7 Intermediate Suspension Pendant (Qty 2)
8 Tie-Back Link (Qty 4)
A Pry Bar Hole in Equalizer
B Pry Bar Beam
C Pry Bar Slot (Qty 3)
View B
View C
View E
View F
View D
View A
