Manitowoc Published 12-10-19, Control # 258-05 1-3
MLC90A-1/MLC100-1 OPERATOR MANUAL INTRODUCTION
3
1

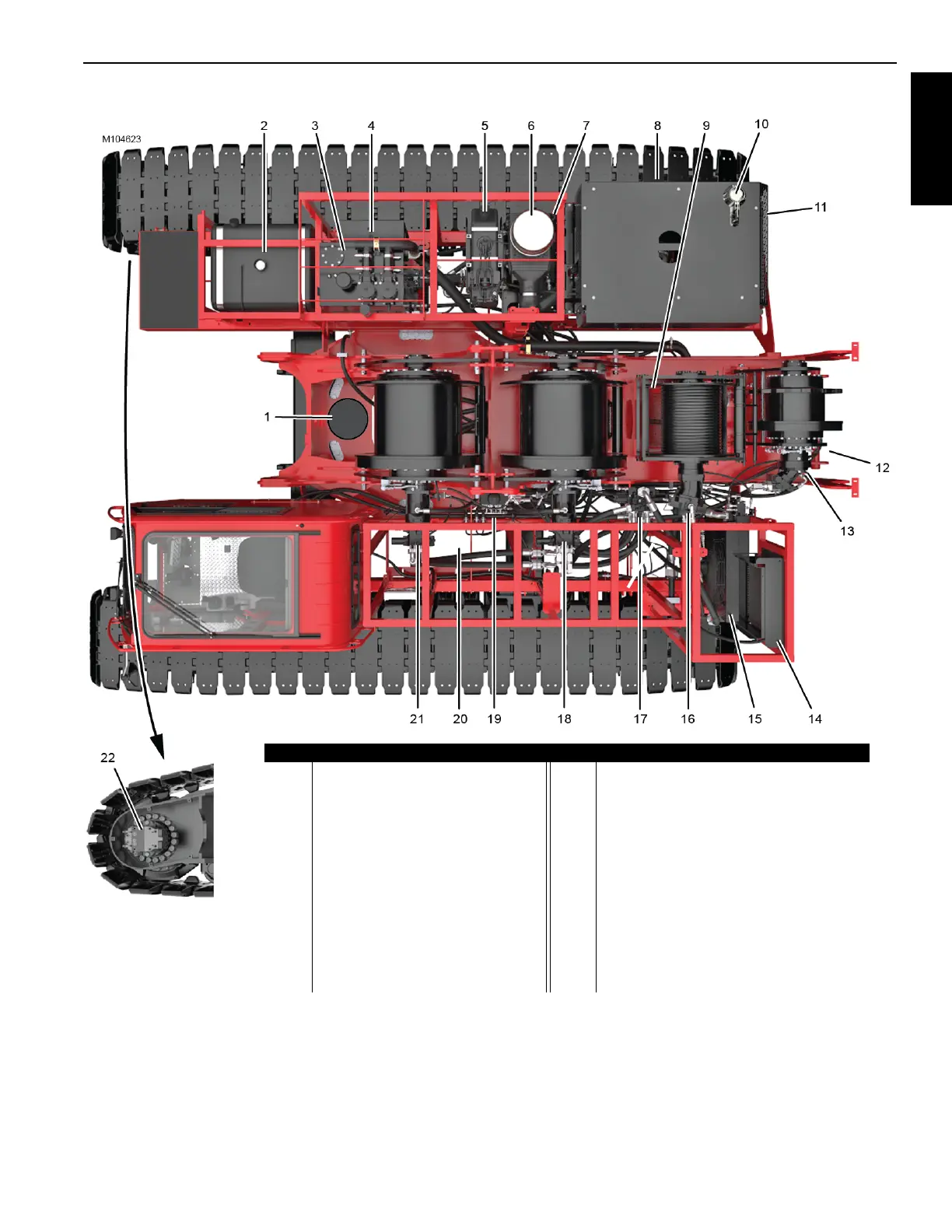

Figure 1-4. Top View
Item Description Item Description
1
Swing Drive
1
12 Counterweight Pins
2 Fuel Tank
13
Drum 4 Drive
3
3 Hydraulic Tank 14 A/C Condenser
4 Battery Box 15 Hydraulic Oil Cooler
5 Tier 4 DEF Tank
16
Drum 3 Drive
3
6 Engine Air Cleaner 17 Main Control Valve
7 Pump Drive and Pump
18
Drum 2 Drive
3
8 Engine 19 Low Pressure Accessory Valve
9
High Pressure Accessory Valve
2
20 Crawler Extend/Retract Cylinder
10 Engine Exhaust System
21
Drum 1 Drive
3
11 Radiator
22
Crawler Drive (inboard side both crawlers)
4
1
Swing drive includes a planetary gearbox with swing pinion, a spring-applied brake, and a motor.
2
Inside rotating bed. Accessible from under rotating bed.
3
Each drum drive includes a drum, a planetary gearbox, a spring applied brake, and a motor.
4
Each crawler drive includes a planetary gearbox, a drive tumbler, a spring applied brake, and a motor.
