SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-48
Published 12-10-19, Control # 258-05

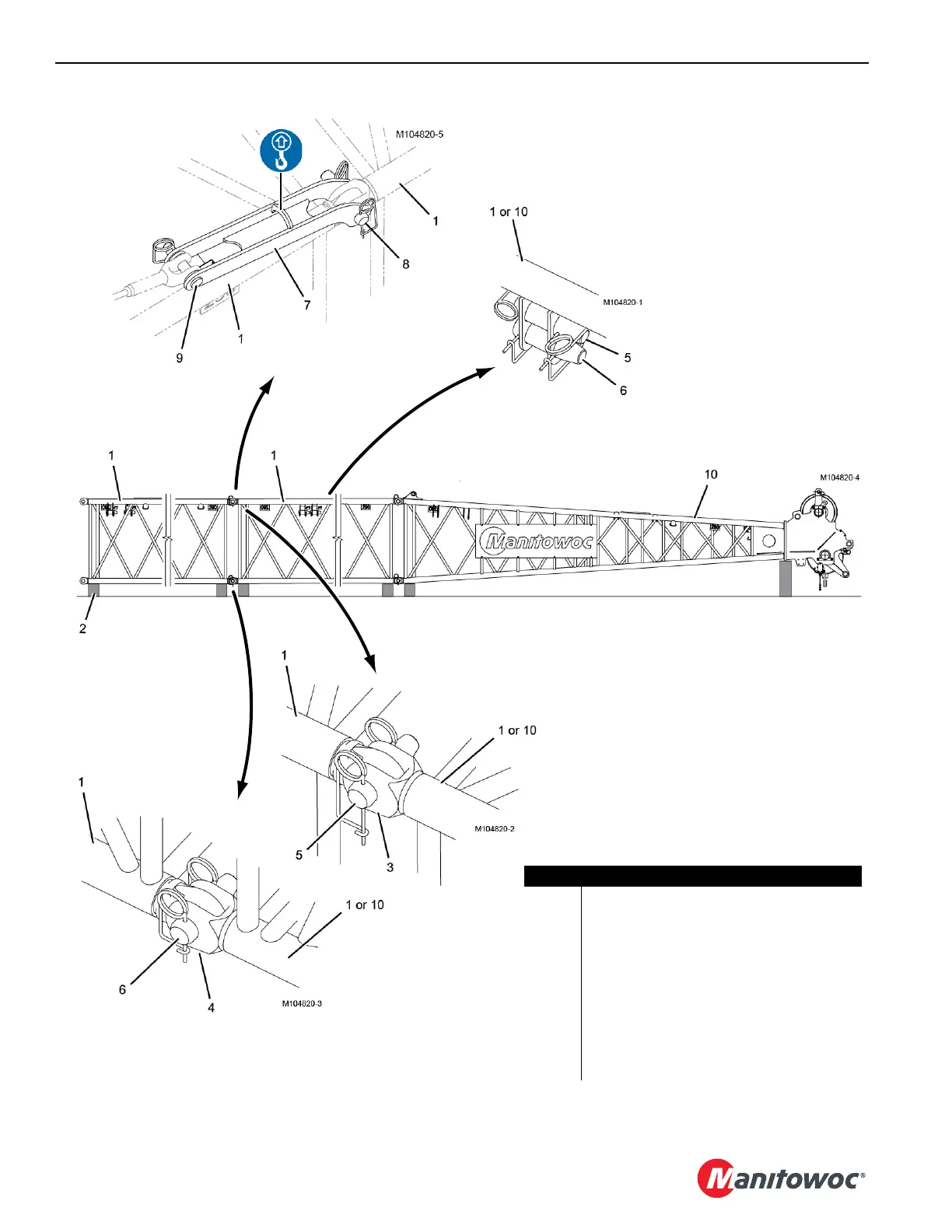

Figure 4-31
View A
View B
View C
View D
View E
Item Description
1 Insert: 3m, 6m, or 12 m
2 Blocking
3 Top Connector
4 Bottom Connector
5 Top Connecting Pin with Safety Pin
6 Bottom Connecting Pin with Safety Pin
7 Intermediate Suspension Link (Qty 2)
8 Special Top Connecting Pin with Safety Pin
9 Pendant Connecting Pin
10 Boom Top
(1)
(STORED)
