Manitowoc MLC90A-1 - Page 190

SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-80
Published 12-10-19, Control # 258-05

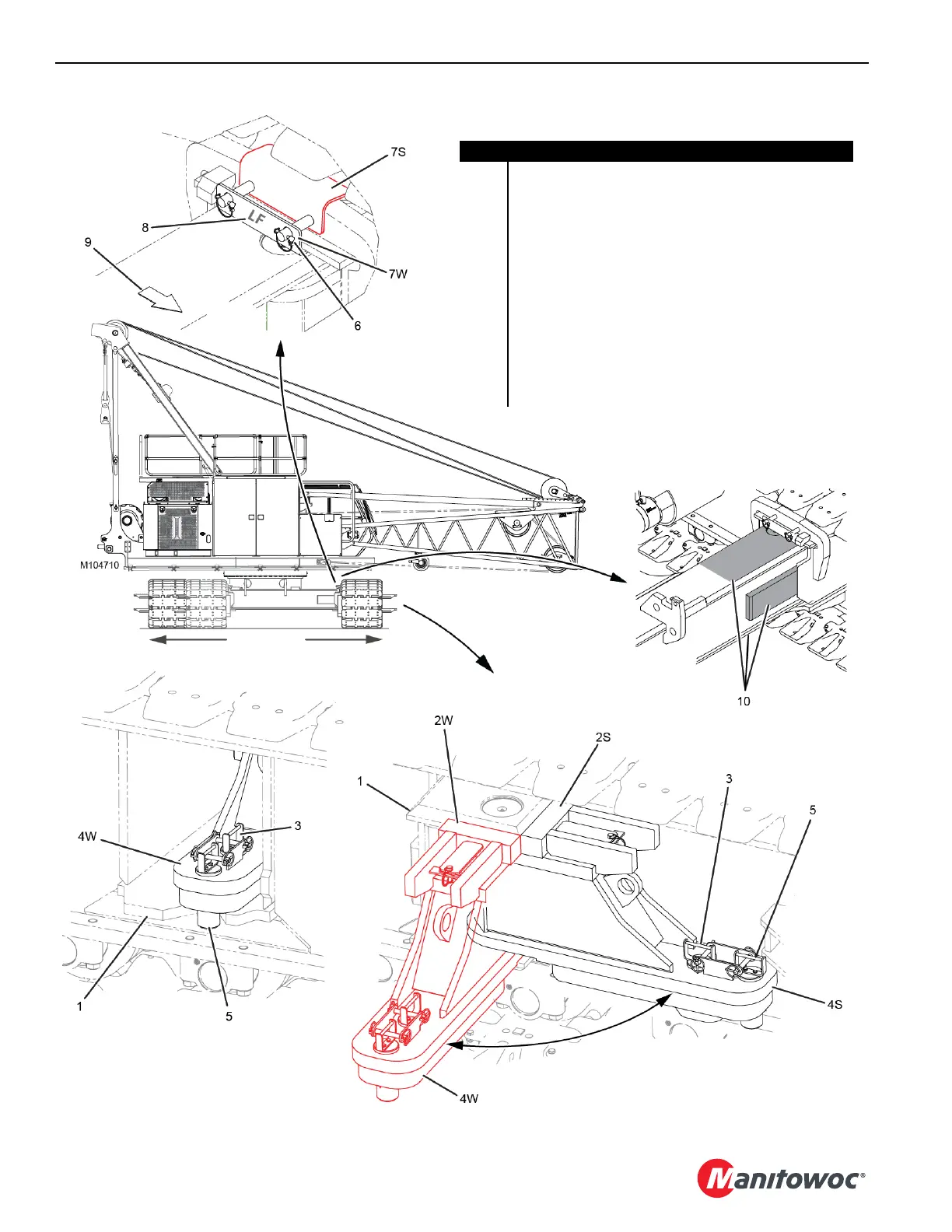

Figure 4-50
Item Description
1 Crawler (qty 2)
2 Stop Block (qty 4)
3 Locking Pin with Retaining Pin and Lynch Pins (qty 4)
4 Carbody Extension (qty 4)
5 Alignment Pin (qty 4)
6 Safety Pin (qty 8)
7Shim (qty 4)
8 Identification Number (1-4)
9 Arrow (left front carbody beam)
10 Dry Film Moly Multipurpose Lubricant
SStored
WWorking
View A
View B
WORKING
View D
View C
