MLC90A-1/MLC100-1 OPERATOR MANUAL SETUP AND INSTALLATION
3
1
4

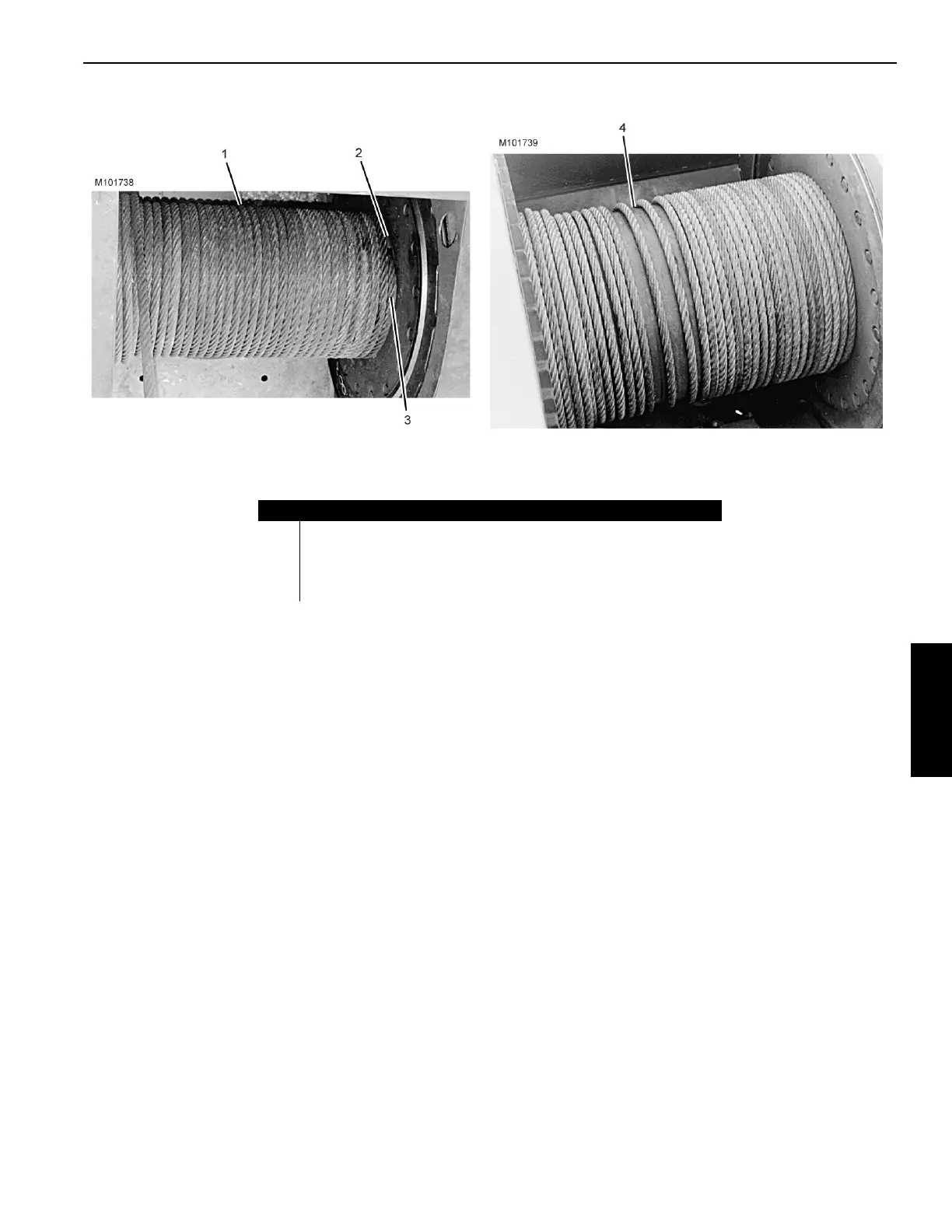

Figure 4-57
View A
View B
Item Description
1 Wraps of first layer tight against drum flanges and each other
2 Wedge
3 Tight against drum flange for 3/4 of diameter
4 Voids and loose wraps in first layer will cause sever wear of wire rope
