Manitowoc MLC90A-1 - Page 95

Manitowoc Published 12-10-19, Control # 258-05 3-47
MLC90A-1/MLC100-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
1
3

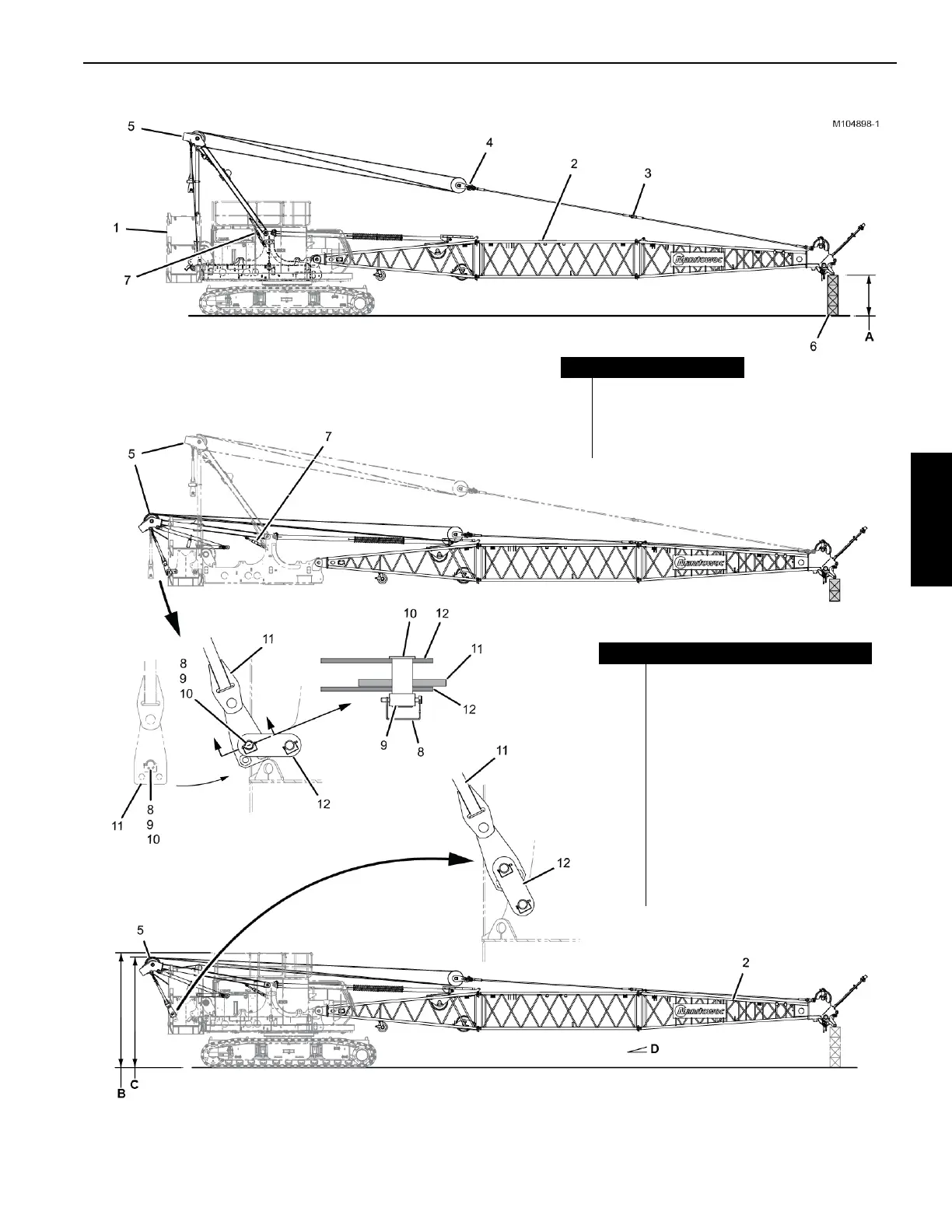

Figure 3-19. Low Clearance Travel — Fully Rigged Boom
.
Item Description
1 Counterweight (Series 1 or 2)
2 Fully Rigged Boom – 19 m (62.3 ft)
3 Boom Pendants
4 Equalizer
5Gantry
6 Blocking
7 Gantry Cylinder (Qty 2)
8 Safety Pin (Qty 2)
9 Collar (Qty 2)
10 Pin (Qty 2)
11 Counterweight Handling Link (Qty 2)
12 Tie-Down Links (Qty 4)
.
Dimension
A 1,52 m (5 ft)
B 4,30 m (14 ft 1 in)
C 4,14 m (13 ft 7 in)
D 0 to 2°
View A
View E
View B
View C
View D
