Manitowoc Published 12-10-19, Control # 258-05 3-49
MLC90A-1/MLC100-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
1
3

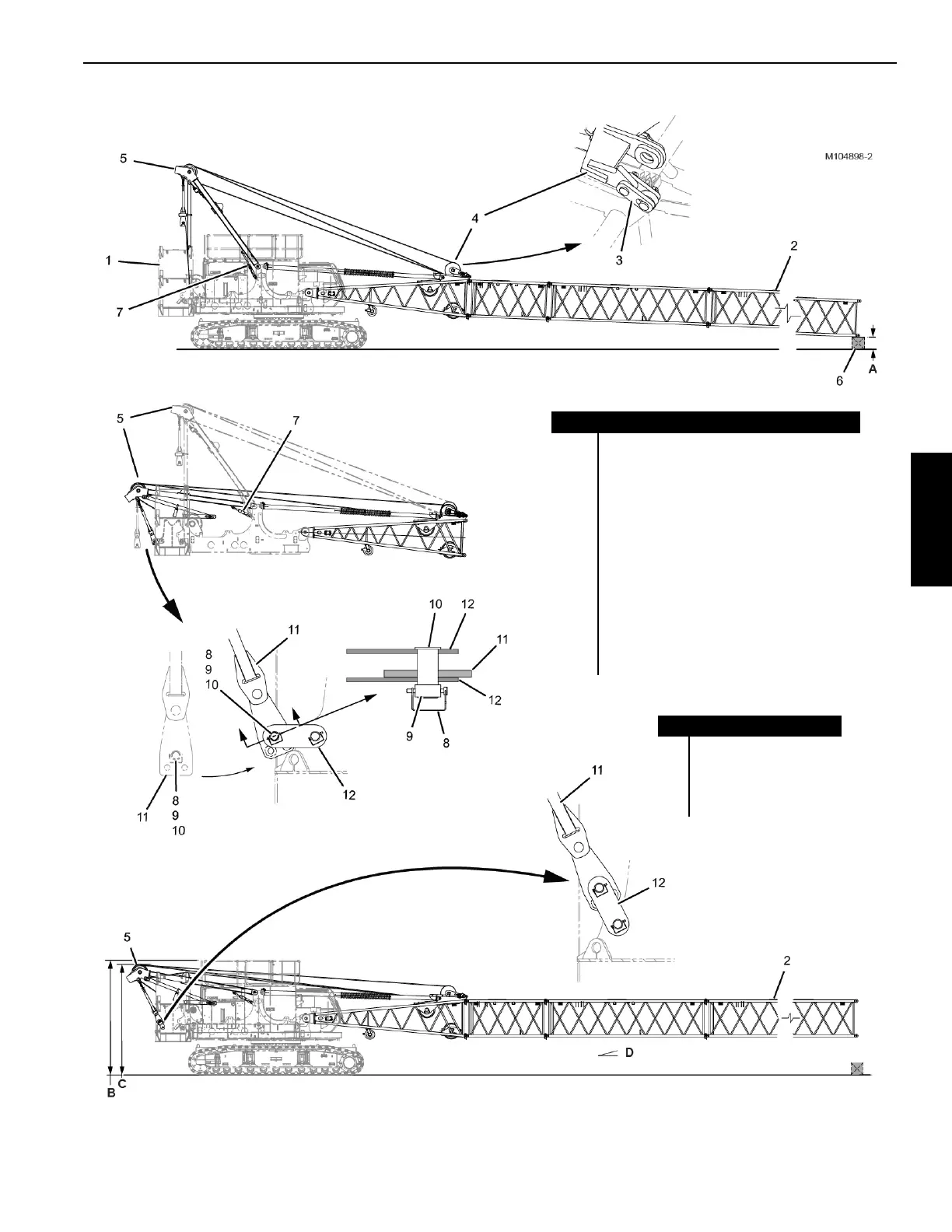

Figure 3-20. Low Clearance Travel — Cantilevered Inserts
.
Item Description
1 Counterweight (Series 1 or 2)
2 Cantilevered Boom Inserts (see Table)
3 Tie-Back Links
4 Equalizer
5Gantry
6 Blocking
7 Gantry Cylinder (Qty 2)
8 Safety Pin (Qty 2)
9 Collar (Qty 2)
10 Pin (Qty 2)
11 Counterweight Handling Link (Qty 2)
12 Tie-Down Links (Qty 4)
.
Dimension
A 457 mm (18 in)
B 4,30 m (14 ft 1 in)
C 4,14 m (13 ft 7 in)
D 0 to 2°
View B
View E
View C
View D
View F
View A
