600H SERIES OPERATOR MANUAL LUBRICATION PROCEDURE AND CHARTS
National Crane
5

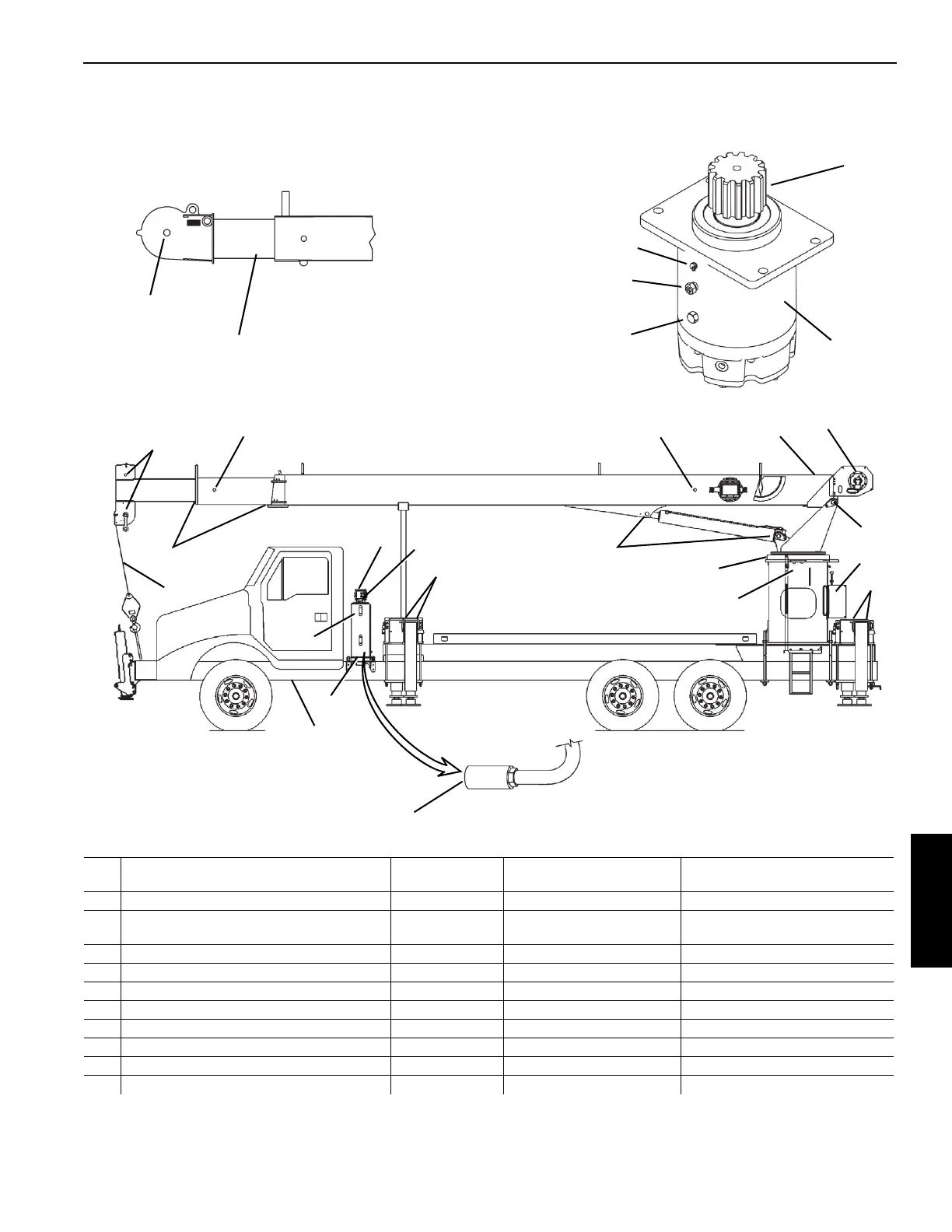

Lubrication Chart
Item Application
Recommended
Lubricant
Procedure Frequency
1 Hydraulic oil reservoir HYDO Check fill, change Weekly, semi-annually, as required
2 Oil filter, hydraulic oil reservoir Change or clean
After first 40 hrs. as indicated by
gauge thereafter.
3 Magnetic plug, hydraulic oil reservoir Clean At oil filter service interval
4 Breather, hydraulic oil reservoir Clean Monthly
5 Sheave pins: boom (2 plcs), jib (1 plc) EP-MPG Grease gun Weekly
6 Wire rope (loadline) EP-OGL Brush or spray Semi-Annually
7 Boom pivot pin EP-MPG Grease gun Monthly
8 Lift cylinder pins - 2 ea. EP-MPG Grease gun Monthly
9 Swing bearing (turret) EP-MPG Grease gun Weekly
10a Pump drive U-Joint 2 ea. EP-MPG Grease gun Weekly
16
Oil Fill/Breather
14
19
Oil Drain
13
15
5
21
20
5
18
16
8
22
4
10a
10b
NOTE: Torque diffuser to
51 lb-ft (69 Nm). Openings
must face bottom of tank.
1
6
2
3
7
9
12
11a
11b
18
23
