Manitowoc Q130 User Manual

Part Number 000001130 12/08 2-1
Section 2
Installation Instructions
General
These instructions are provided to assist the qualified
installer.

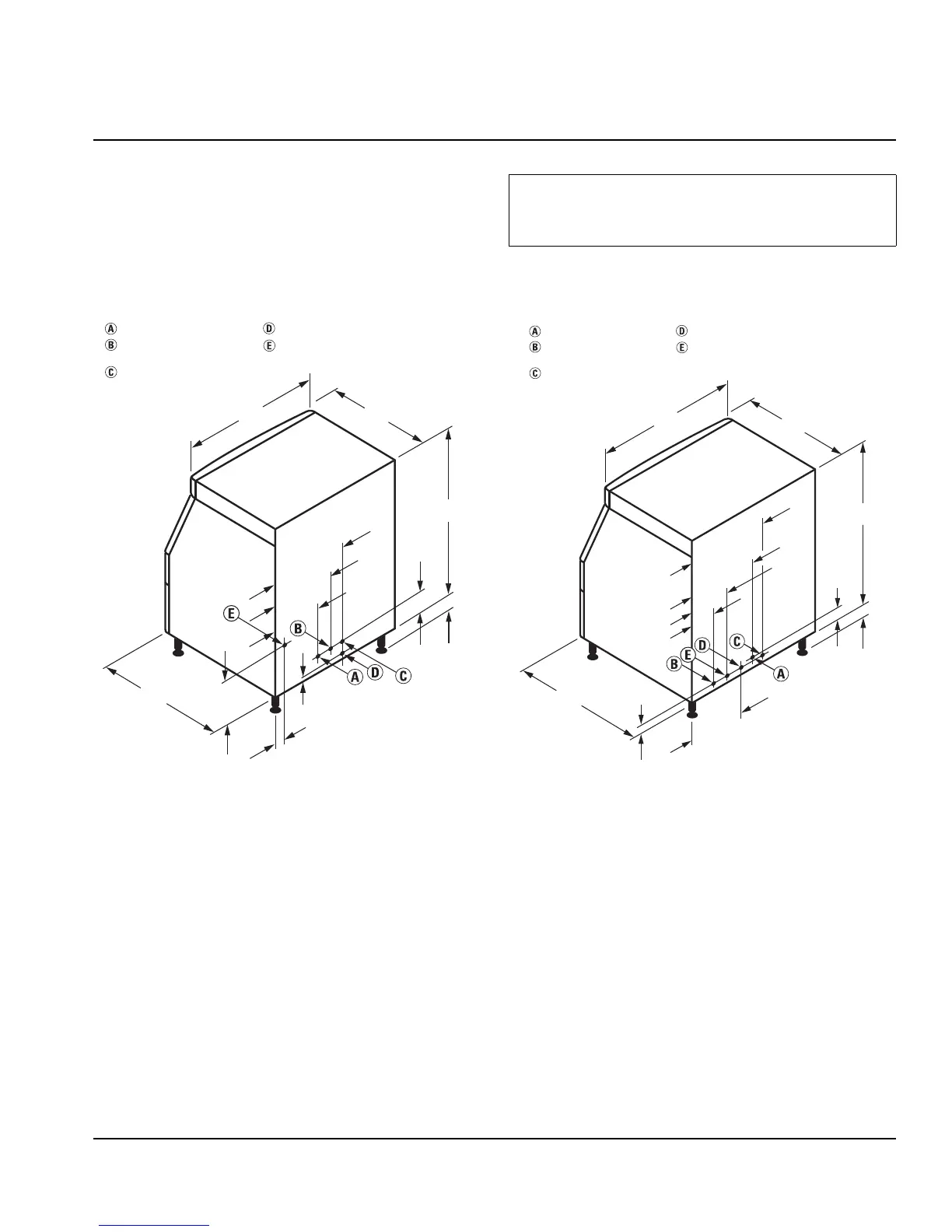

Ice Machine Dimensions
Q130/Q210 ICE MACHINES Q270 ICE MACHINES
Important
Failure to follow these installation guidelines may
affect warranty coverage.
Electrical Entrance
3/8” (0.95 cm) FPT
Ice Making Water Inlet
1/2” (1.27 cm) Minimum FPT
Water Condenser Outlet
(water-cooled units)
3/8” (0.95 cm) FPT Water Condenser Inlet
1/2” (1.27 cm) FPT Bin Drain
26.0” (66 cm)
19.0” (48.3 cm)
32.5”
(82.6 cm)
3.3”
(8.3 cm)
6.0”
(15.25 cm)
10.25”
(26 cm)
15.25”
(38.7 cm)
12.3”
(31.2 cm)
6.5”
(16.5 cm)
26.5” (67.3 cm)
1.25” (3.2 cm)
2.1” (5.4 cm)
28.2" (71.5 cm)
30.0" (76.2 cm)
20.7" (52.6 cm)
6.0"
(15.25 cm)
32.5"
(82.6 cm)
1/2" (1.27 cm) Bin Drain
Electrical Entrance
3/8" (0.95 cm) F.P.T.
Ice Making Water Inlet
1/2" (1.27 cm) F.P.T.
Water Condenser Outlet
(water-cooled units)
1/2" (1.27 cm) F.P.T. Water Condenser Inlet
1.25"
(3.2 cm)
6.8"
(17.4 cm)
11.2"
(28.4 cm)
8.8"
(22.4 cm)
13.5"
(34.2 cm)
12.4"
(31.4 cm)
2.125"
(5.4 cm)
