Part Number STH039 8/13 31

G. Remove the Water Trough

• Apply downward pressure on the siphon tube and

remove from the bottom of the water trough.

• Remove the upper thumbscrew.

• While supporting the water trough remove the two

thumbscrews from beneath the water trough.

• Remove the water trough from the bin area.

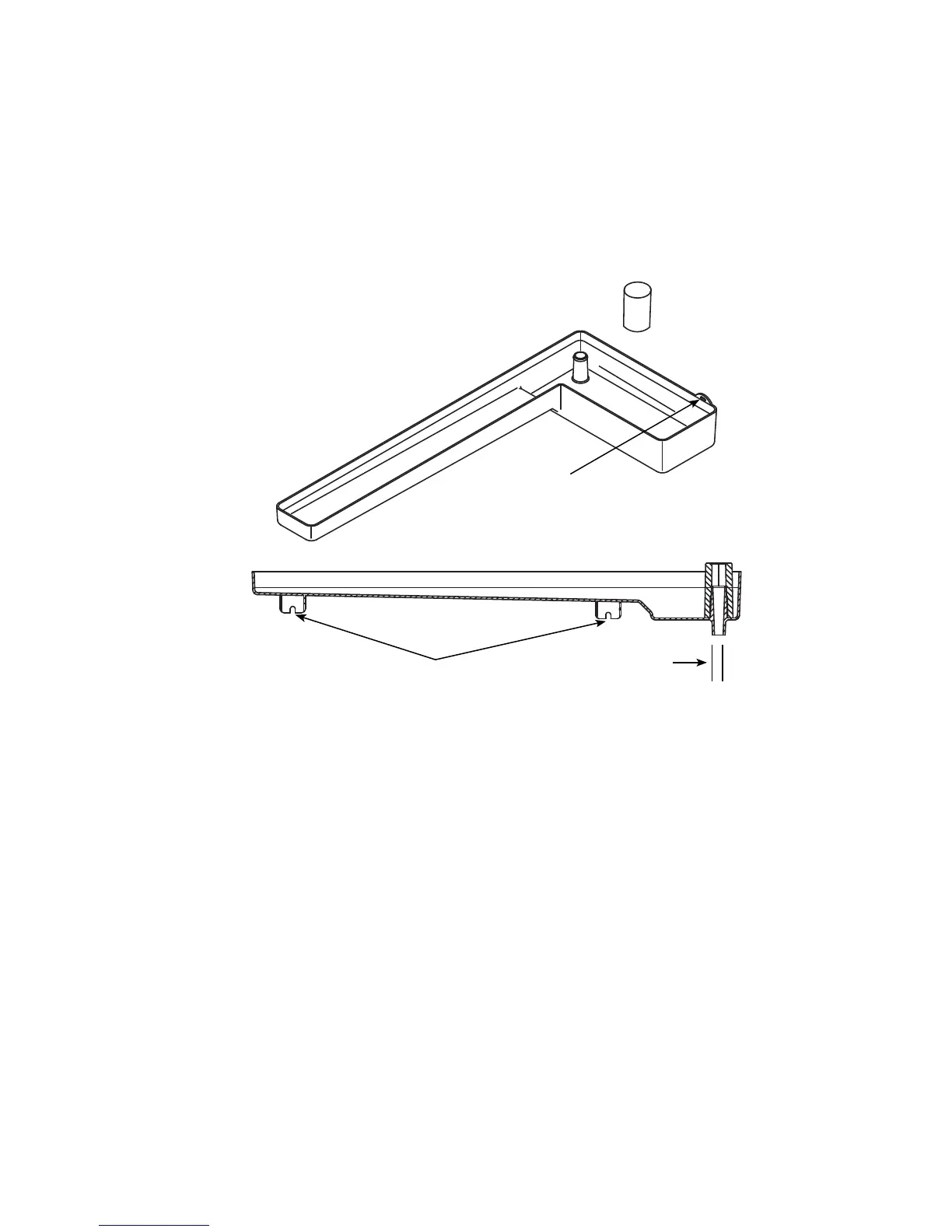

Remove Water Trough

SV1689-1

UPPER

THUMBSCREW

SV1689-2

LOWER

THUMBSCREWS

REMOVE

SIPHON

TUBE
