SELF-CONTAINED CHARGING PROCEDURES
1. Be sure the toggle switch is in the OFF position.
Important
The charge is critical on all Manitowoc ice
machines. Use a scale or a charging cylinder to
ensure the proper charge is installed.

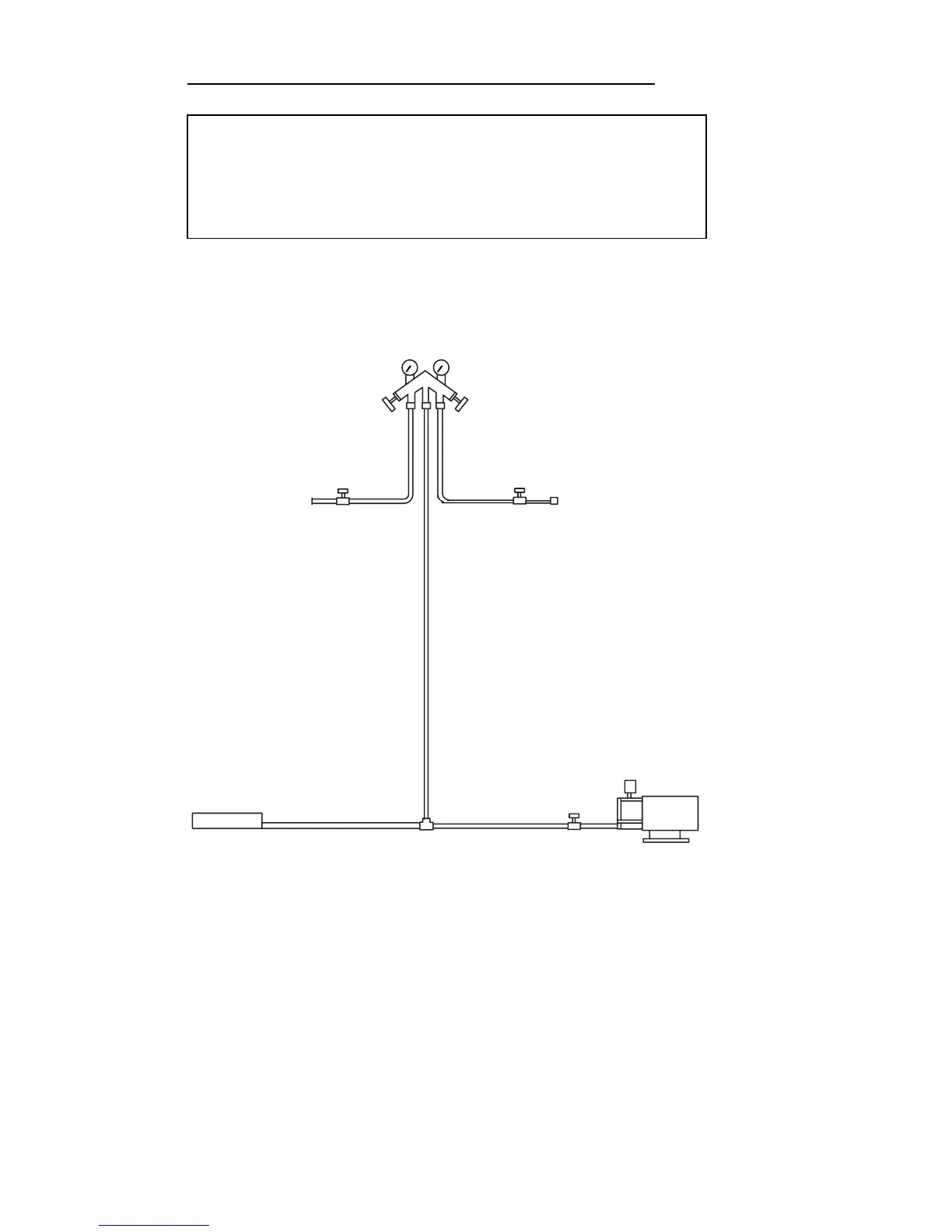

MANIFOLD SET
CLOSED
FRONTSEATED
VACUUM PUMP/
RECOVERY UNIT
OPEN
CLOSED
LOW SIDE
SERVICE
VALVE
HIGH SIDE
SERVICE
VALVE
BACKSEATED
OPEN
CHARGING CONNECTIONS
